APOLLON® is the sophisticated luminaire family for office and general lighting. Glare-free, integrative and a pleasant light atmosphere all thanks to uniform light distribution in a timelessly discreet design. APOLLON®® is designed as a versatile luminaire family. With its recessed, surface-mounted and pendant versions in various sizes, it is suitable for almost all common applications in a building. For harmonious building lighting from a single source.

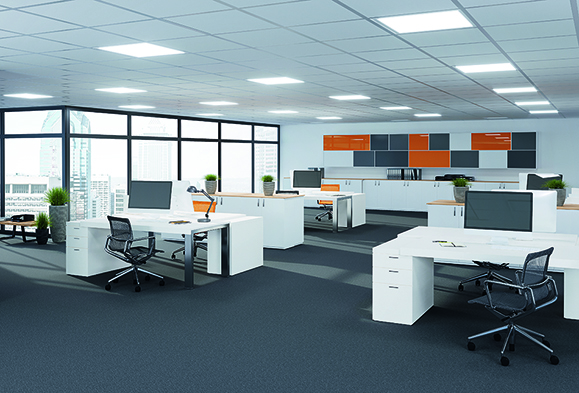

The uniform light distribution of APOLLON® creates good contrasts and conveys a harmonious overall impression with standard-compliant light. Reflected and direct glare is avoided. This increases visual comfort and well-being. The basis is the special microprismatic cover with lateral light injection for homogeneously illuminated light surfaces without visible light points. This provides a quick and easy way of designing with light. The luminaires appear as "light windows" which can be grouped to form light ceilings.

APOLLON® at glance

  • Homogeneous LED light window with uniform light distribution UGR . 19
  • BAP-compatible according to EN 12464-1 for screens with high luminances
  • Efficient and economical replacement for T5 and T8 louvre luminaires
  • Elegant design thanks to flat construction with high-quality white frame
  • Flexibility in assembly (recessed, surface-mounted and suspended versions) and in areas of application (computer workstations, conference rooms and traffic zones)
  • Integrated junction box for quick installation and easy through-wiring
Tunable White
  • Dynamically changeable color temperature (from 2700 – 6500 K)
  • DALI DT8 control unit for highly precise settings
  • High lumen output (4000 lm) across all color temperatures with standard-compliant clear control (UGR ≤ 19 / ≤ 3000 cd/m²)
Multilumen
  • Four manually settable luminous fluxes (from 3380 to 4180 lm) with on/off functionality
  • Optimized, efficient lighting design results without light control
CLO
  • Constant maintenance of initial luminous flux until the end of rated service life (50,000 h)
  • 10 % nominal energy savings over the rated service life (compared to on/off functionality)
  • Optimized sizing of the installation without over-planning (CLO = L100 at 50,000 h)

Dynamic light for HCL

Ideal lighting conditions for human well-being in offices, schools, the health sector and more: The concept of Human Centric Lighting (HCL) enables lighting solutions that can be individually adapted according to the work situation and time of day.  Lighting conditions optimized with Tunable White have positive effects on visual comfort, emotional perception, concentration and sleeping rhythm / recovery—going hand-in-hand with increased well-being and improved motivation during everyday work.

One luminaire, multiple solutions

The innovative Multilumen lighting system enables different lumen packages to be set with just a single luminaire. Thus changes to room use and subsequently different lighting requirements can be effectively solved with high levels of flexibility, e.g. 500 lx for workstations, 300 lx for secondary areas and 100 – 300 lx for building accesses.

Energy-saving efficiency

The CLO (Constant Lumen Output) function integrated in control units enables the reduction in luminous flux of the luminaire to be continuously compensated. From the start of service life, luminous flux is reduced to the level of luminous flux that the luminaire would have at the end of its service life after 50,000 h. Accordingly, the power consumption is initially reduced via dimming and then only continuously increased during running operation via the DALI converter up to the specified power consumption. This protects the LED chip, reduces degradation and shifting of the color locus and saves up to 10 % of electricity costs over the complete service life.

Flexibility and good light

These are central elements of the APOLLON® FThese are central elements of the APOLLON® is the absolutely homogeneous luminous surface. This minimizes reflected glare, light-dark contrasts and shadows. As a recessed luminaire, it offers the possibility of designing with light. The luminaires appear as "light windows" which can be grouped into luminous ceilings. This makes APOLLON® suitable for almost all applications in offices (suitable for monitor workstations with UGR ≤ 19) and in public buildings.

Quick and easy installation

The well thought-out installation concept allows direct replacement of existing luminaires without the need for time-consuming new cabling. At the same time, all variants can be easily through-wired (up to 2.5 mm2) thanks to the integrated connection box. The closed design also minimizes soiling and maintenance costs. The optional accessories allow further types of mounting:

  • Recessed
  • Surface
  • Suspended (in preparation)

Renovation made easy

With its standard dimensions and low connected loads, theAPOLLON® represents a low-maintenance and energy-efficient alternative to conventional louvre luminaires. This allows energy savings of up to 55 % compared to comparable T5 or T8 recessed luminaires. The 625 x 625 variants are particularly suitable when a solution is sought for the direct replacement of four-lamp, square T5 or T8 luminaires (4 x 18 W and 4 x 14 W).
