Article wall and ceiling luminaire

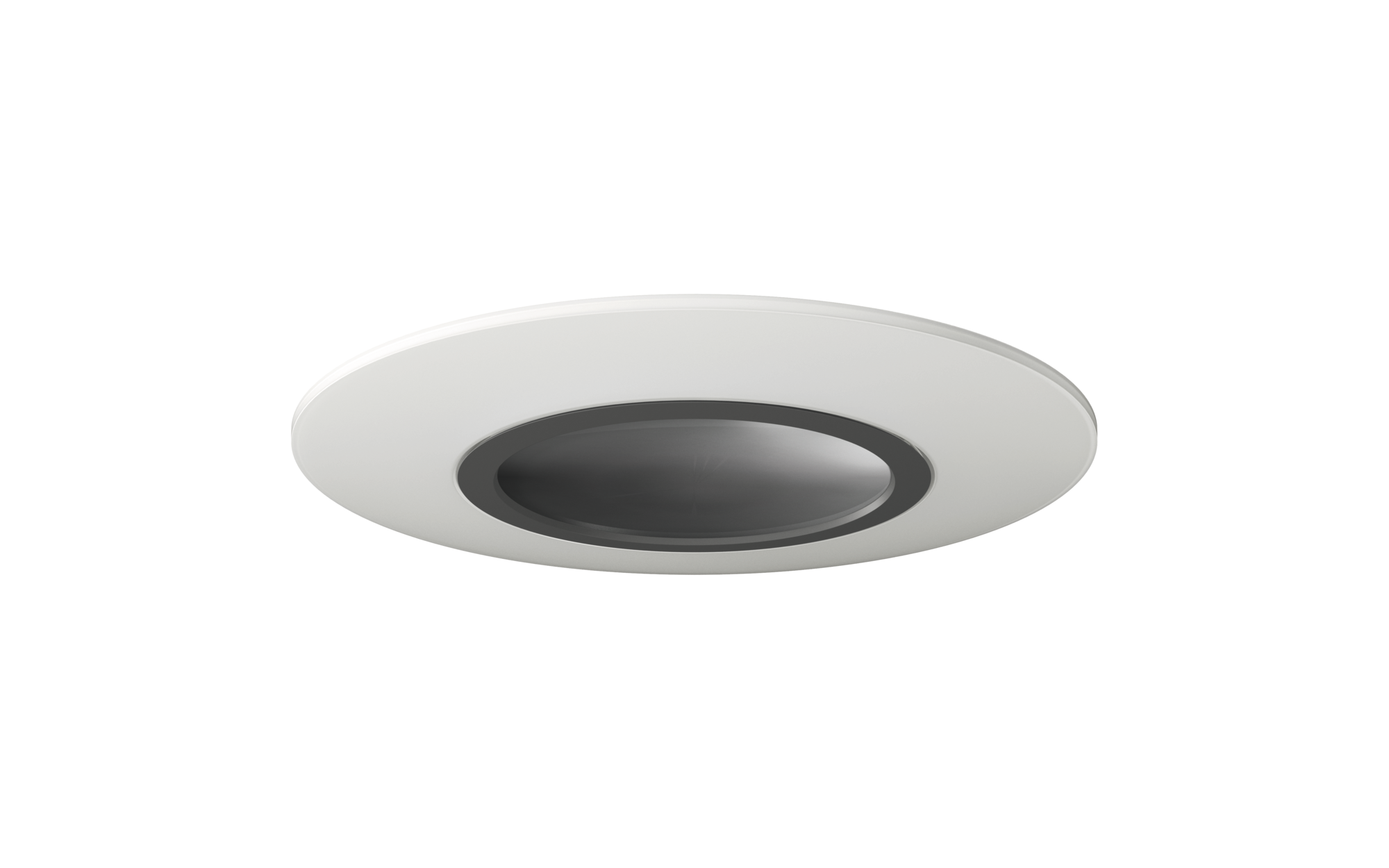

Product name RONDEL Flat
Lamp LED
Rated luminous flux 1800lm
Luminous efficacy 100lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 18W
Service life 50000h (L70/B50) at AT = 25°C
Protection rating IP40
Impact resistance IK03
Weight 1.7kg

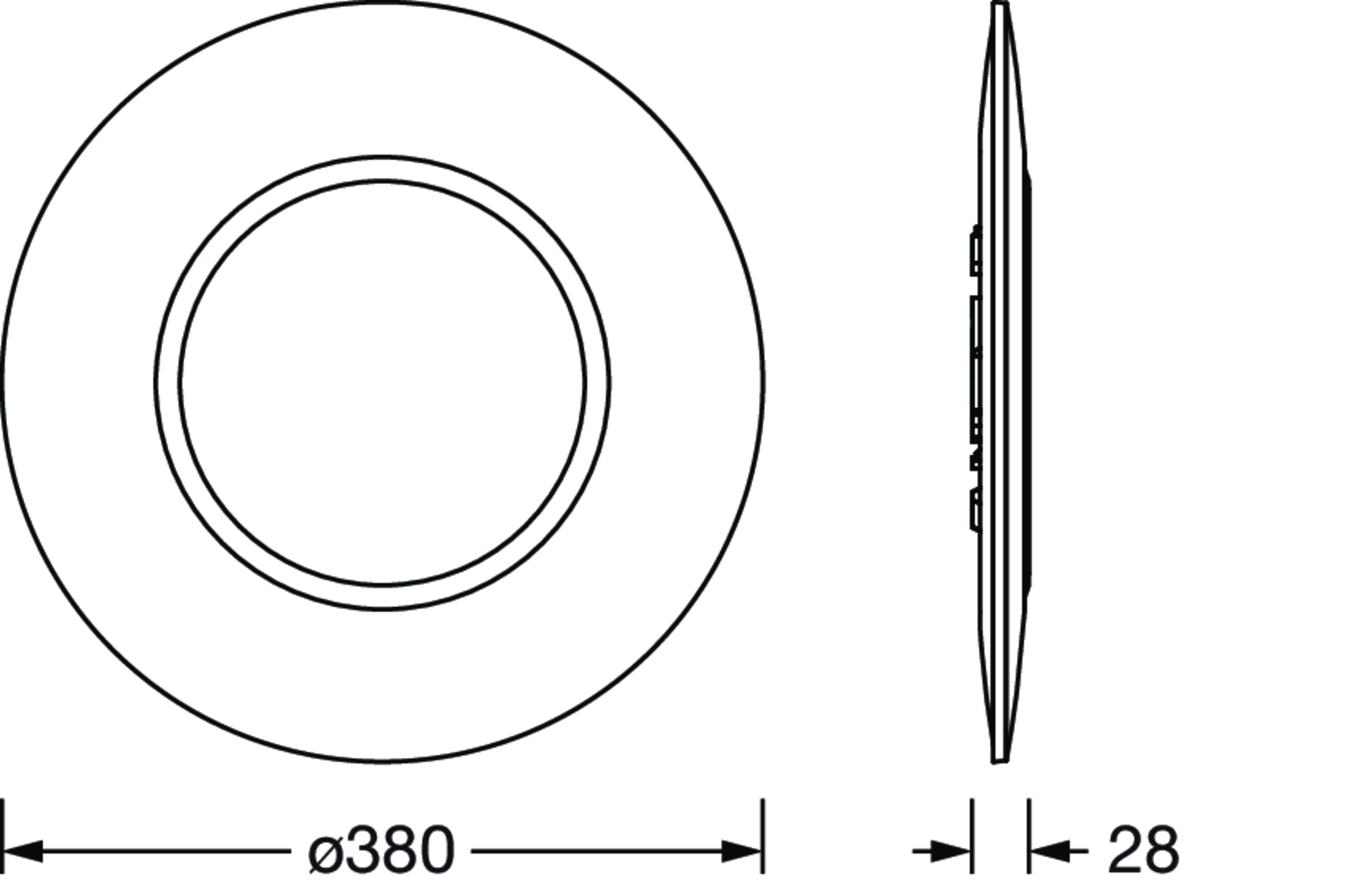

RONDEL Flat, wall and ceiling luminaire, of PC, opal, light emission: direct distribution, installation type: surface-mounted, LED, rated luminous flux: 1.800lm, luminous efficacy: 100lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 2-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 18W, housing, round, of sheet steel, powder-coated, white, diameter: 380mm, height: 28mm, cover, of PC, graphite (RAL 7037), protection rating (complete): IP40, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK03, permissible operating ambient temperature: -20..+40°C, permissible storage temperature: -20..+80°C, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

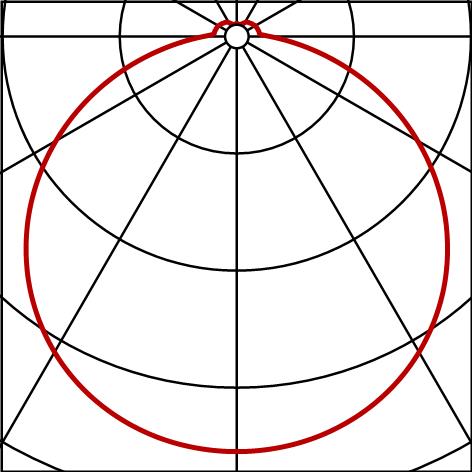

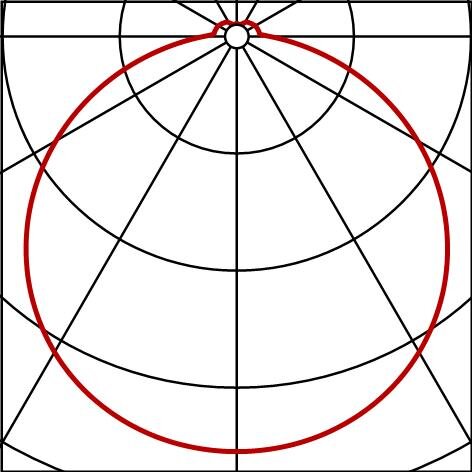

Photometric report / planning data
ROND-Fl
1800lm840,0/1,PC,wh
Lamps: 1x LED 4000K / CRI >= 80
Ordercode: 0MD5307L1840
