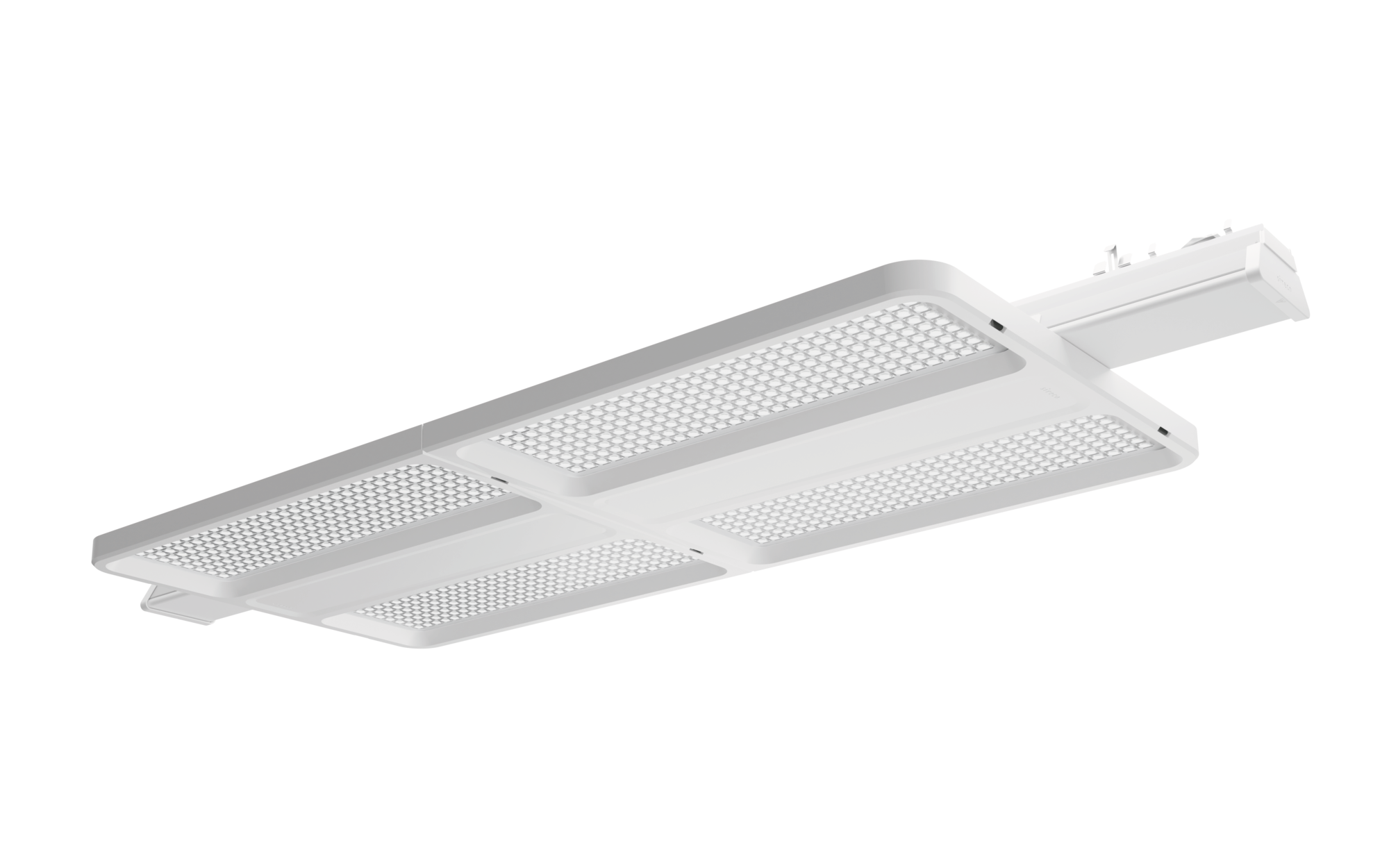

Article high bay luminaire
Product name Highbay 11 for Licross® trunking rail maxi
Lamp LED
Rated luminous flux 29840lm
Luminous efficacy 204lm/W
Colour temperature 5000K
Colour rendering CRI > 80
Rated input power 146.4W
Service life 100000h (L90) at AT = ta max, 100000h (L95) at AT = 25°C
Protection rating IP64
Impact resistance IK06
Weight 7.0kg
high bay luminaire Highbay 11 for Licross® trunking rail maxi; direct symmetric wide distribution, light control with lens of PMMA; UGR ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20); luminous flux: 29.840lm; light colour: 850, colour temperature: 5000K, MacAdam ≤ 2 SDCM (initial), colour rendering: CRI > 80; luminous efficacy: 203,8lm/W; rated service life: 100.000h (L95) at AT= 25°C; control: DALI 2; luminaire connection: plug, 5-pole, with phase selectionmains connection: 230..240V, AC 50/60Hz; connected load: 146,4W; protection rating (complete): IP64; insulation class (complete): insulation class I (protective earthing); protection symbol: D; impact resistance: IK06; certification: CE, ENEC, VDE, UKCA; internal wiring halogen-free; luminaire LABS conformity tested according to VDMA 24364:2018-05; Suitable for use in the food industry according to the specifications of IFS-Food, HACCP and/or BRC; housing frame of high-performance plastic PA6, matt traffic white (RAL 9016); cover of PMMA; fixing on rail side of steel, galvanised, white; blank cover of PC/ABS, traffic white (RAL 9016); dimension (LxWxH): 1.250 x 442 x 71mm; permissible operating ambient temperature: -45..+55°C (reducing of maximum allowable ambient temperature of 5°C with ceiling mounting); packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

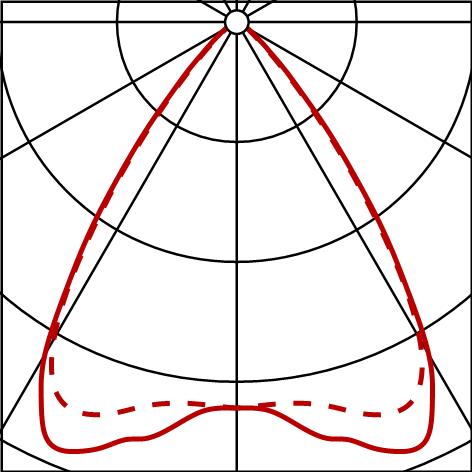

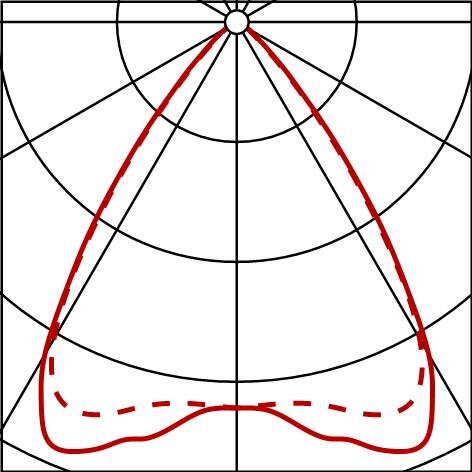

Photometric report / planning data
HB11/Lic-mx
wd,29840lm850,DA2
Lamps: 1x LED
Order No.: 51HN12DB5MLA
