51MQ12W72414

Key data

Product type office luminaire
Product name Apollon 21 square
Order No. 51MQ12W72414

Component 1

Lighting technology
Cover micro prismatic cover

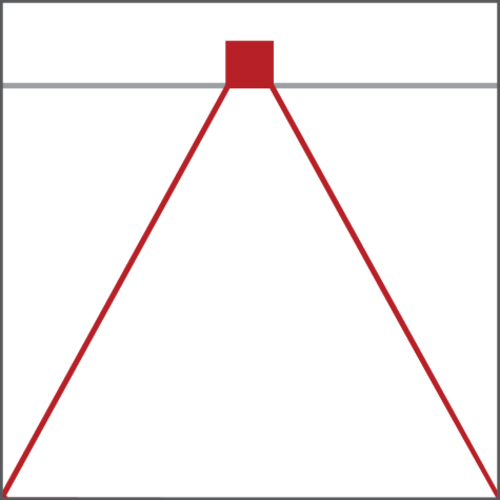

Beam angle wide distribution, 90°
Symmetry symmetric

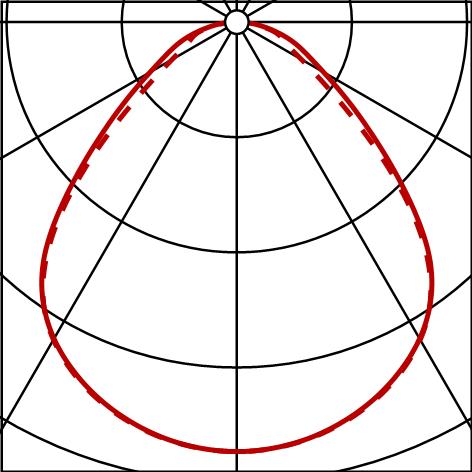

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 4200lm
Luminous efficacy 180lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 23W
Supplement with through-wiring, for emergency light function, for central battery installations according to DIN EN 60598-2-22

Operating device
Control ON/OFF

Component 2

Operating device
Switching method suitable for self-contained emergency lighting element 59MQE002602A with integrated self-test function according to EN 60598-2-22

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP50
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+45°C
Standard EN 60598-2-22
Certification, designation CE, ENEC

Material, Colour

housing aluminium, coated, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)
housing upper side sheet steel, galvanised
Cover micro prismatic cover of PMMA

Mounting

Mounting method, mounting location recessed, lay-in mounting, in the ceiling
Arrangement single arrangement
Supplement please order the required mounting accessories for ceiling recessing separately

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

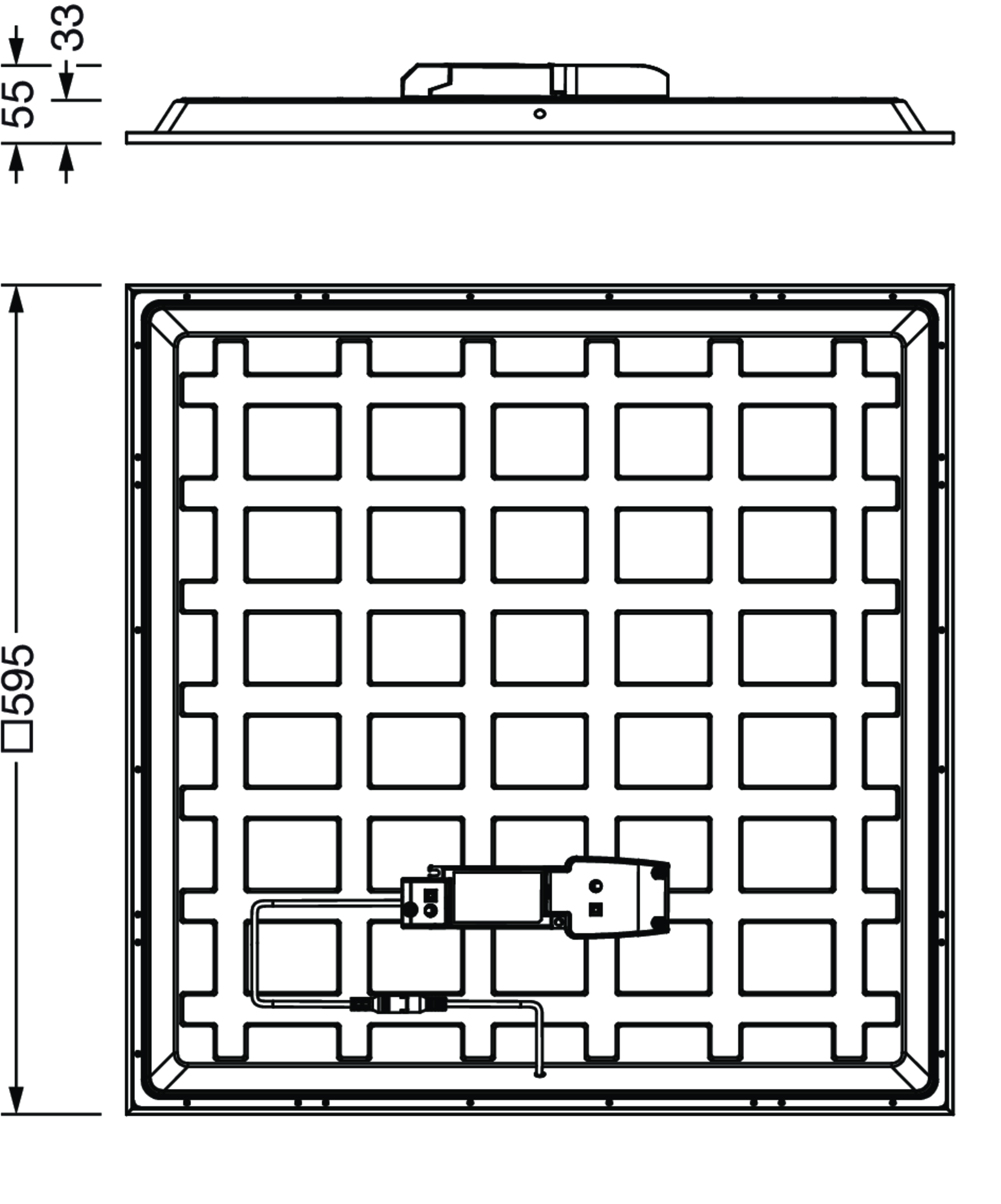

Dimensions, Weight

Length 595mm
Width 595mm
Height 55mm
Recess depth 180mm
Weight 1.8kg

Service life

Rated service life 100000h (L80/B50) at AT = 25°C, 50000h (L90/B50) at AT = 25°C
