Order No.: 5LZ935100A
Remember articleRemember article

Article lighting management components

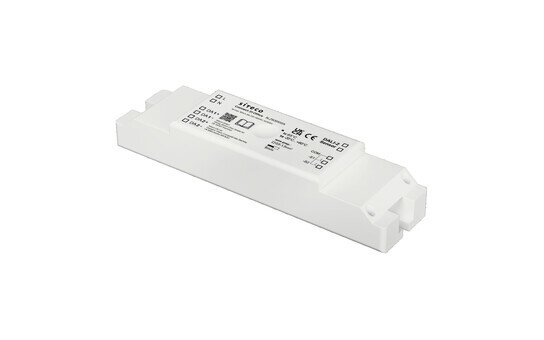

Product name SITECO Connect 31 Office
Protection rating IP20
Weight 0.1kg

SITECO Connect 31 Officecontroller, master, local control - self-sufficient standalone sensors, dimmable, installation type: recessed, installation location: in the ceiling, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, voltage: 220..240V, voltage type: AC, 2 x push button input, 2 x DALI, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Office
Product type lighting management components
Product name SITECO Connect 31 Office
Order No. 5LZ935100A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+60°C
Certification, designation CE

Material, Colour

housing plastic, pure white (RAL 9010)
Colour specification pure white (RAL 9010)

Mounting

Mounting method, mounting location recessed, in the ceiling
Supplement only suitable for use in indoor areas

Electrical connection

Connection terminal, 2-pole, max. 1.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

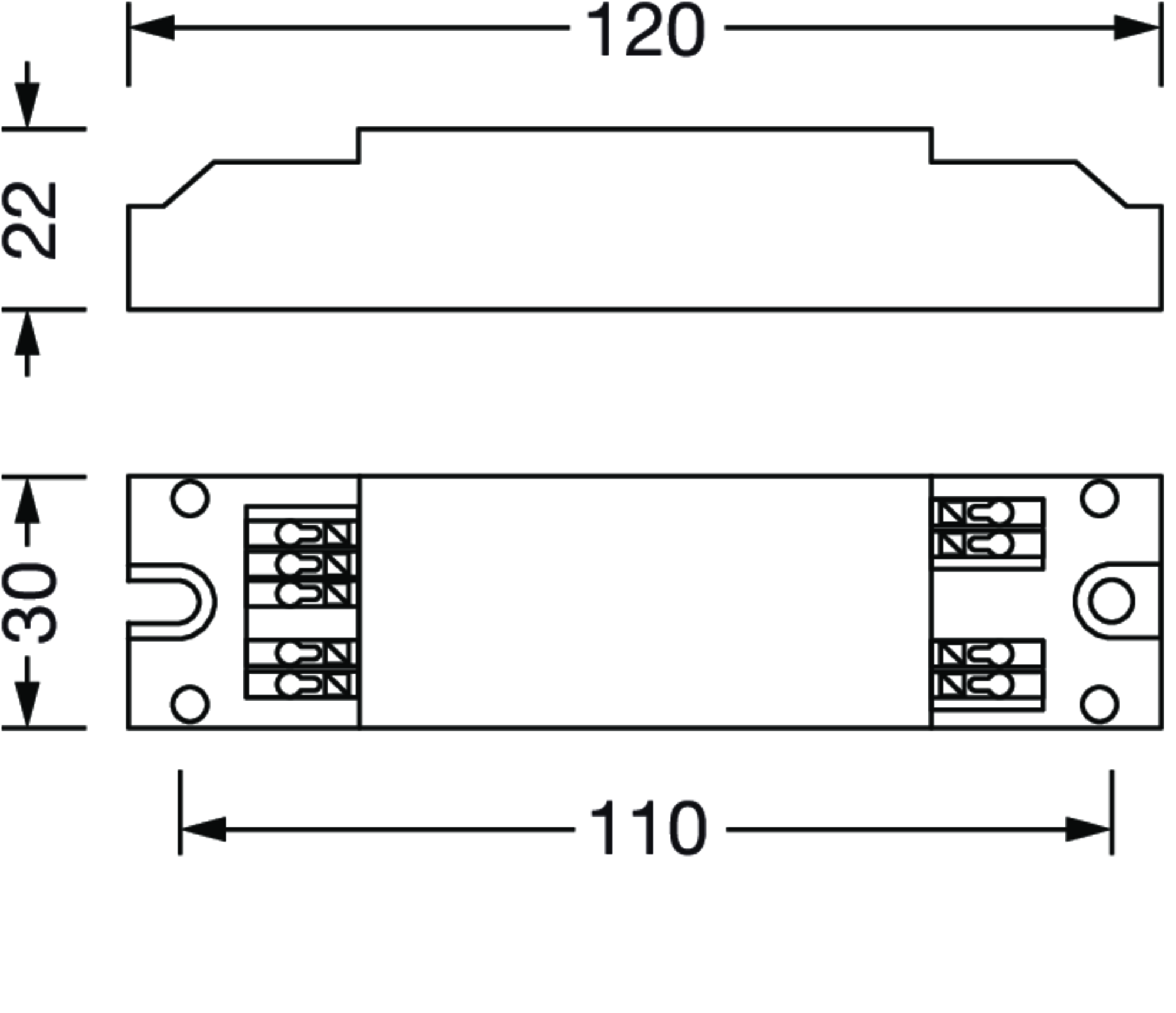

Dimensions, Weight

Length 108mm
Width 30mm
Height 21mm
Weight 0.1kg

Inputs

2x push button input
Connection screw terminal, 2-pole, max. 1.5mm²
Feature zero-potential

Outputs

2x DALI
Connection screw terminal, 2-pole, max. 1.5mm²
System current DALI current line 1 60mA, line 2 30mA
Feature two DALI lines, averaging with connected light sensors, connection of DALI2 certified sensors, DALI master function, broadcast addressing, max. 45 ECGs, DALI line 1, master function, broadcast addressing, max. 30 DALI ECGs, DALI line 2, master function, broadcast addressing, max. 15 DALI ECGs
