Article floodlight

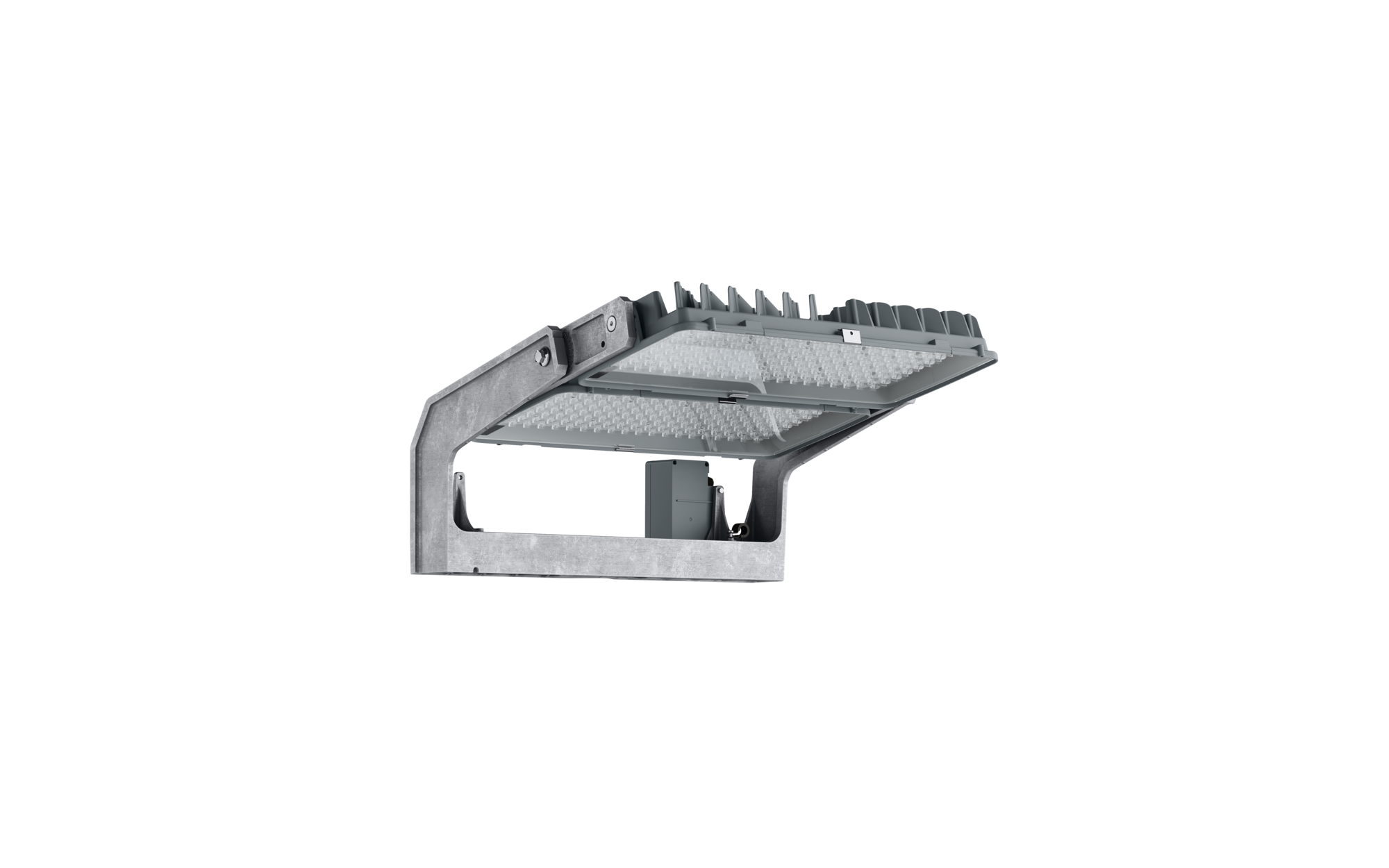

Product name Floodlight FL 11 maxi Remote
Lamp LED
Rated luminous flux 111350lm
Luminous efficacy 103lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Rated input power 1083W
Service life 10000h (L96/B10) at AT = 10°C, 75000h (L80/B10) at AT = 10°C
Protection rating IP66
Weight 24.6kg

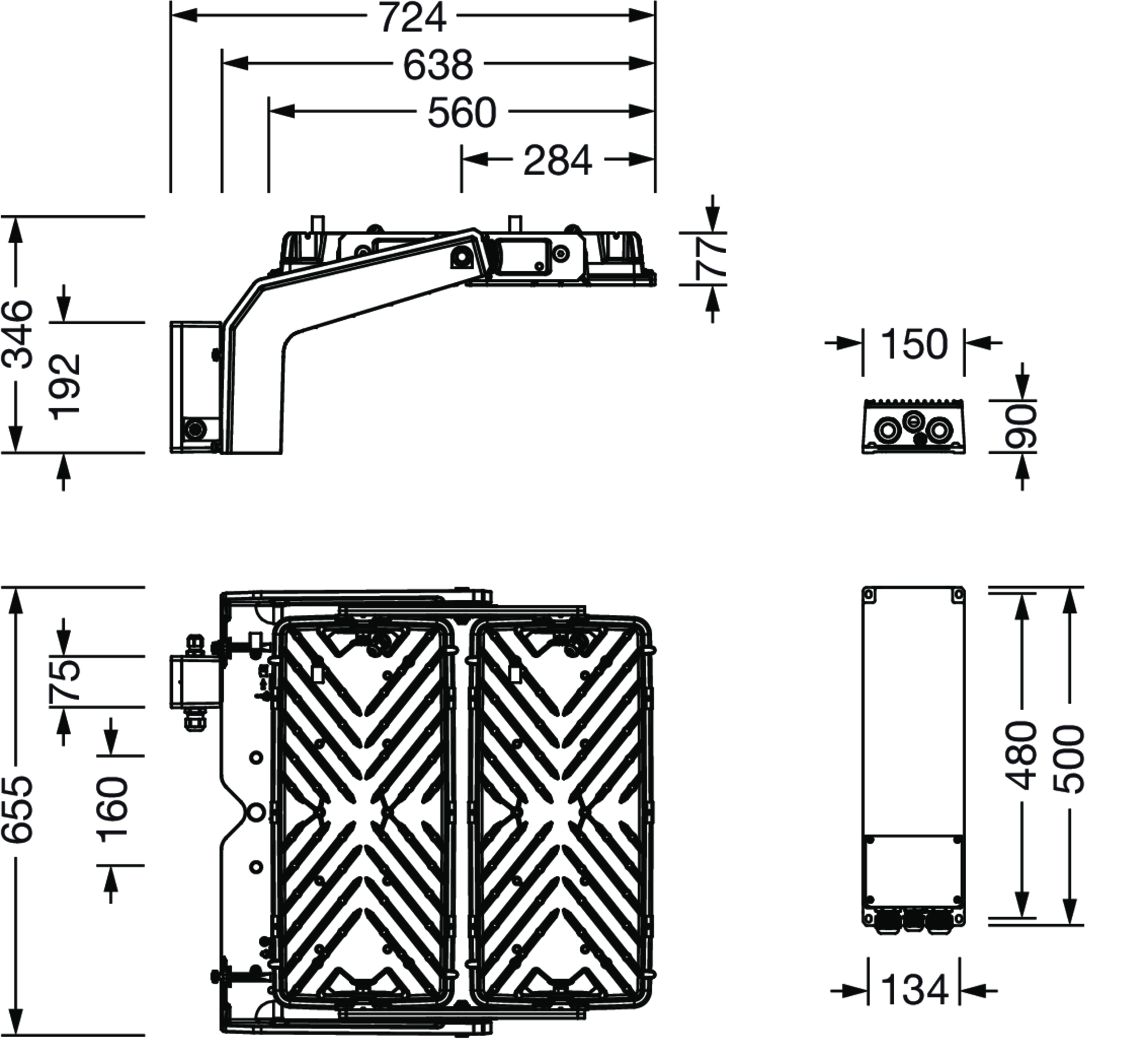

Floodlight FL 11 maxi Remote floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: PL33TBLC, asymmetric direct distribution, LED; colour temperature: 3000K, rated luminous flux: 111.350lm, colour rendering: CRI > 70, light colour: 730; luminous efficacy: 103lm/W; brightness control: DMX+RDM; with terminal, 8-pole, max. 2.5mm², mains connection: 220..240V/380..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, LED service life up to 100,000h L90. Typical operating time: 1000h per year., ECG replaceable separately, LED unit replaceable without ESD environment, dustproof LED module, dimming range 10..100%; 1083W floodlight with 2x LED unit of diecast aluminium, natural; length: 713mm / width: 651mm / height: 338mm; mounting bracket, of diecast aluminium, uncoated, natural, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE; ball protection: ball impact resistant, only for outdoor installations in the designated locations, permissible operating ambient temperature: -40..+30°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece
