Article ceiling luminaire
Product name CL 31 Ceiling
Lamp LED
Rated luminous flux 1500lm
Luminous efficacy 100lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 15W
Service life 65000h (L80/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK09
Weight 2.0kg

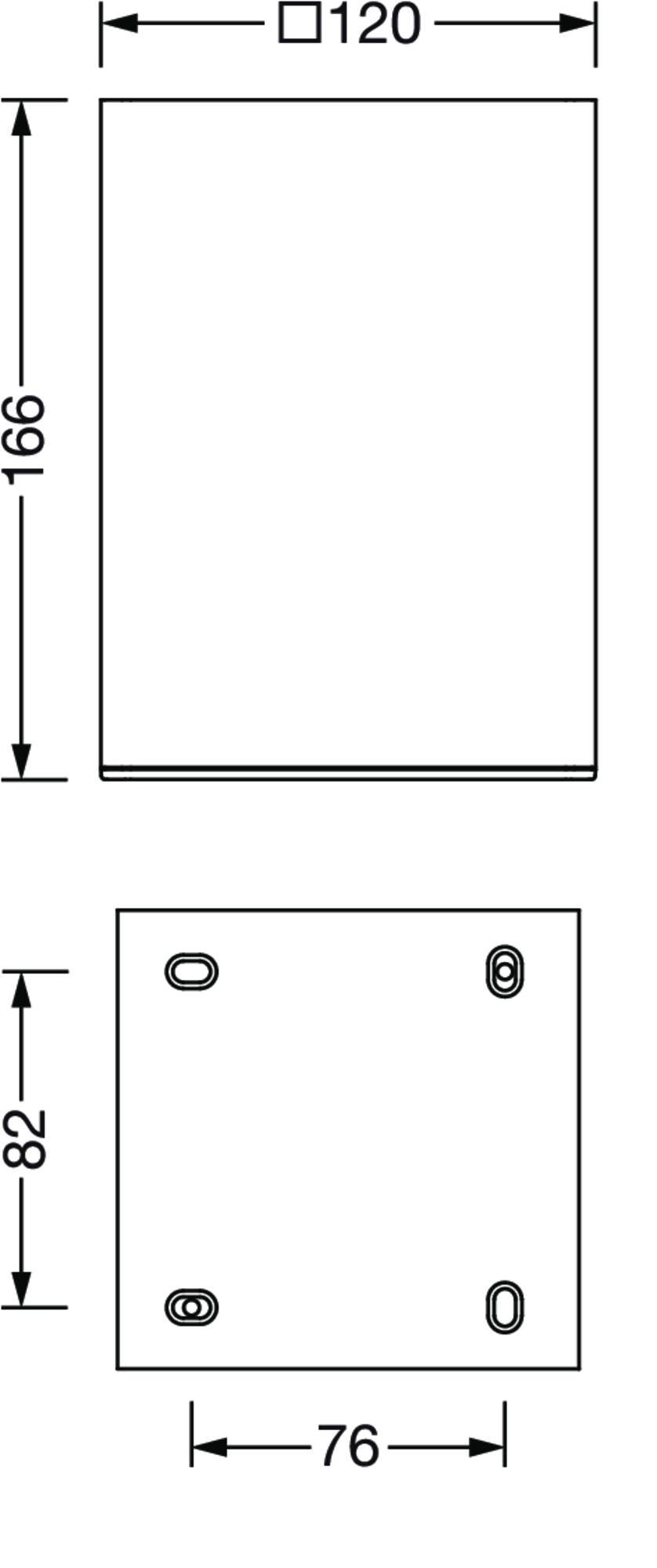

CL 31 Ceiling, ceiling luminaire, primary light control with reflector, of aluminium, primary optical cover: cover panel, of glass, transparent, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 1.500lm, luminous efficacy: 100lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI, with terminal, 5-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 15W, luminaire housing, of aluminium, powder-coated, Siteco® metallic grey, length: 120mm, width: 120mm, height: 165mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, impact resistance: IK09, permissible operating ambient temperature for outdoor applications: -20..+50°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

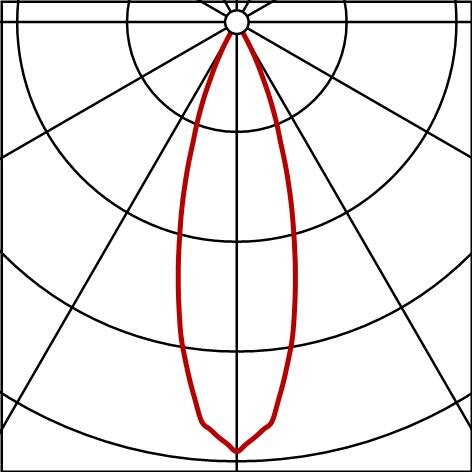

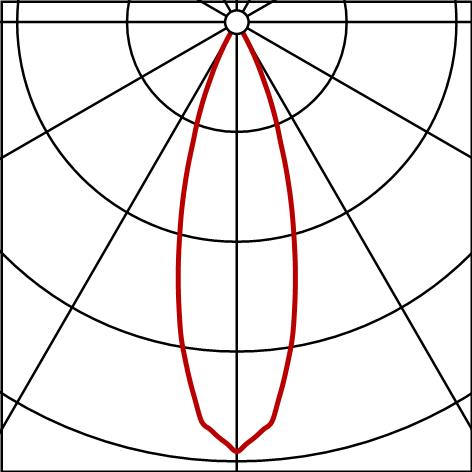

Photometric report / planning data
CL31Ceiling
1500lm830,DA
Lamps: 1x LED
Order No.: 5CL613603
