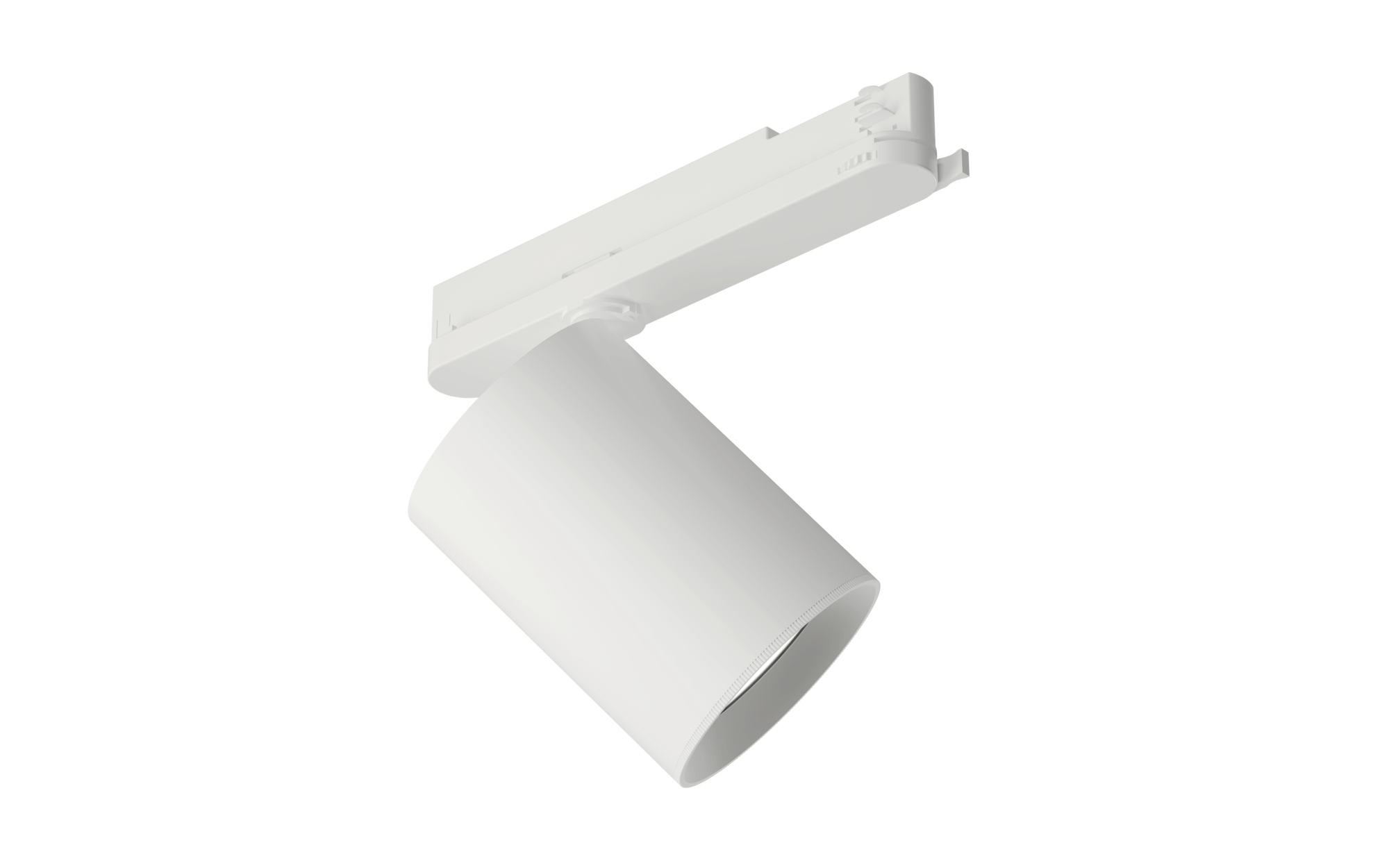

Spot 11, 60°, ON/OFF Multilumen, Ø105, traffic white (RAL 9016)

Close
Order No.: 51SD15MBD5A
Remember articleRemember article

Article directional spotlight
Product name Spot 11
Lamp LED
Rated luminous flux 5870lm
Luminous efficacy 152lm/W
Colour temperature 4000K
Colour rendering CRI > 90
Rated input power 38.5W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 1.1kg

Spot 11, directional spotlight, light control with lens, of PMMA, LED rated luminous flux: 5.870lm, light colour: 940, control gear: ECG Multilumen, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, of aluminium, traffic white (RAL 9016), length: 213mm, diameter: 105mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type directional spotlight
Product name Spot 11
Order No. 51SD15MBD5A

Lighting technology

Light control lens of PMMA
Beam angle 60°
Symmetry symmetric
UGR viewing direction along longitudinal luminaire axis ≤ 16
UGR viewing direction along lateral luminaire axis ≤ 16

Lamps

Lamps with LED
Rated luminous flux 5870lm
Luminous efficacy 152lm/W
Colour temperature 4000K
Colour rendering index CRI > 90
Light colour 940
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 38.5W

Operating device

Control gear ECG Multilumen
Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

Colour specification traffic white (RAL 9016)

Mounting

Mounting method, mounting location slip-in mounting, in a 3-phase track

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

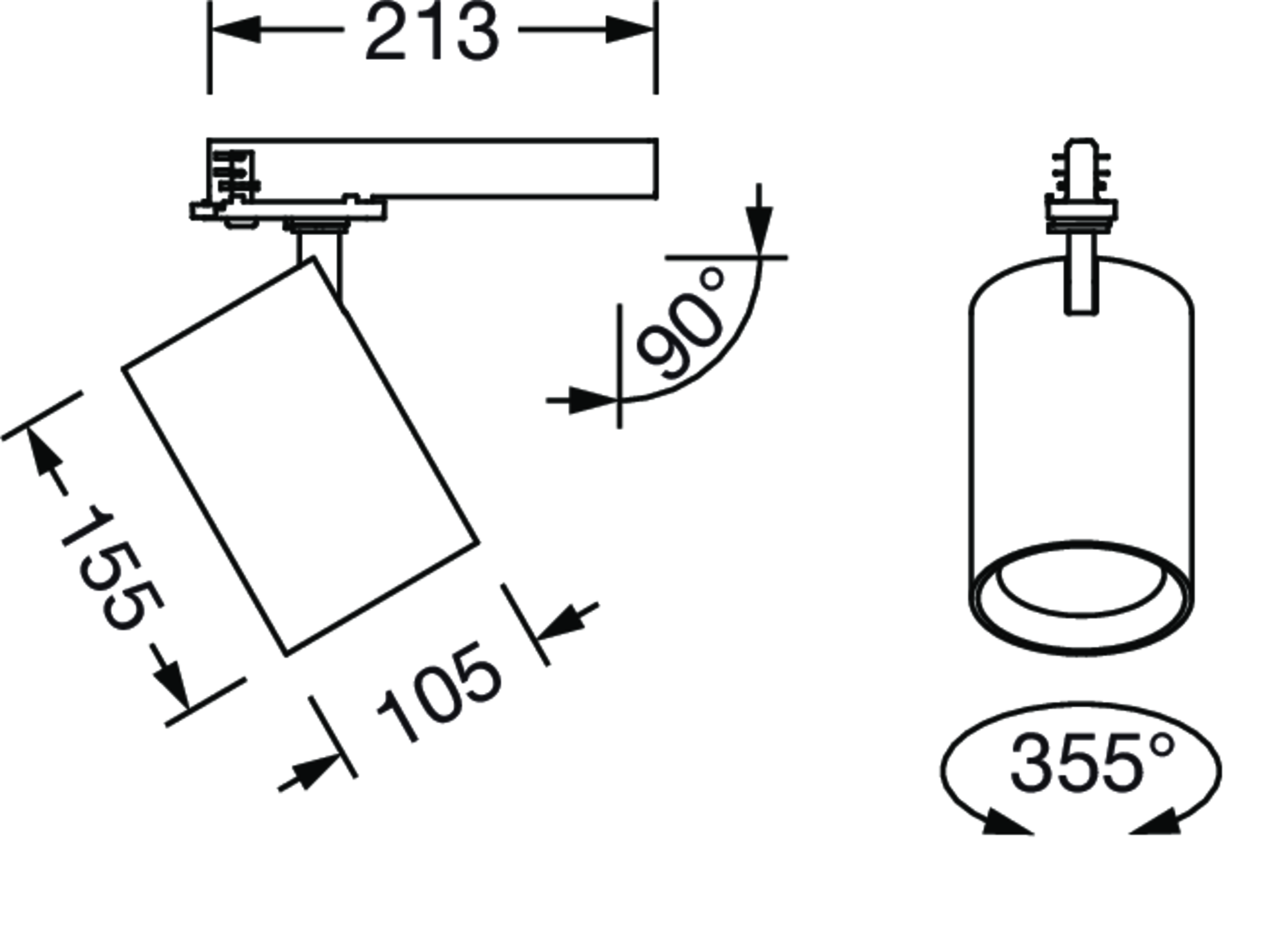

Dimensions, Weight

Length 213mm
Diameter 105mm
Weight 1.1kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Spot 11

Order No.
51SD15MBD5A

Light control
lens of PMMA

Beam angle
60°

Symmetry
symmetric

UGR viewing direction along longitudinal luminaire axis
≤ 16

UGR viewing direction along lateral luminaire axis
≤ 16

Lamps
with LED

Rated luminous flux
5870lm

Luminous efficacy
152lm/W

Colour temperature
4000K

Colour rendering index
CRI > 90

Light colour
940

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
38.5W

Control gear
ECG Multilumen

Control
ON/OFF Multilumen

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
-20..+40°C

Certification, designation
CE

Colour specification
traffic white (RAL 9016)

Mounting method, mounting location
slip-in mounting, in a 3-phase track

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Length
213mm

Diameter
105mm

Weight
1.1kg

Rated service life
50000h (L80/B50) at AT = 25°C

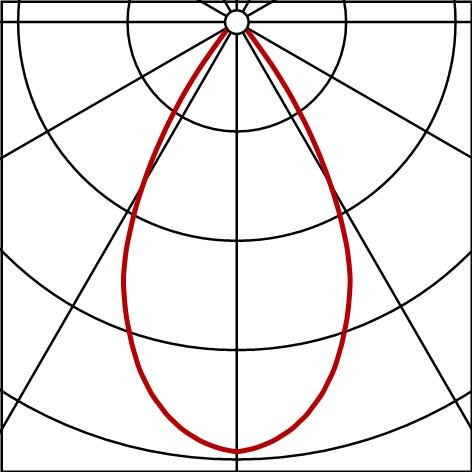

Photometric report / planning data

Spot11
60°,5870lm940,ML,105,wh
Lamps: 1x LED
Order No.: 51SD15MBD5A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
