Spot 31, 28°, ON/OFF Multilumen, Ø90, jet black (RAL 9005)

Close
Ordercode: 51SF33MAB4B
Remember productRemember product

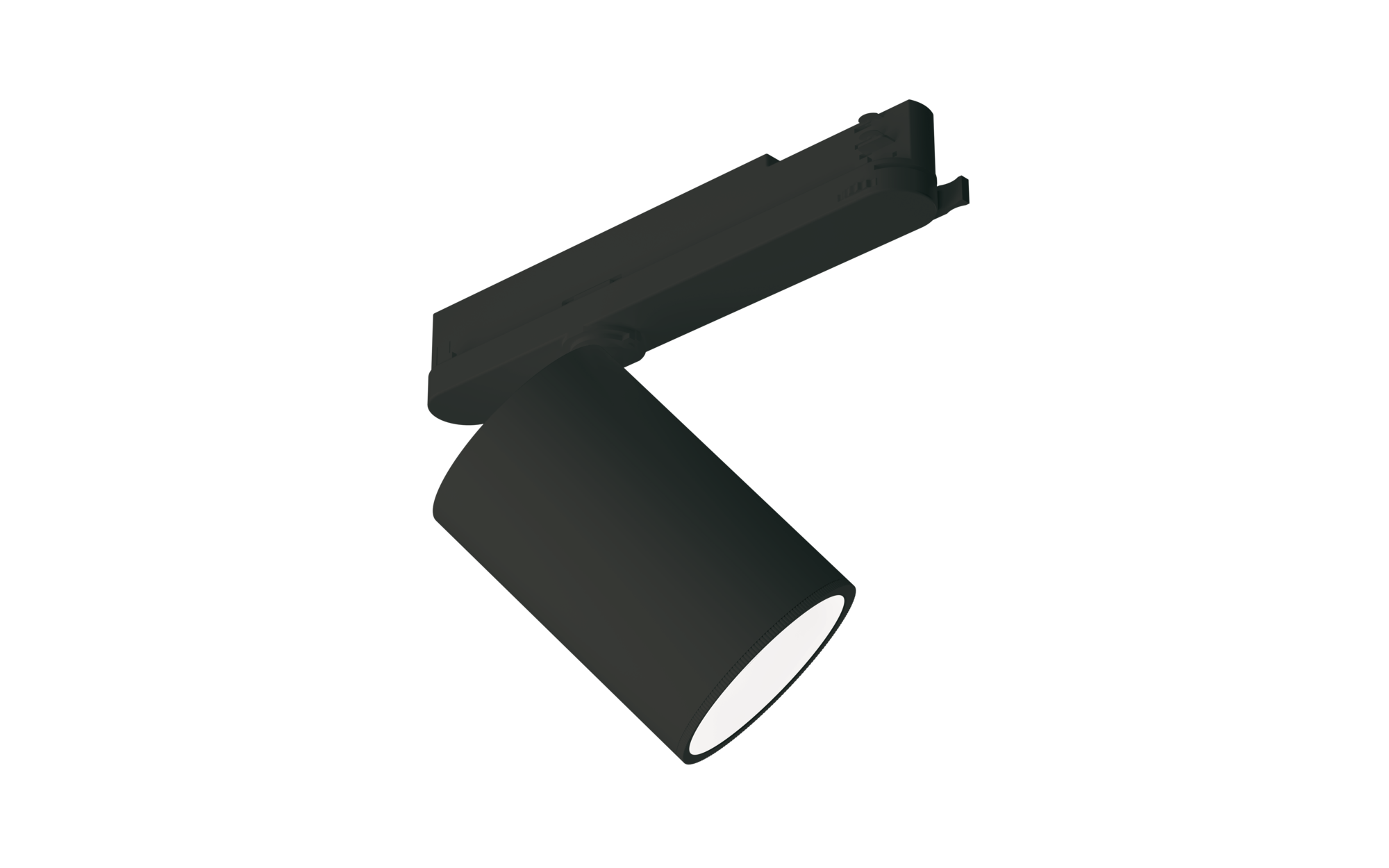

Article directional spotlight
Product name Spot 31
Lamp LED
Rated luminous flux 4830lm
Luminous efficacy 121lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 40W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.8kg

Spot 31, directional spotlight, light control with lens, of PMMA, LED rated luminous flux: 4.830lm, light colour: 930, control gear: ECG Multilumen, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, of aluminium, jet black (RAL 9005), length: 213mm, diameter: 90mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type directional spotlight
Product name Spot 31
Order No. 51SF33MAB4B

Lighting technology

Light control lens of PMMA
Beam angle 28°
Symmetry symmetric
UGR viewing direction along longitudinal luminaire axis ≤ 16
UGR viewing direction along lateral luminaire axis ≤ 16

Lamps

Lamps with LED
Rated luminous flux 4830lm
Luminous efficacy 121lm/W
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 40W

Operating device

Control gear ECG Multilumen
Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Temperature range (operation) -20..+40°C
Certification, designation CE

Material, Colour

Colour specification jet black (RAL 9005)

Mounting

Mounting method, mounting location slip-in mounting, in a 3-phase track

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

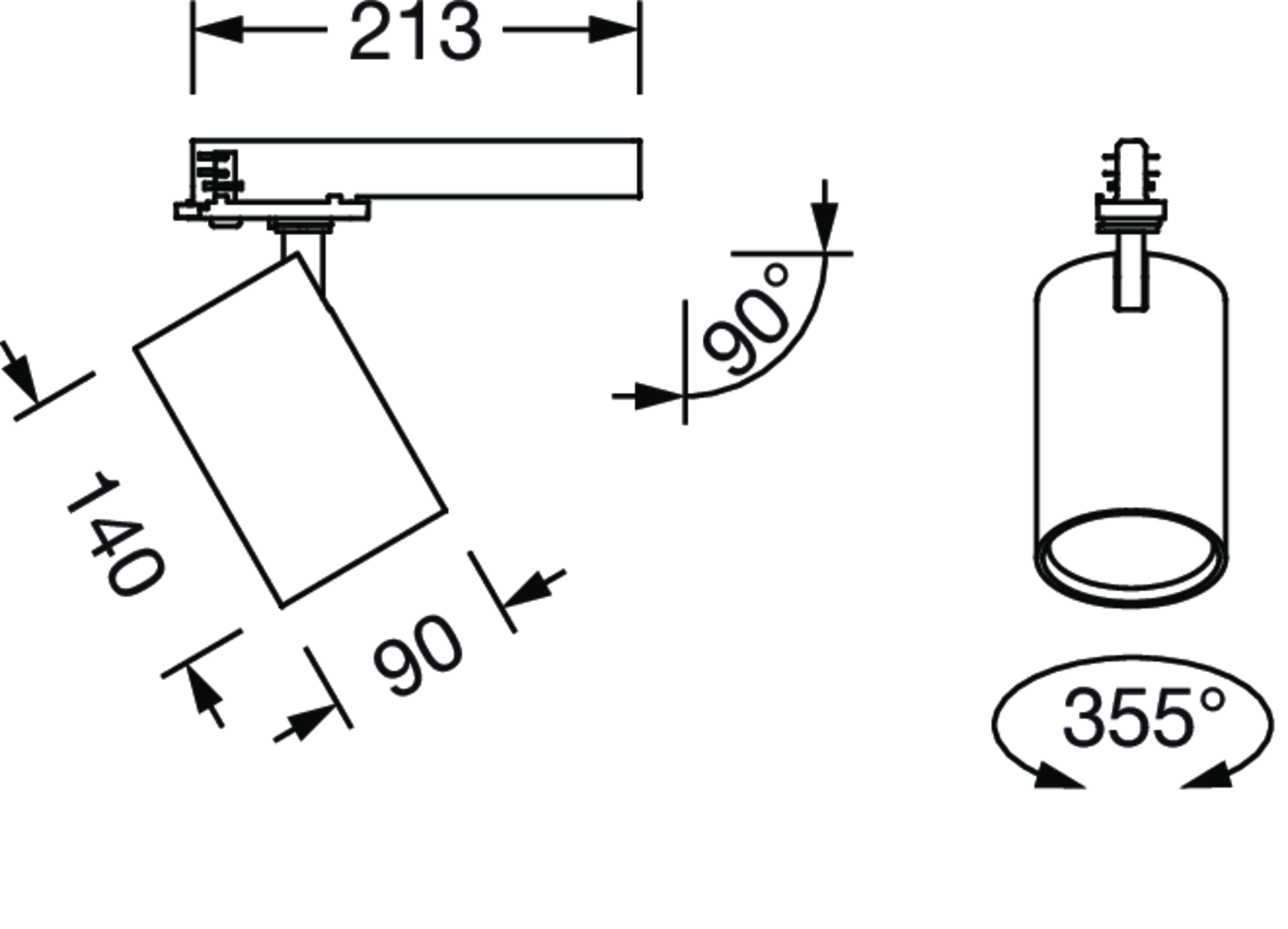

Dimensions, Weight

Length 213mm
Diameter 90mm
Weight 0.8kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Spot 31

Order No.
51SF33MAB4B

Light control
lens of PMMA

Beam angle
28°

Symmetry
symmetric

UGR viewing direction along longitudinal luminaire axis
≤ 16

UGR viewing direction along lateral luminaire axis
≤ 16

Lamps
with LED

Rated luminous flux
4830lm

Luminous efficacy
121lm/W

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
40W

Control gear
ECG Multilumen

Control
ON/OFF Multilumen

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Temperature range (operation)
-20..+40°C

Certification, designation
CE

Colour specification
jet black (RAL 9005)

Mounting method, mounting location
slip-in mounting, in a 3-phase track

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Length
213mm

Diameter
90mm

Weight
0.8kg

Rated service life
50000h (L80/B50) at AT = 25°C

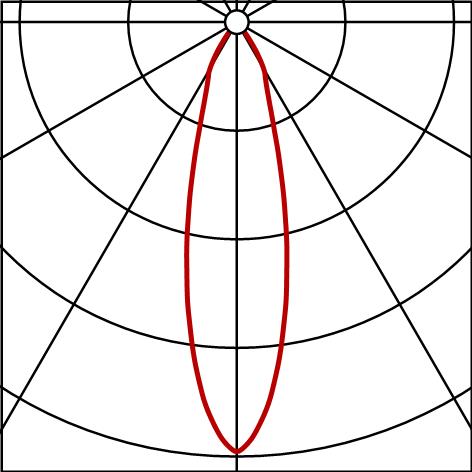

Photometric report / planning data

Spot31
28°,4830lm930,ML,90,bk
Lamps: 1x LED
Ordercode: 51SF33MAB4B

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
