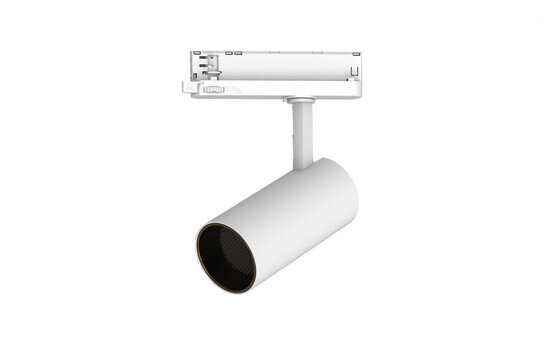

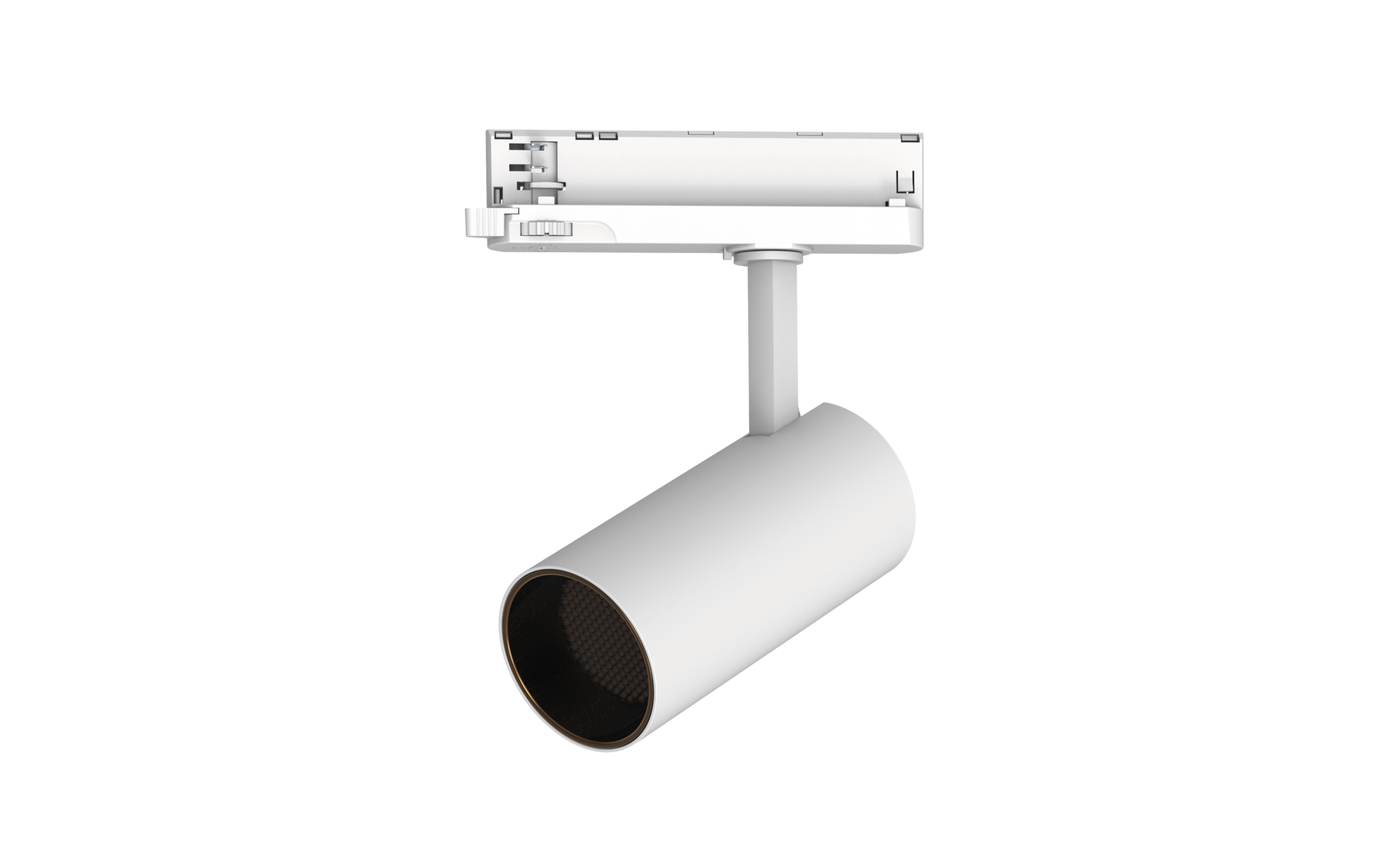

Spot 31 Slim, 26°, honeycomb louvre, ON/OFF, Ø70, traffic white (RAL 9016)

Close
Order No.: 51SF117FB3B
Remember articleRemember article

Article directional spotlight
Product name Spot 31 Slim
Lamp LED
Rated luminous flux 2200lm
Luminous efficacy 96lm/W
Colour temperature 3000K
Colour rendering CRI > 90
Rated input power 23W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.8kg

Spot 31 Slim, directional spotlight, light control with reflector, of aluminium, anti glare with honeycomb louvre, LED rated luminous flux: 2.200lm, light colour: 930, control gear: ECG, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, housing, of aluminium, traffic white (RAL 9016), diameter: 70mm, adapter, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type directional spotlight
Product name Spot 31 Slim
Order No. 51SF117FB3B

Lighting technology

Light control reflector of aluminium
Glare reduction honeycomb louvre
Beam angle 26°
Symmetry symmetric
UGR viewing direction along longitudinal luminaire axis ≤ 25
UGR viewing direction along lateral luminaire axis ≤ 25

Lamps

Lamps with LED
Rated luminous flux 2200lm
Luminous efficacy 96lm/W
Colour temperature 3000K
Colour rendering index CRI > 90
Light colour 930
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 23W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Certification, designation CE

Material, Colour

housing aluminium, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)
adapter plastic

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

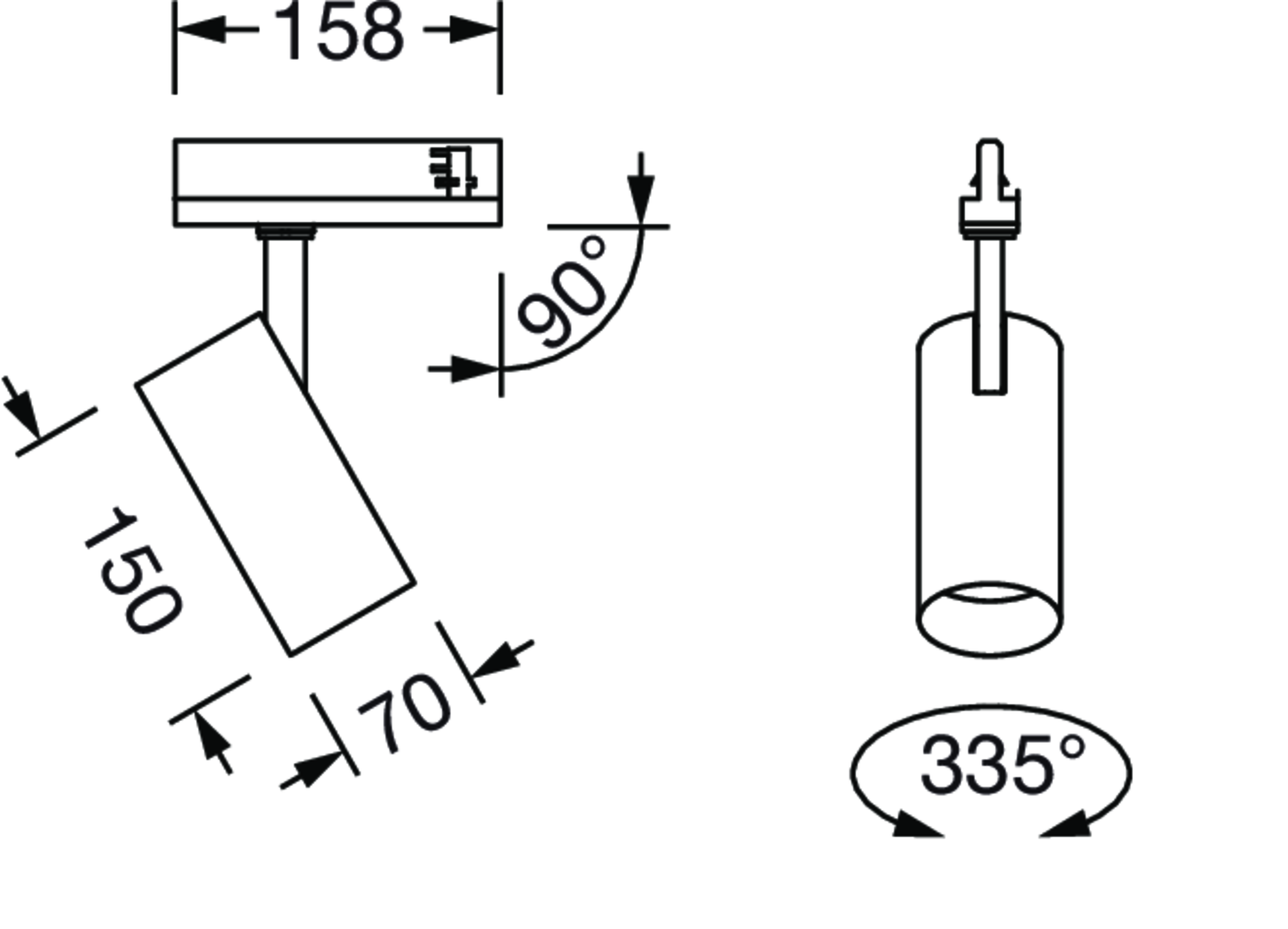

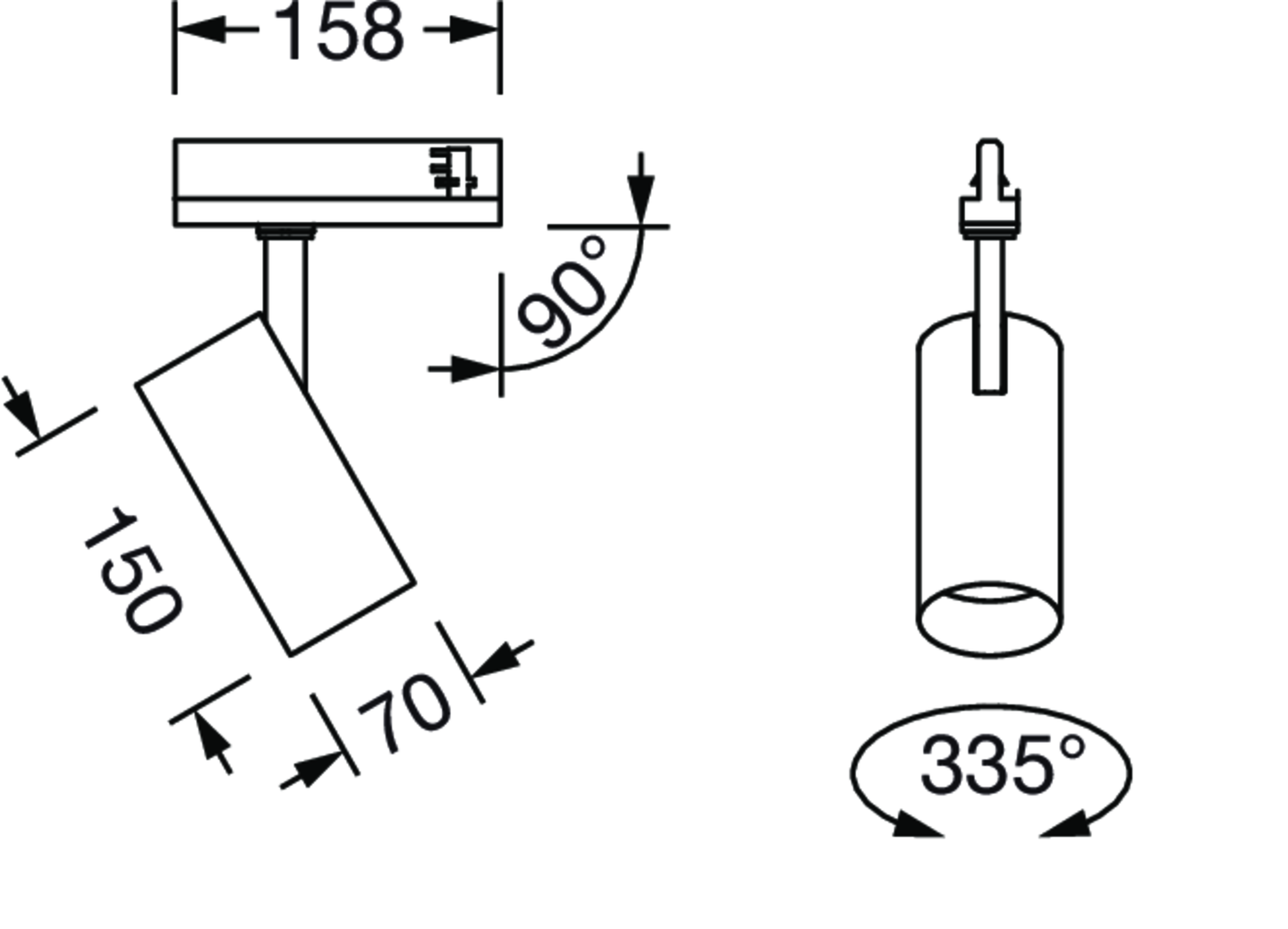

Dimensions, Weight

Diameter 70mm
Weight 0.8kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Spot 31 Slim

Order No.
51SF117FB3B

Light control
reflector of aluminium

Glare reduction
honeycomb louvre

Beam angle
26°

Symmetry
symmetric

UGR viewing direction along longitudinal luminaire axis
≤ 25

UGR viewing direction along lateral luminaire axis
≤ 25

Lamps
with LED

Rated luminous flux
2200lm

Luminous efficacy
96lm/W

Colour temperature
3000K

Colour rendering index
CRI > 90

Light colour
930

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
23W

Control gear
ECG

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Certification, designation
CE

housing
aluminium, traffic white (RAL 9016)

Colour specification
traffic white (RAL 9016)

adapter
plastic

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Diameter
70mm

Weight
0.8kg

Rated service life
50000h (L80/B50) at AT = 25°C

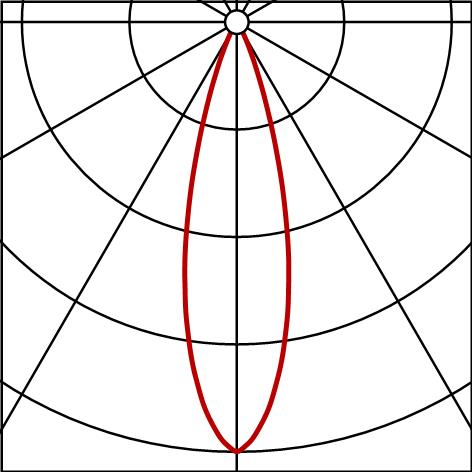

Photometric report / planning data

Spot31Sl
26°,2200lm930,0/1,wh
Lamps: 1x LED
Order No.: 51SF117FB3B

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
