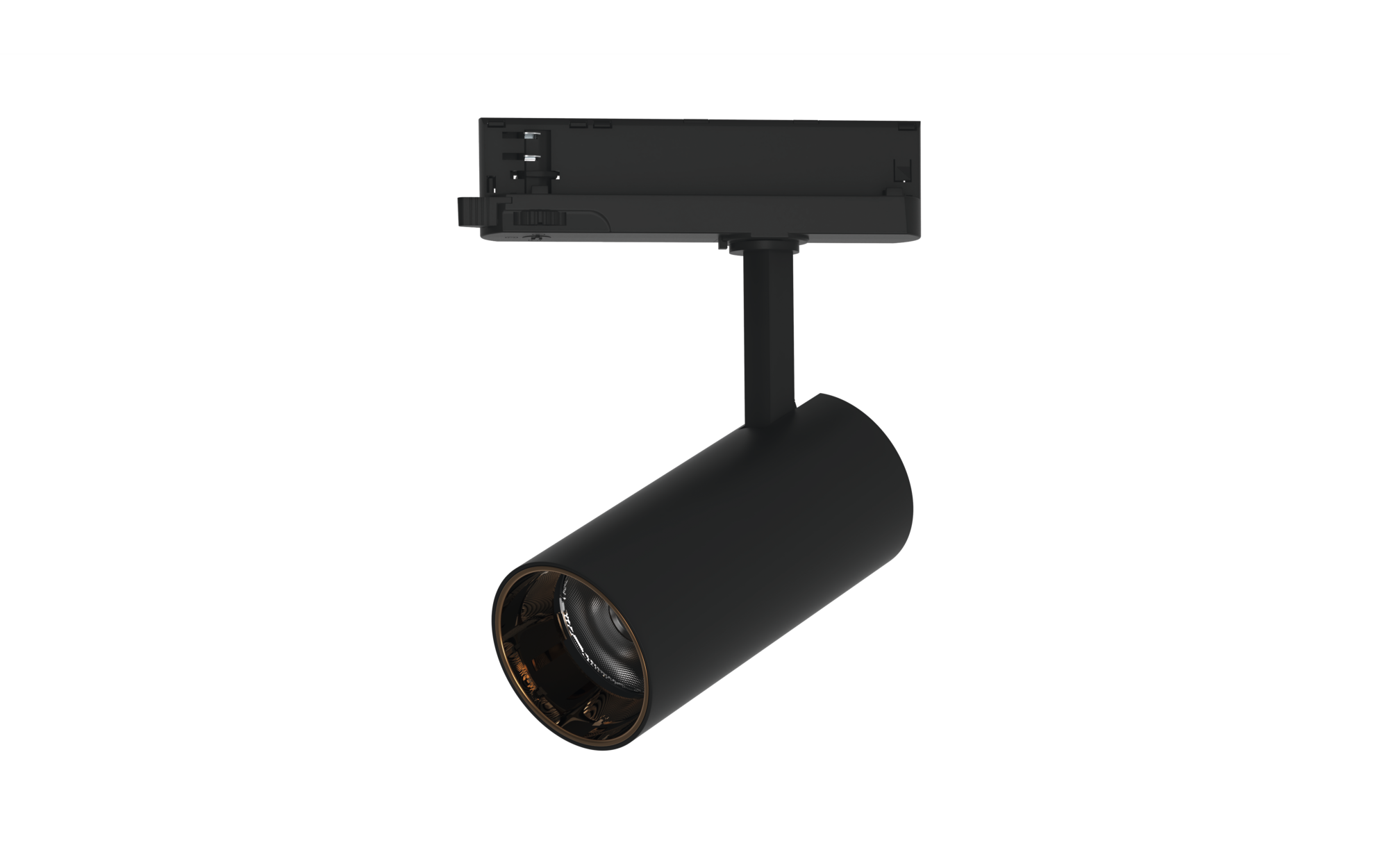

Spot 31 Slim, 36°, ON/OFF, Ø70, jet black (RAL 9005)

Close
Ordercode: 51SF337FA2B
Remember productRemember product

Article directional spotlight
Product name Spot 31 Slim
Lamp LED
Rated luminous flux 2150lm
Luminous efficacy 126lm/W
Colour temperature 2700K
Colour rendering CRI > 90
Rated input power 17W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 0.7kg

Spot 31 Slim, directional spotlight, light control with reflector, of aluminium, LED rated luminous flux: 2.150lm, light colour: 927, control gear: ECG, with 3-phase adapter, mains connection: 220..240V, AC, 50/60Hz, housing, of aluminium, jet black (RAL 9005), diameter: 70mm, adapter, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type directional spotlight
Product name Spot 31 Slim
Order No. 51SF337FA2B

Lighting technology

Light control reflector of aluminium
Beam angle 36°
Symmetry symmetric
UGR viewing direction along longitudinal luminaire axis ≤ 25
UGR viewing direction along lateral luminaire axis ≤ 25

Lamps

Lamps with LED
Rated luminous flux 2150lm
Luminous efficacy 126lm/W
Colour temperature 2700K
Colour rendering index CRI > 90
Light colour 927
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 17W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK02
Certification, designation CE

Material, Colour

housing aluminium, jet black (RAL 9005)
Colour specification jet black (RAL 9005)
adapter plastic

Electrical connection

Connection 3-phase adapter
Nominal voltage 220..240V, 50/60Hz, AC

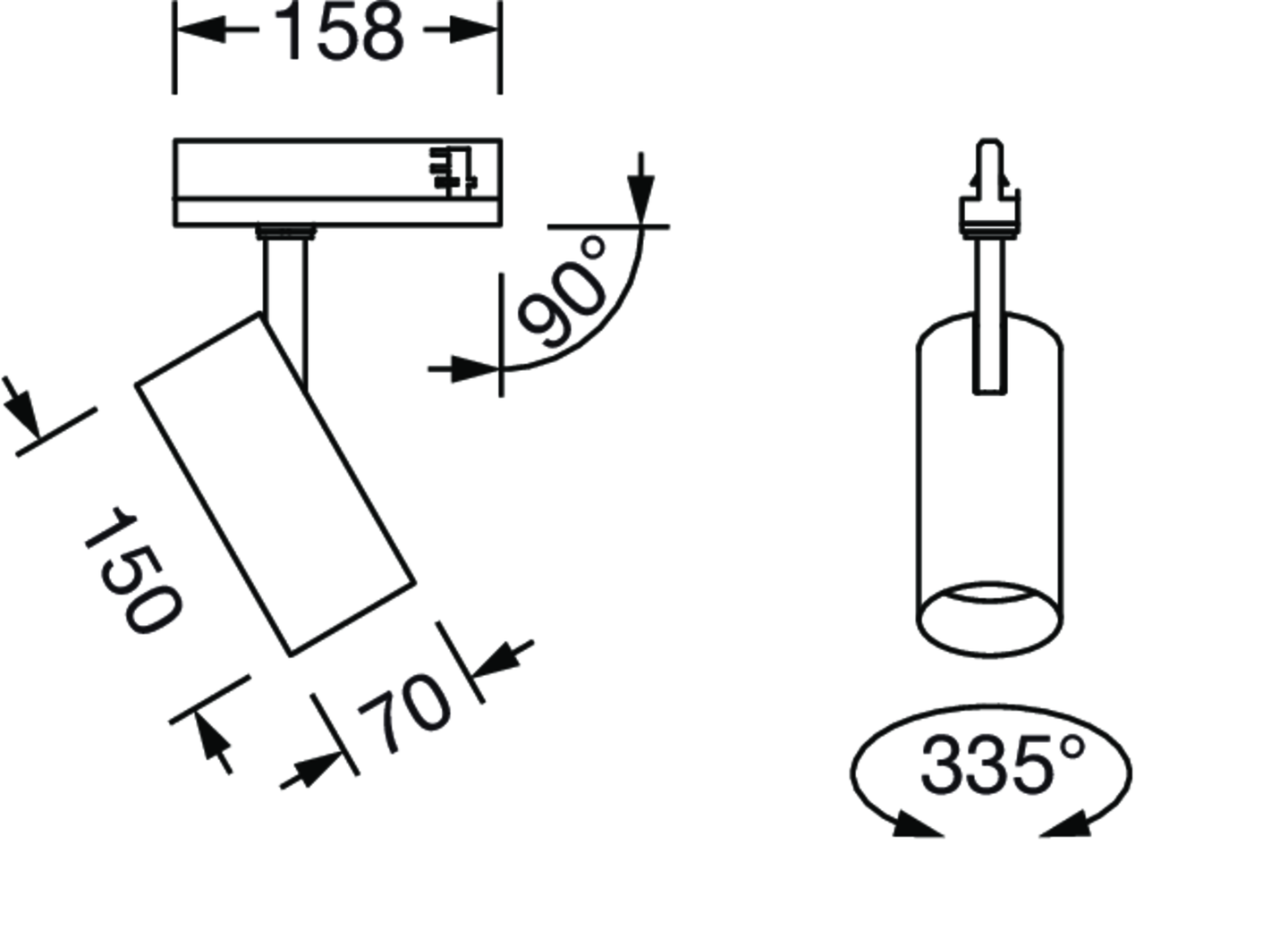

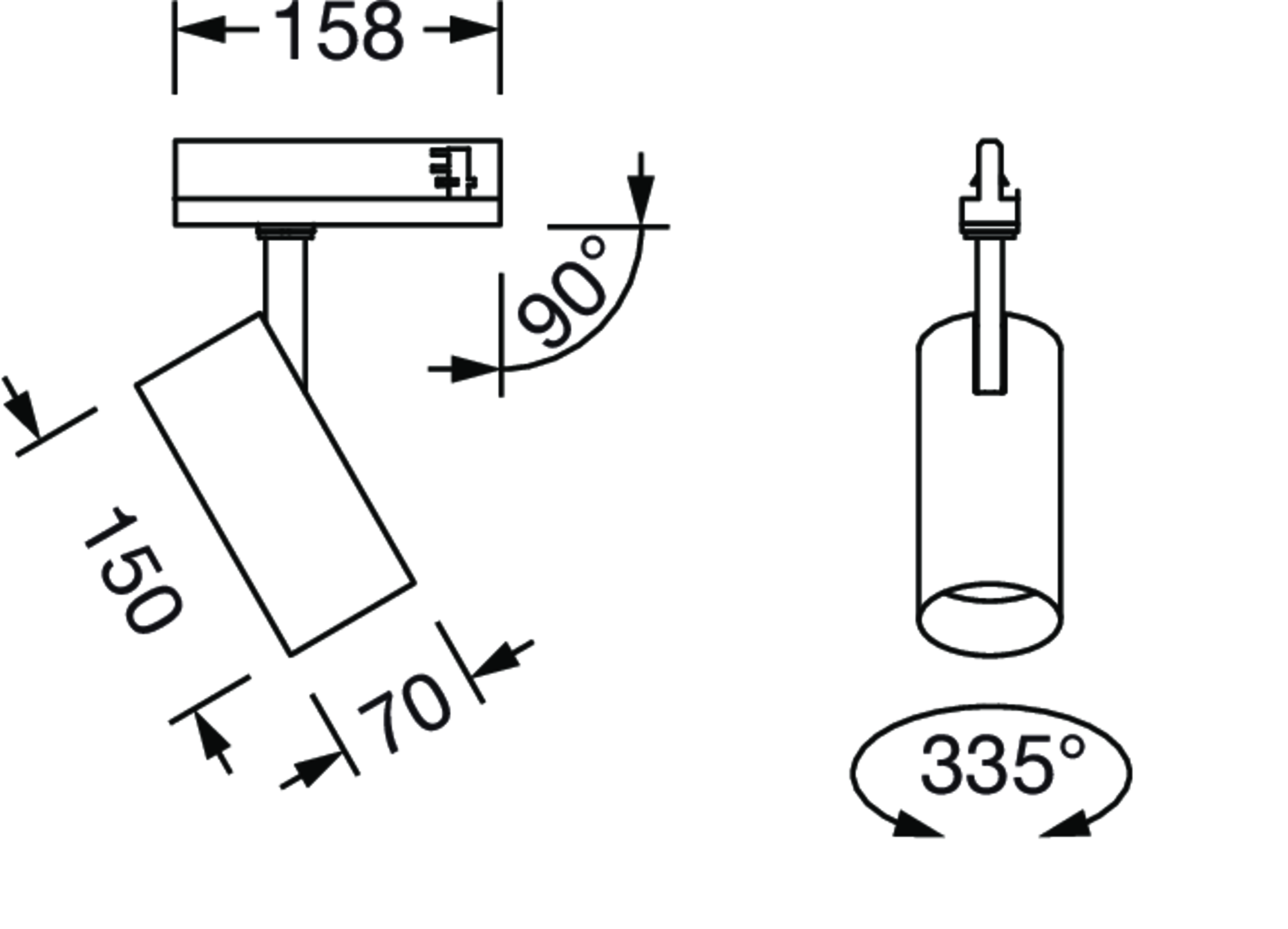

Dimensions, Weight

Diameter 70mm
Weight 0.7kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Spot 31 Slim

Order No.
51SF337FA2B

Light control
reflector of aluminium

Beam angle
36°

Symmetry
symmetric

UGR viewing direction along longitudinal luminaire axis
≤ 25

UGR viewing direction along lateral luminaire axis
≤ 25

Lamps
with LED

Rated luminous flux
2150lm

Luminous efficacy
126lm/W

Colour temperature
2700K

Colour rendering index
CRI > 90

Light colour
927

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
17W

Control gear
ECG

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Impact resistance
IK02

Certification, designation
CE

housing
aluminium, jet black (RAL 9005)

Colour specification
jet black (RAL 9005)

adapter
plastic

Connection
3-phase adapter

Nominal voltage
220..240V, 50/60Hz, AC

Diameter
70mm

Weight
0.7kg

Rated service life
50000h (L80/B50) at AT = 25°C

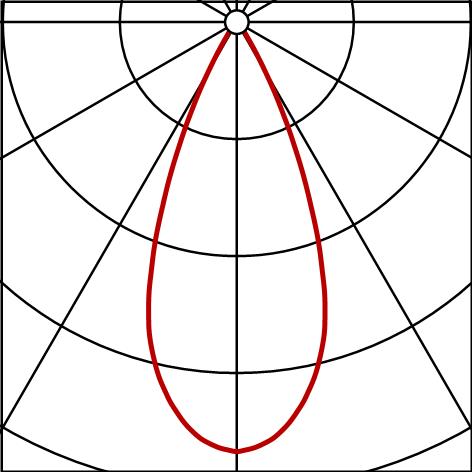

Photometric report / planning data

Spot31Sl
36°,2150lm927,0/1,bk
Lamps: 1x LED
Ordercode: 51SF337FA2B

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
