Floodlight FL 21 micro, PL61, direct distribution
Close
Article floodlight

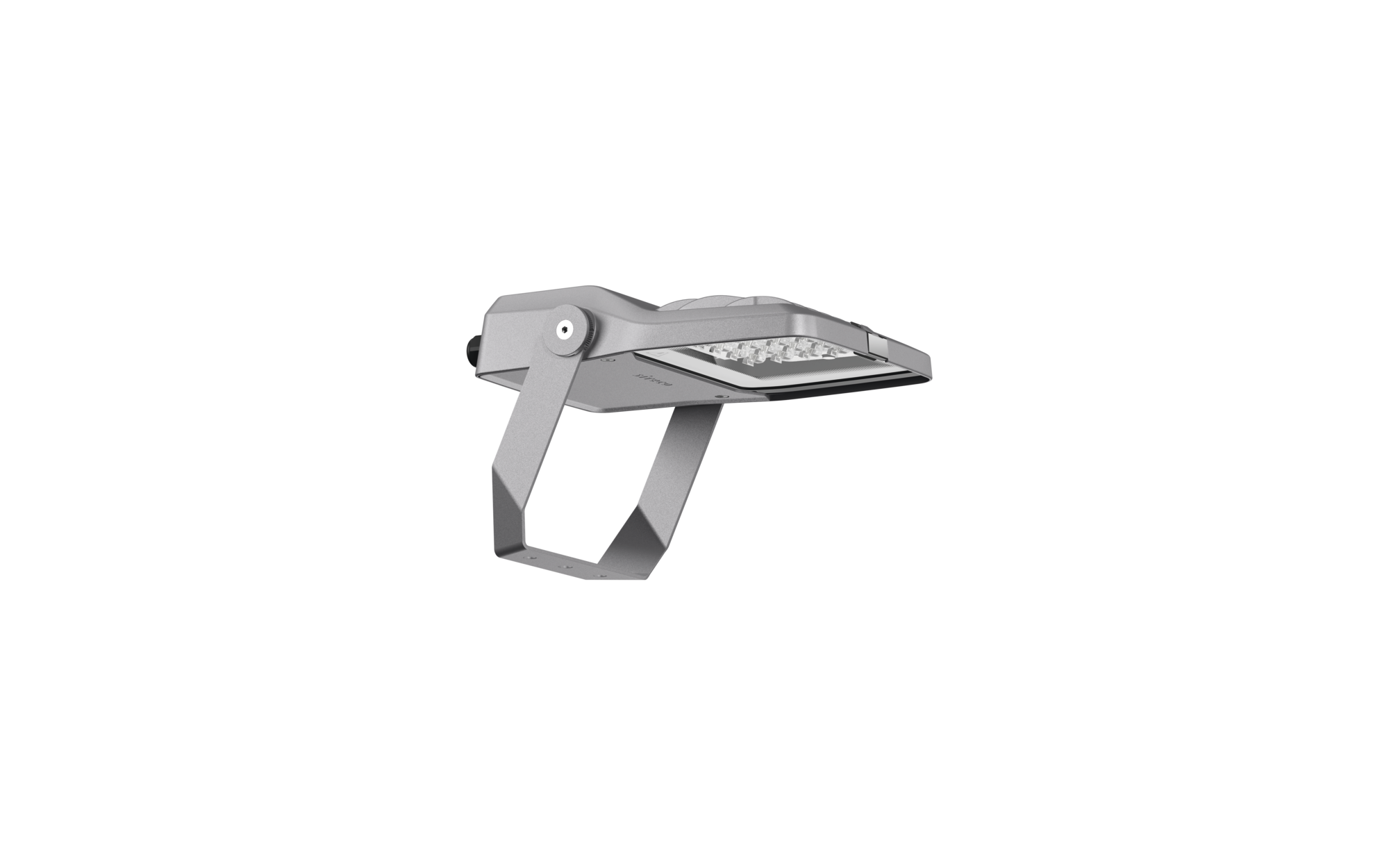

Product name Floodlight FL 21 micro
Lamp LED
Rated luminous flux 4550lm
Luminous efficacy 119lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 38
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK07
Weight 3.2kg
Floodlight FL 21 micro, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL61, light emission: direct distribution, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 4.550lm, luminous efficacy: 119lm/W, light colour: 740, colour temperature: 4000K, control gear: ON/OFF Multilumen, control: Temp-Guard, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 38W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S), ON/OFF, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK07, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

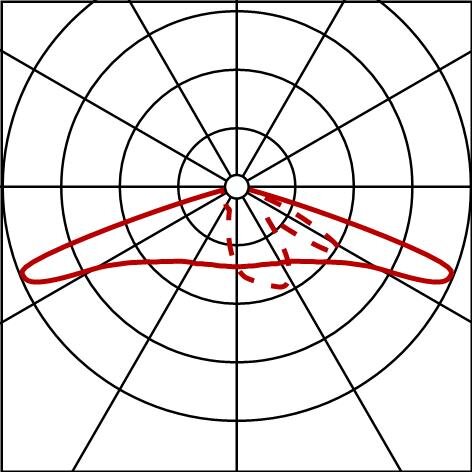

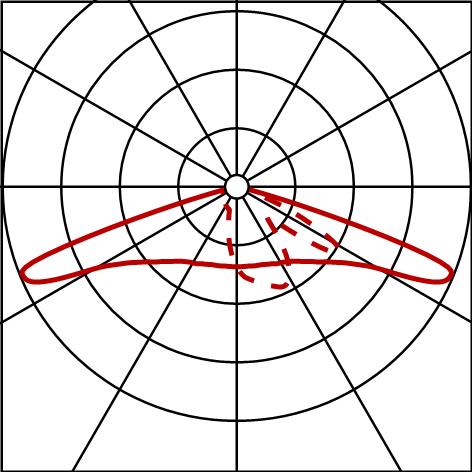

Photometric report / planning data
Floodlight FL 21 micro
LED, direct distribution, surface-mounted, to supporting structure, to the cross arm, to the wall
Lamps: 1x LED
Order No.: 5XA7763A4C1A
