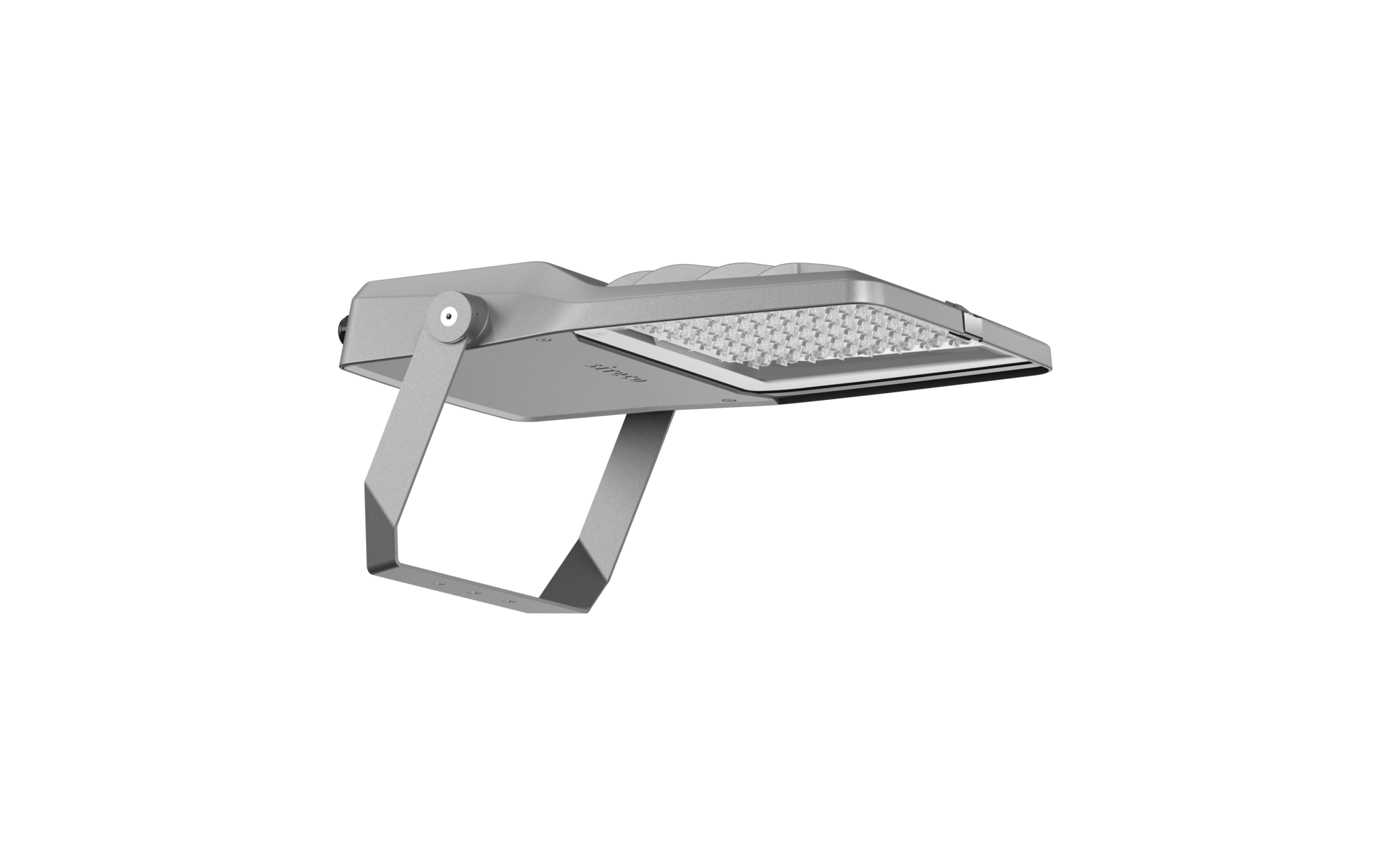

Floodlight FL 21 mini, PL43, direct distribution

Close
Order No.: 5XA7774C2A1A
Remember articleRemember article

Article floodlight
Product name Floodlight FL 21 mini
Lamp LED
Rated luminous flux 12480lm
Luminous efficacy 141lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 89
Pnom end service life 94
Pred at 50% lumin. flux 42
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.2kg

Floodlight FL 21 mini, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL43, light emission: direct distribution, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 12.480lm, luminous efficacy: 141lm/W, light colour: 730, colour temperature: 3000K, control gear: DALI 2, control: overheat protection, power reduction, constant luminous flux control, flexible luminous flux parameterisation, with terminal, 6-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, start of lifetime: 89W, end of service life: 94W, reduction: 42W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, chlorine-resistant, suitable for swimming pools, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type floodlight
Product name Floodlight FL 21 mini
Order No. 5XA7774C2A1A

Lighting technology

Light control lens of PMMA
Cover protective disc, transparent
Light distribution PL43
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 12480lm
Luminous efficacy 141lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power begin service life 89
Rated input power end service life 94
Rated input power at 50% lumin. flux 42
Supplement prepared for through-wiring, luminous flux reduced to approx. 15% with DC operation

Operating device

Control gear ECG DALI
Control DALI 2
Equipment overheat protection, power reduction, constant luminous flux control, flexible luminous flux parameterisation

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Temperature range (operation) -40..+40°C
Supplement LABS conformity tested according to VDMA 24364:2018-05
Standard DIN EN 12944
Corrosion protection corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable
Colour specification Siteco® metallic grey (DB 702S)
mounting bracket steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover protective disc of toughened safety glass

Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the cross arm
Arrangement single arrangement
Supplement with mounting bracket

Electrical connection

Connection terminal, 6-pole
Nominal voltage 220..240V, 0/50..60Hz, AC/DC
Surge voltage resistance 10kV 1.2/50µs

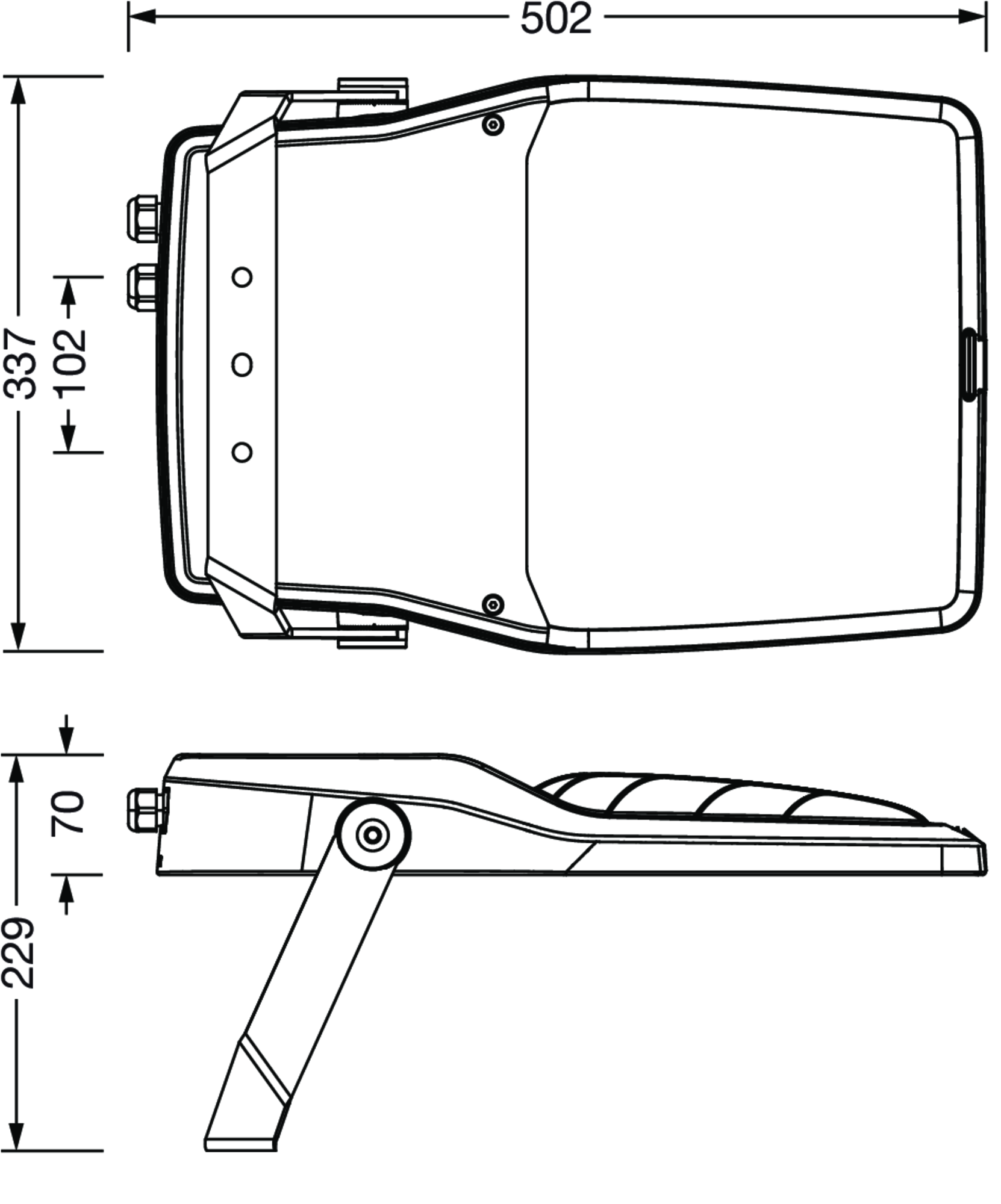

Dimensions, Weight

Weight 7.2kg

Service life

Rated service life 100000h (L97/B10) at AT = 25°C

Product type
floodlight

Product name
Floodlight FL 21 mini

Order No.
5XA7774C2A1A

Light control
lens of PMMA

Cover
protective disc, transparent

Light distribution
PL43

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
12480lm

Luminous efficacy
141lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power begin service life
89

Rated input power end service life
94

Rated input power at 50% lumin. flux
42

Supplement
prepared for through-wiring, luminous flux reduced to approx. 15% with DC operation

Control gear
ECG DALI

Control
DALI 2

Equipment
overheat protection, power reduction, constant luminous flux control, flexible luminous flux parameterisation

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Temperature range (operation)
-40..+40°C

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Standard
DIN EN 12944

Corrosion protection
corrosivity category C5 mid according to DIN EN ISO 12944, suitable for swimming pools, chlorine-resistant

Certification, designation
CE, ENEC, VDE

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable

Colour specification
Siteco® metallic grey (DB 702S)

mounting bracket
steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
protective disc of toughened safety glass

Mounting method, mounting location
surface-mounted, to supporting structure, to the cross arm

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 6-pole

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Surge voltage resistance
10kV 1.2/50µs

Weight
7.2kg

Rated service life
100000h (L97/B10) at AT = 25°C

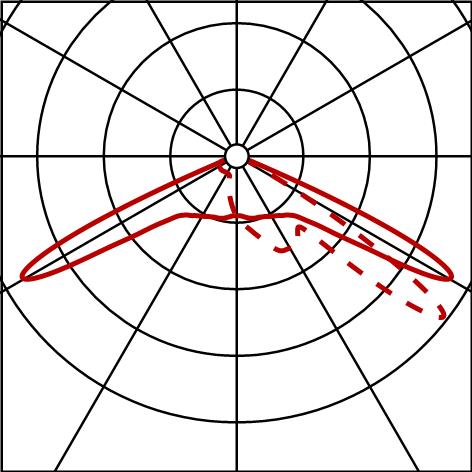

Photometric report / planning data

Floodlight FL 21 mini
LED, ECG DALI, direct distribution, surface-mounted, to supporting structure, to the cross arm
Lamps: 1x LED
Order No.: 5XA7774C2A1A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
