Floodlight FL 21 iQ midi, RS07, direct distribution
Close
Article floodlight

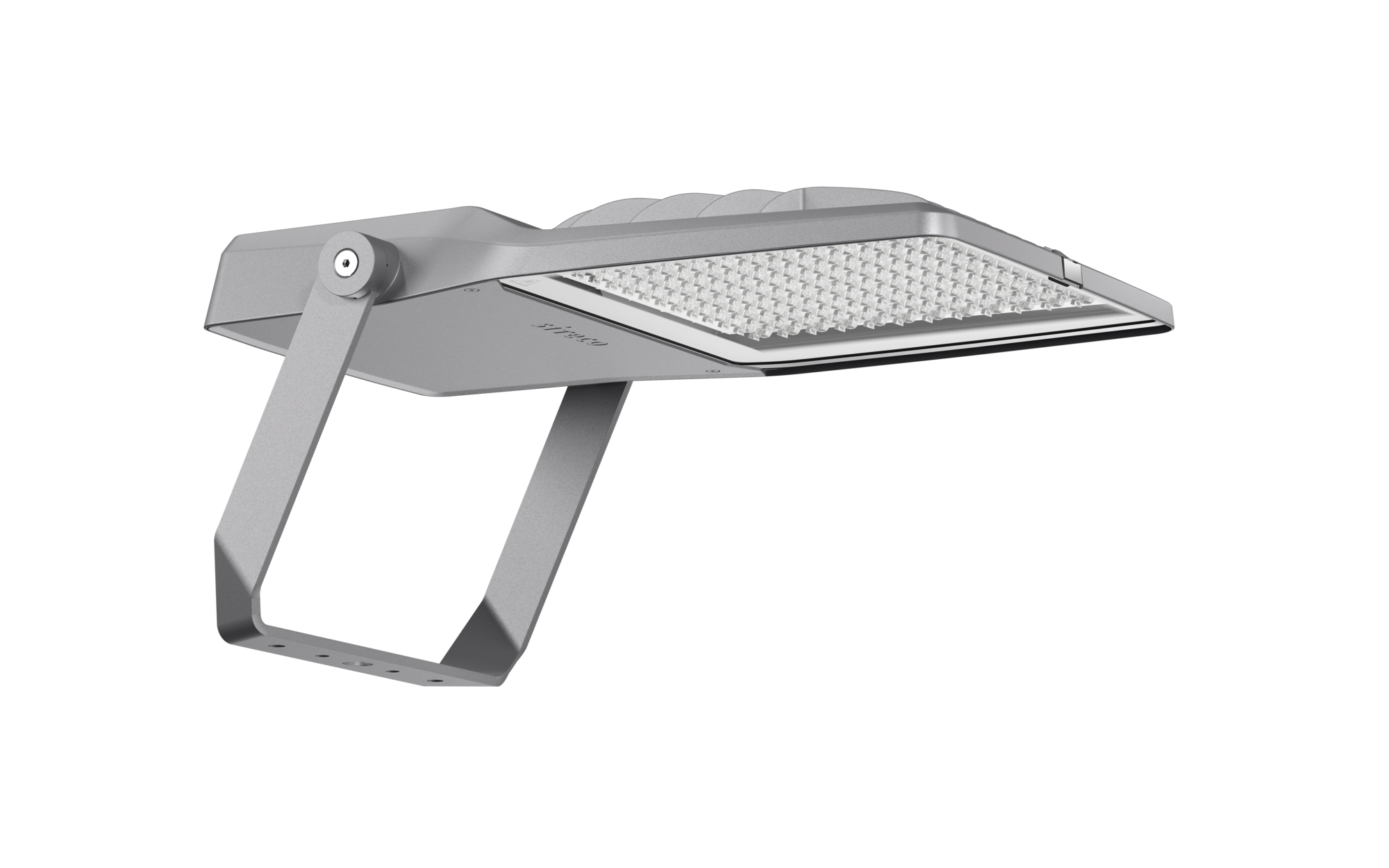

Product name Floodlight FL 21 iQ midi
Lamp LED
Rated luminous flux 29450lm
Luminous efficacy 109lm/W
Colour temperature 2200K
Colour rendering CRI > 70
Pnom begin service life 270
Pnom end service life 287
Pred at 50% lumin. flux 117
Service life 100000h (L94/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 13.5kg
Floodlight FL 21 iQ midi, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: RS07, light emission: direct distribution, installation type: surface-mounted, lamps: LED, High Power LED, rated values: 29.450lm | 270,2W | 109lm/W (begin service life); end service life: 29.450lm | 286,6W; at 50% lumin. flux: 14.725lm | 117,2W | 125,6lm/W, colour temperature: 2200K, colour rendering: CRI > 70, light colour: 722, light setting 1 begin service life: 100% | 29.450lm | 270,2W | 109lm/W | 2.200K, light setting 1 end service life: 286,6W, further light settings possible, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Street-Remote, Auto-Match, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944suitable for swimming poolschlorine-resistant, sealing non-destructively replaceable, mounting bracket, of steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

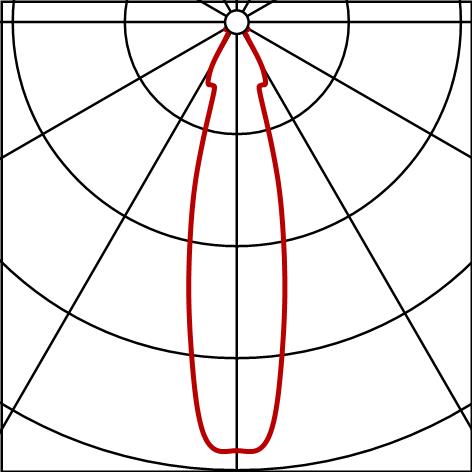

Photometric report / planning data
Floodlight FL 21 iQ midi
LED, direct distribution, surface-mounted, to supporting structure, to the cross arm
Lamps: 1x LED
Order No.: 5XA7782F1B1A
