POWERBRIK® Slim Gen.2, ON/OFF, PC
Close
Article damp-proof luminaire

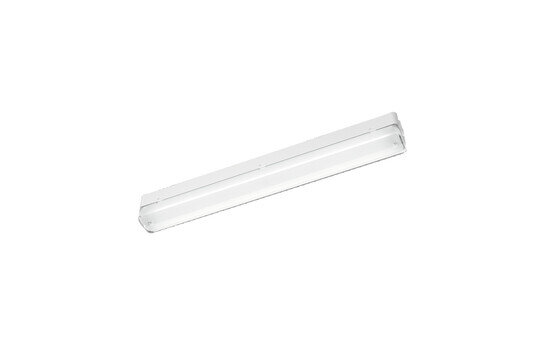

Product name POWERBRIK® Slim Gen.2
Lamp LED
Rated luminous flux 900lm
Luminous efficacy 139lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 6.5W
Service life 50000h (L70/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK05
Weight 0.3kg

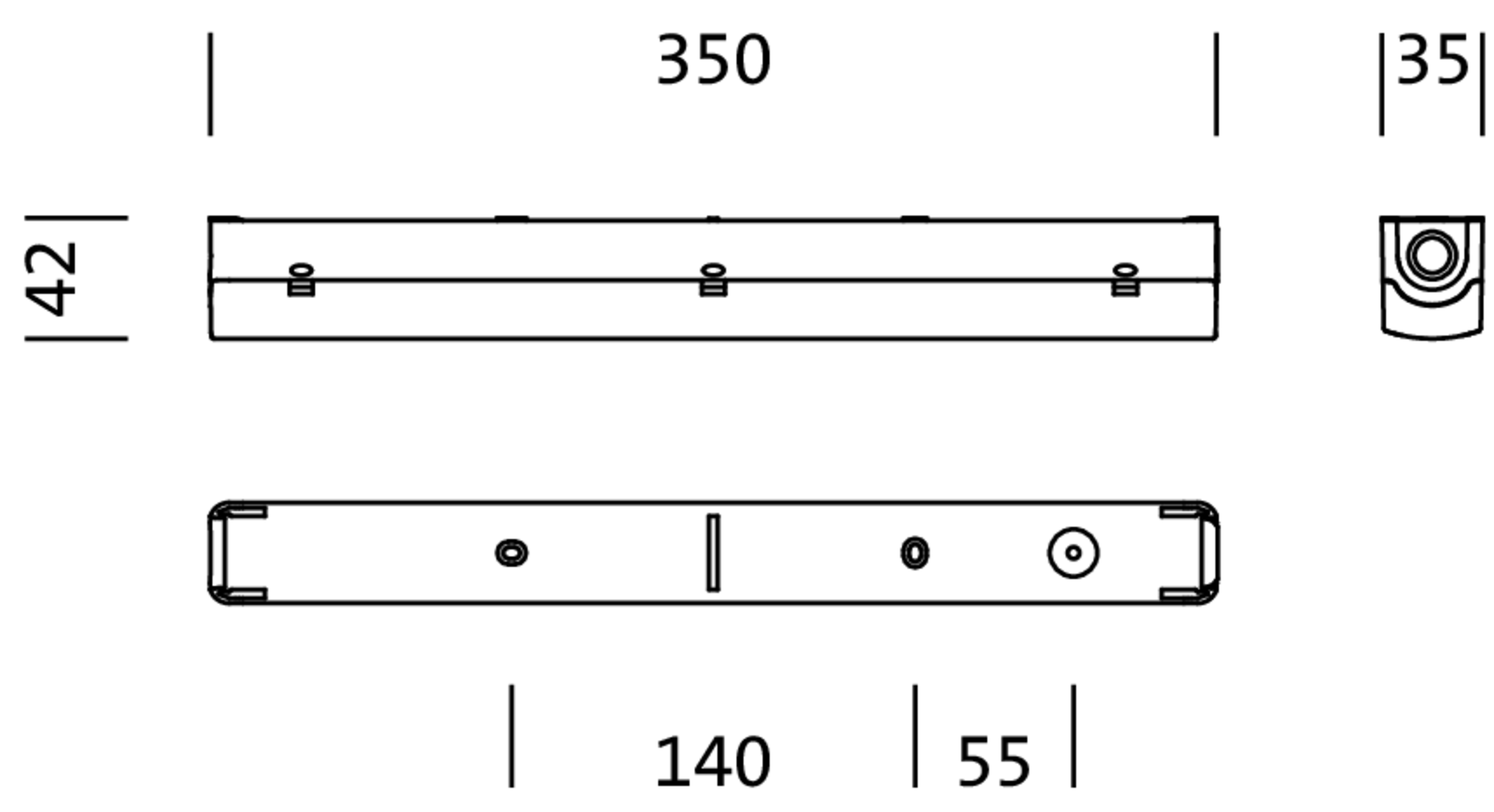

POWERBRIK® Slim Gen.2, damp-proof luminaire, primary optical cover: enclosure, of PC, primary light characteristic: asymmetric, installation type: surface-mounted, LED, rated luminous flux: 900lm, luminous efficacy: 139lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 2-pole, max. 1.5mm², mains connection: 230V, AC/DC, 0/50..60Hz, rated input power: 6.5W, housing, of PC, traffic white (RAL 9016), length: 350mm, width: 35mm, height: 22mm, protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation), certification: CE, UKCA, protection symbol: D, impact resistance: IK05, permissible operating ambient temperature: -20..+40°C, standard: EN 60598-2-1, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, unprotected outdoor installations, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
POWERBRIK® Slim
LED, ECG, enclosure, surface-mounted, L= 350mm
Lamps: 1x LED
Order No.: 51FC207A410AS
