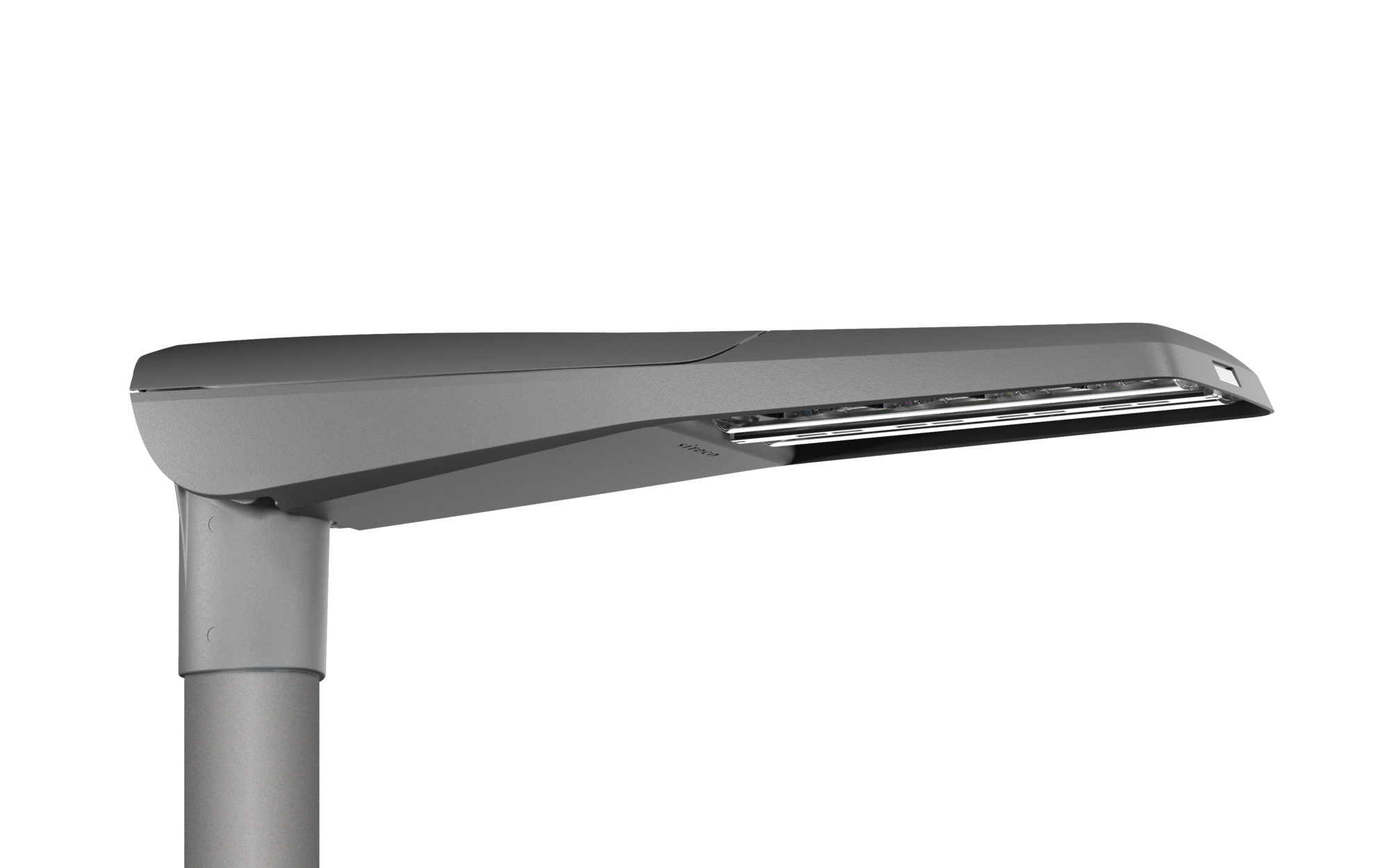

Streetlight SL 11 iQ mini, direct asymmetric wide distribution, ST1.2a

Order No.: 5XC2A11F08GE

Article mast luminaire
Product name Streetlight SL 11 iQ mini
Lamp LED
Rated luminous flux 2320lm
Luminous efficacy 100lm/W
Colour temperature 1800K
Colour rendering CRI > 70
P_nom begin service life 23
P_nom end service life 24
P_red at 50% lumin. flux 12
Service life 100000h (L98/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10

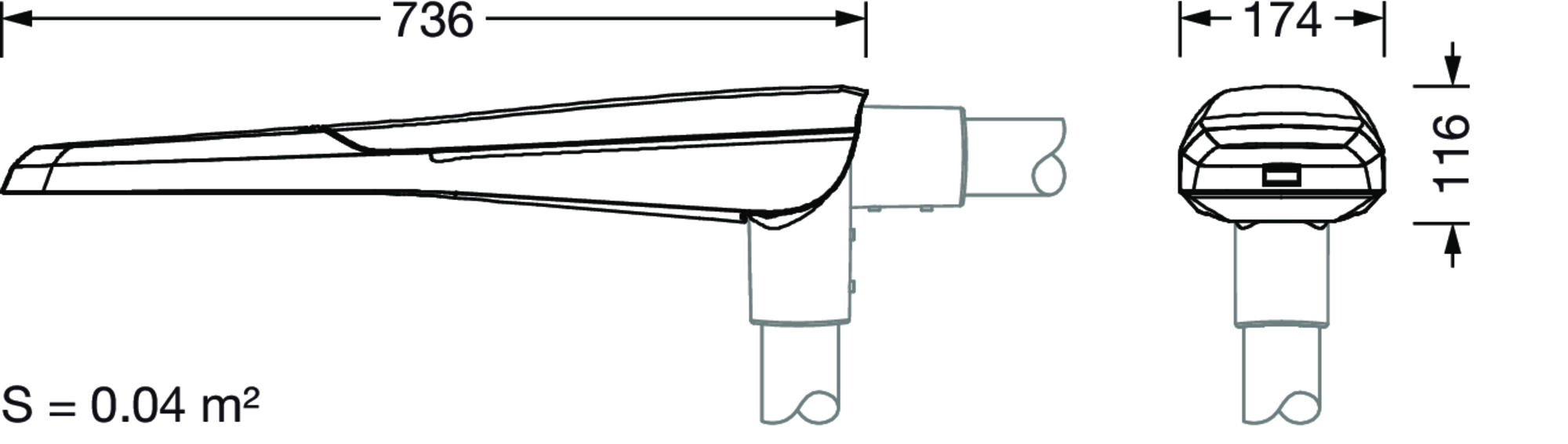

Weight 6.6kg

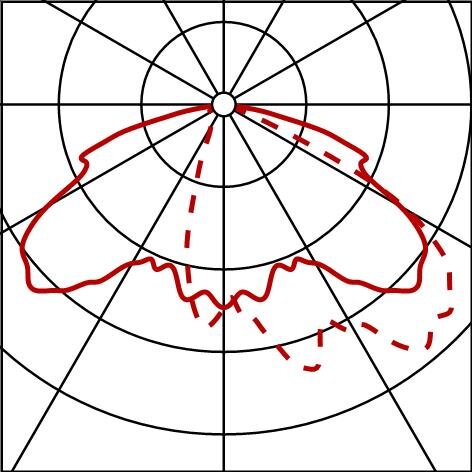

Streetlight SL 11 iQ mini, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, primary optical cover: cover, of PMMA, transparent, light distribution: ST1.2a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, lamps: LED, High Power LED, rated values: 2.320lm | 23,2W | 100lm/W (begin service life); end service life: 2.320lm | 23,8W; at 50% lumin. flux: 1.160lm | 12W | 96,7lm/W, colour temperature: 1800K, colour rendering: CRI > 70, light colour: 718, light setting 1 begin service life: 100% | 2.320lm | 23,2W | 100lm/W | 1.800K, light setting 1 end service life: 23,8W, further light settings possible, control: Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), with cable H07RN-F 5x 1.5mm², mains connection: 230..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 6,5m, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system, length: 736mm, width: 174mm, height: 116mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, equipment: standard, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -25..+50°C, standard-compliant lighting for roads and squares, Environmental Product Declaration (EPD) tested and certified by an independent institute, packaging unit: 1 piece
