Streetlight SL 11 iQ mini, direct asymmetric wide distribution with rear light component, S050002
Article mast luminaire
Product name Streetlight SL 11 iQ mini
Lamp LED
Rated luminous flux 8410lm
Luminous efficacy 143.5lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 58.6W
Pnom end service life 60.9W
Pred at 50% lumin. flux 27.5W
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 6.8kg
Streetlight SL 11 iQ mini, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, primary optical cover: cover, of PMMA, transparent, light distribution: S050002, primary beam angle: wide distribution with rear light component, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, lamps: LED, rated values: 8.410lm | 58,6W | 143,5lm/W (begin service life); end service life: 8.410lm | 60,9W; at 50% lumin. flux: 4.205lm | 27,5W | 152,9lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 8.410lm | 58,6W | 143,5lm/W | 3.000K (begin service life); end service life: 60,9W, control gear: iQ-Comfort, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), connection cable: pre-assembled, cable length: 8,5m, wiring characteristics: H07RN-F, 3X 1,5mm², configuration: L/N/LST, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system, length: 736mm, width: 174mm, height: 116mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, equipment: Power, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -25..+50°C, standard-compliant lighting for roads and squares, Environmental Product Declaration (EPD) tested and certified by an independent institute, packaging unit: 1 piece
Downloads
Technical product information
- Installation sheet (PDF)
- Data sheet (PDF)
- Environmental Product Declaration EPD (PDF)
- Photometric report / planning data
Data for applications
Product details

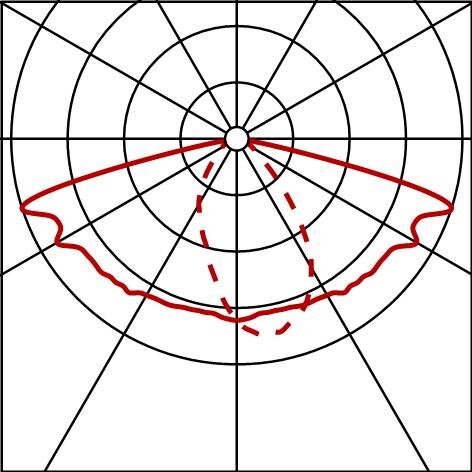

Photometric report / planning data
SL11iQmn
S050002,8410lm730,Comf
Lamps: LED 3000K / CRI >= 70
Order No.: 5XC2H51E08HE
