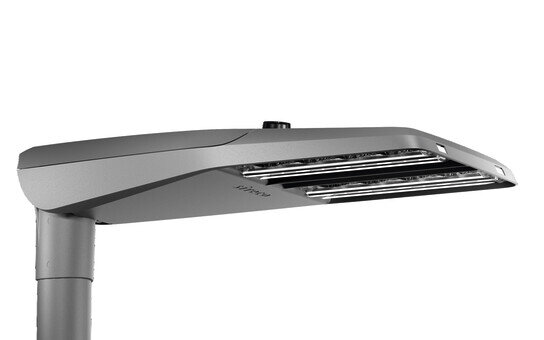

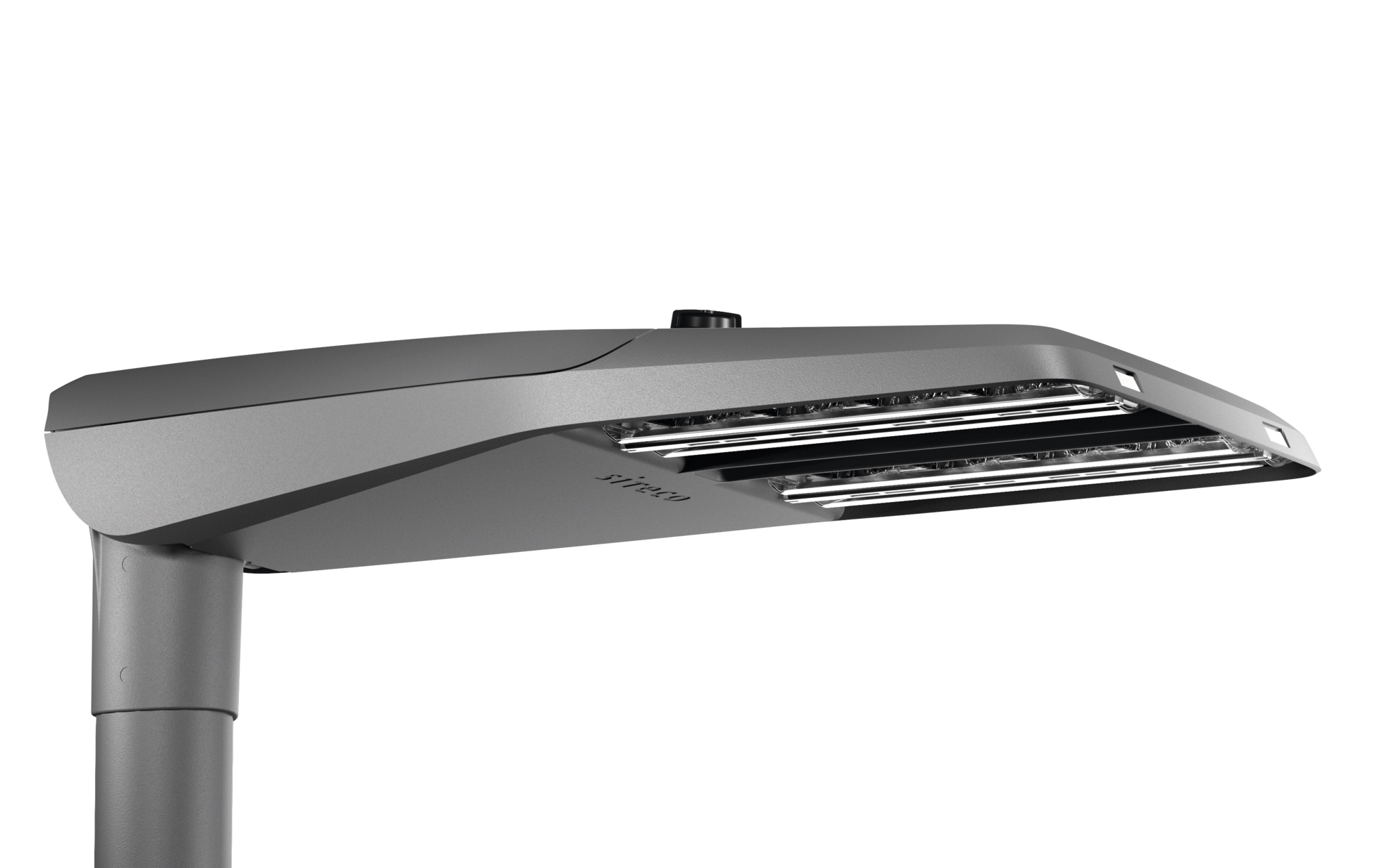

Streetlight SL 11 iQ midi, direct asymmetric wide distribution, ST1.2a, with Smart Interface below

Close
Ordercode: 5XC3A51U08ME
Remember productRemember product

Article mast luminaire
Product name Streetlight SL 11 iQ midi
Lamp LED
Rated luminous flux 18110lm
Luminous efficacy 148lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 123
Pnom end service life 130
Pred at 50% lumin. flux 56
Service life 100000h at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 11.5kg

Streetlight SL 11 iQ midi, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, primary optical cover: cover, of PMMA, transparent, light distribution: ST1.2a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, lamps: LED, High Power LED, rated values: 18.110lm | 122,7W | 147,6lm/W (begin service life); end service life: 18.110lm | 130,2W; at 50% lumin. flux: 9.055lm | 56,1W | 161,4lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 begin service life: 100% | 18.110lm | 122,7W | 147,6lm/W | 3.000K, light setting 1 end service life: 130,2W, further light settings possible, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), with cable H07RN-F 5x 1.5mm², mains connection: 230..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 12,5m, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system, length: 780mm, width: 376mm, height: 118mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, equipment: Power, Smart Interface below, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, UKCA, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -25..+50°C, standard-compliant lighting for roads and squares, Environmental Product Declaration (EPD) tested and certified by an independent institute, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type mast luminaire
Product name Streetlight SL 11 iQ midi
Order No. 5XC3A51U08ME

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent
Light distribution ST1.2a
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated values 18110lm | 122.7W | 147.6lm/W (begin service life);
end service life: 18110lm | 130.2W;
at 50% lumin. flux: 9055lm | 56.1W | 161.4lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 18110lm | 122.7W | 147.6lm/W | 3000K
end service life
LS 1: 130.2W
further light settings possible

Operating device

Control iQ-Street Remote, D4i with power reduction, Smart Interface below
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK10
Temperature range (operation) -25..+50°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, ENEC+, VDE, UKCA
EPD Environmental Product Declaration (EPD) tested and certified by an independent institute

Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system
Colour specification Siteco® metallic grey (DB 702S)
Cover cover of PMMA

Mounting

Mounting method, mounting location side-entry, post-top, on mast

Electrical connection

Connection cable H07RN-F 5x 1.5mm²
Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)
Connection cable pre-assembled, L= 12.5m

Dimensions, Weight

Length 780mm
Width 376mm
Height 118mm
Weight 11.5kg
Mast spigot mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 100000h at AT = 25°C

Product type
mast luminaire

Product name
Streetlight SL 11 iQ midi

Order No.
5XC3A51U08ME

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Cover
cover, transparent

Light distribution
ST1.2a

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated values
18110lm | 122.7W | 147.6lm/W (begin service life);
end service life: 18110lm | 130.2W;
at 50% lumin. flux: 9055lm | 56.1W | 161.4lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 18110lm | 122.7W | 147.6lm/W | 3000K

end service life

LS 1: 130.2W


further light settings possible

Control
iQ-Street Remote, D4i with power reduction, Smart Interface below

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK10

Temperature range (operation)
-25..+50°C

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE, ENEC, ENEC+, VDE, UKCA

EPD
Environmental Product Declaration (EPD) tested and certified by an independent institute

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover of PMMA

Mounting method, mounting location
side-entry, post-top, on mast

Connection
cable H07RN-F 5x 1.5mm²

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Connection cable
pre-assembled, L= 12.5m

Length
780mm

Width
376mm

Height
118mm

Weight
11.5kg

Mast spigot
mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission
0% at 0° inclination

Rated service life
100000h at AT = 25°C

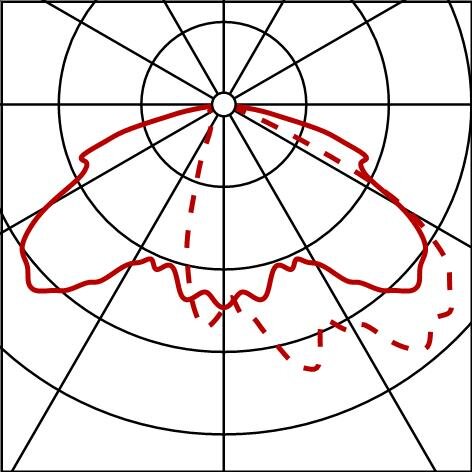

Photometric report / planning data

SL11iQmd
ST1.2a,18110lm730,SR,D4i,LSTZb
Lamps: 1x LED
Ordercode: 5XC3A51U08ME

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
