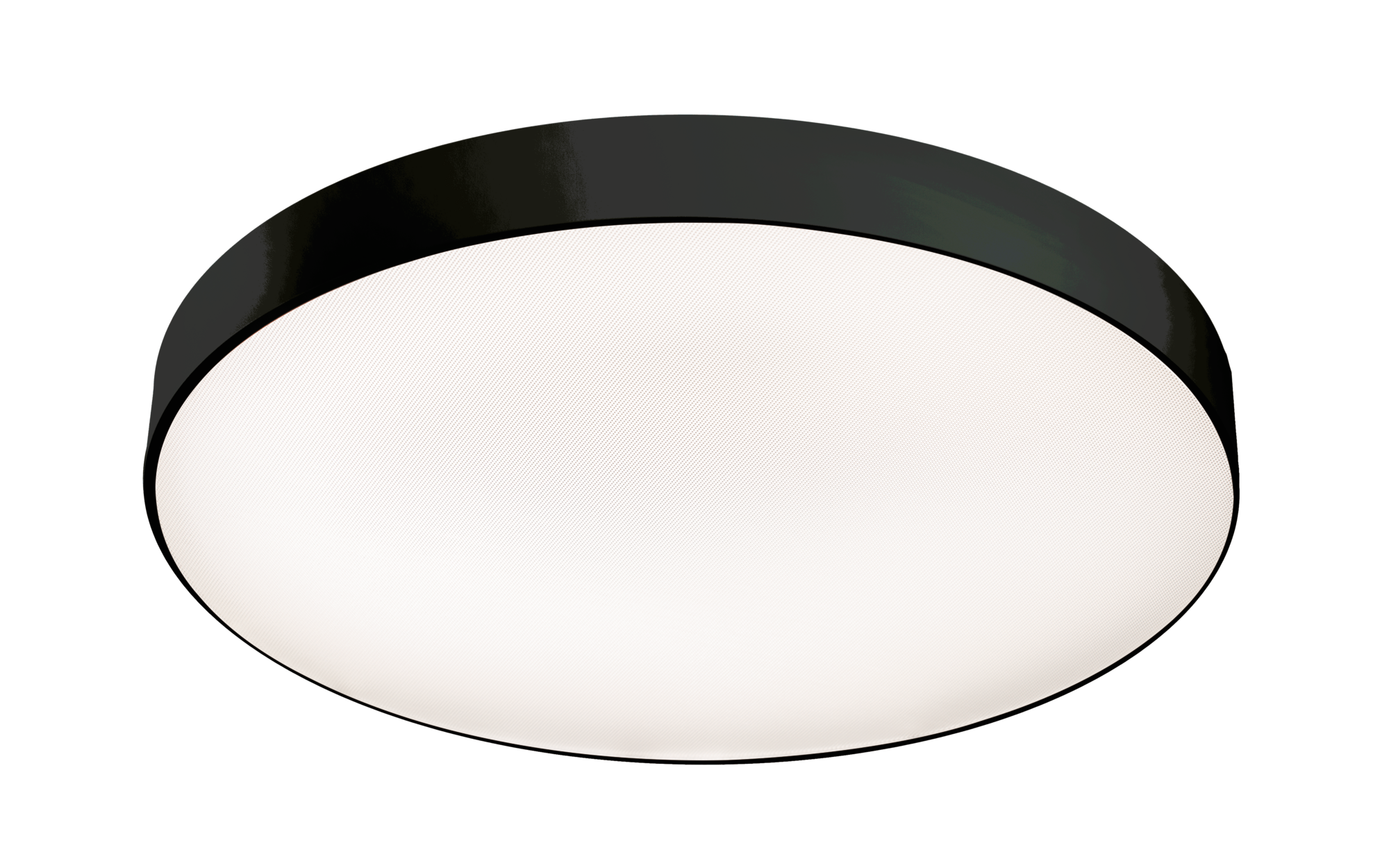

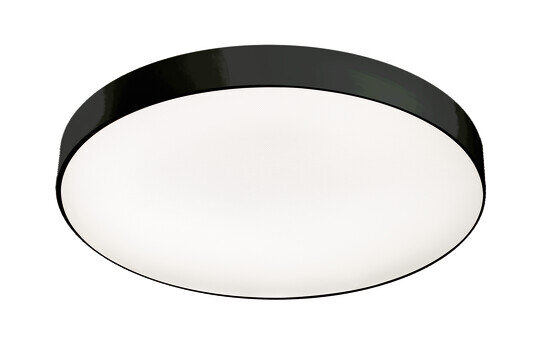

Round 21 L, Prismatic, direct/indirect distribution, 85°, Light colour 840, DALI 2, black
Close
Article wall and ceiling luminaire
Product name Round 21 L
Lamp LED
Rated luminous flux 12230lm
Luminous efficacy 139lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 88W
Service life 50000h (L80/B20) at AT = 25°C
Protection rating IP40
Impact resistance IK04
Weight 10.6kg

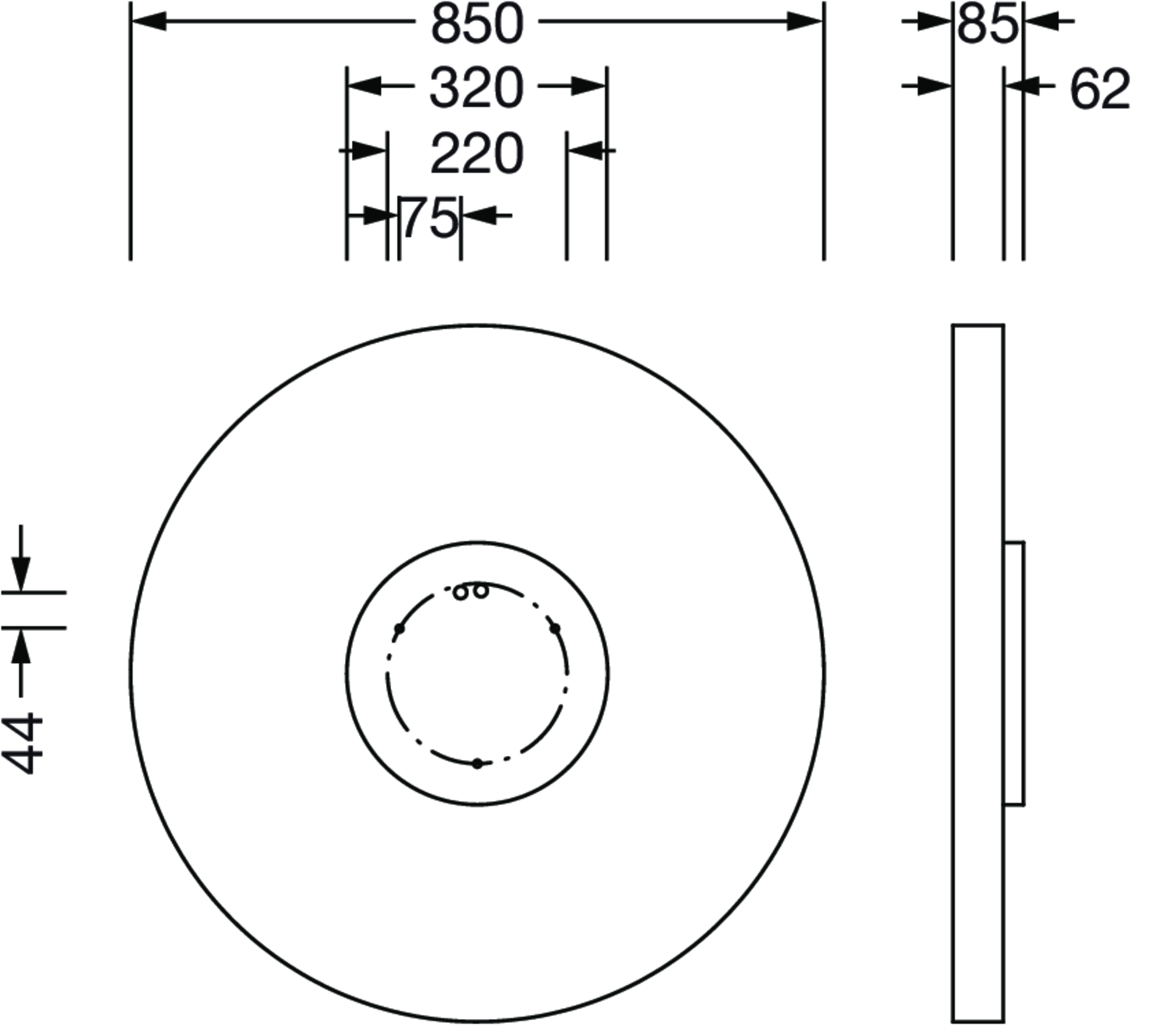

Round 21 L, wall and ceiling luminaire, primary optical cover: micro prismatic cover, of PMMA, transparent, CAT 2 (L<= 3000cd/m²), light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 12.230lm, luminous efficacy: 139lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 230V, AC, 50/60Hz, rated input power: 88W, housing, of aluminium, coated, black, diameter: 850mm, height: 62mm, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK04, permissible operating ambient temperature: -10..+35°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
Round21L
Prism,dir/ind,12230lm840,DA2,bk
Lamps: 1x LED
Order No.: 51MR38ND0421B
