Silica® 21 Square, direct symmetric wide distribution, DALI 2, for M600
Close
Article office luminaire
Product name Silica® 21 Square
Lamp LED
Rated luminous flux 4600lm
Luminous efficacy 169lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 27.2W
Service life 70000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 4.5kg

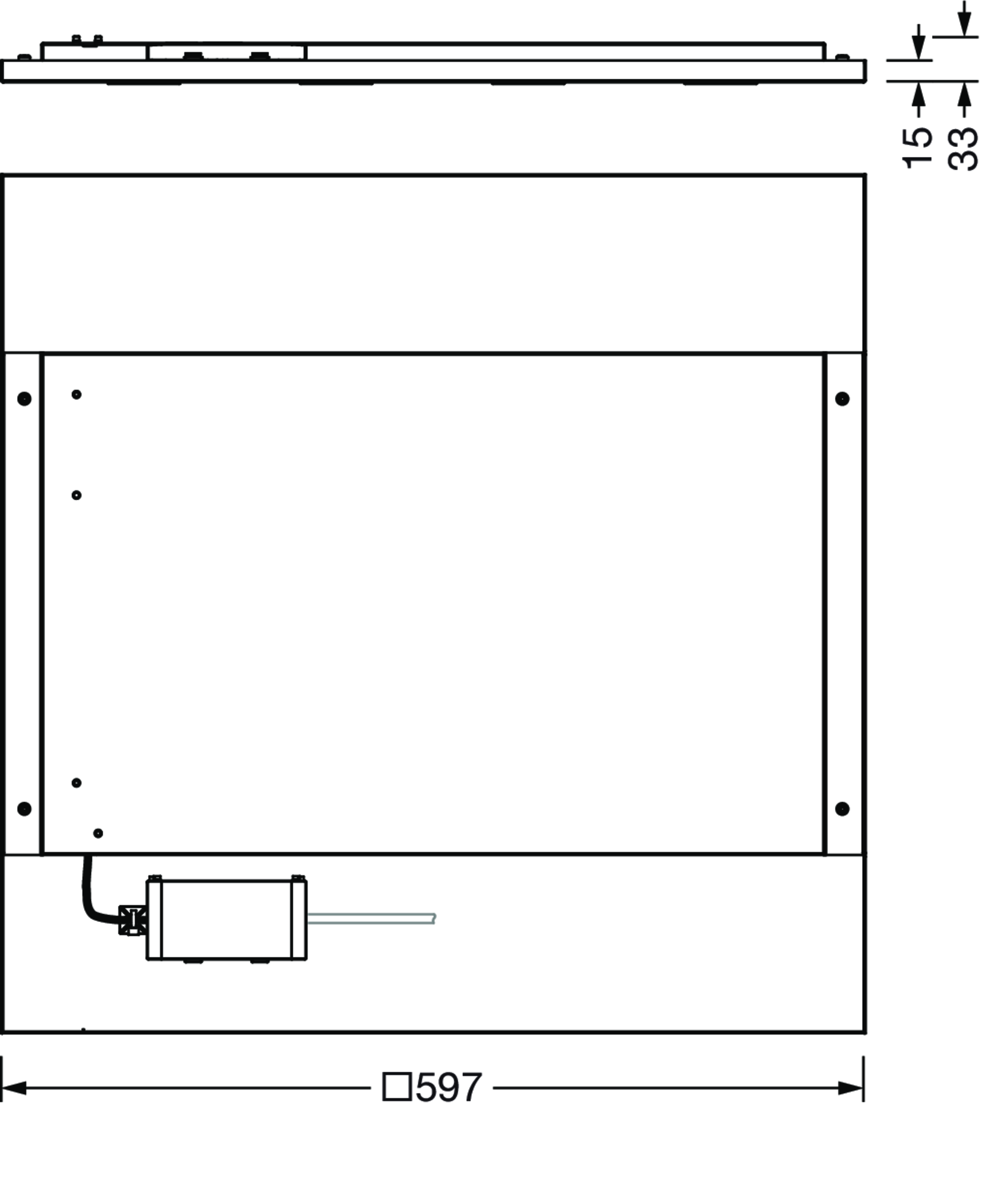

Silica® 21 Square, office luminaire, primary light control with lens, of PMMA, primary anti-glare with reflector, of PC, white, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 4.600lm, luminous efficacy: 169lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 27.2W, luminaire housing, of sheet steel, coated, traffic white (RAL 9016), module: M600, length: 597mm, width: 597mm, height: 33mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, permissible operating ambient temperature: -20..+40°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

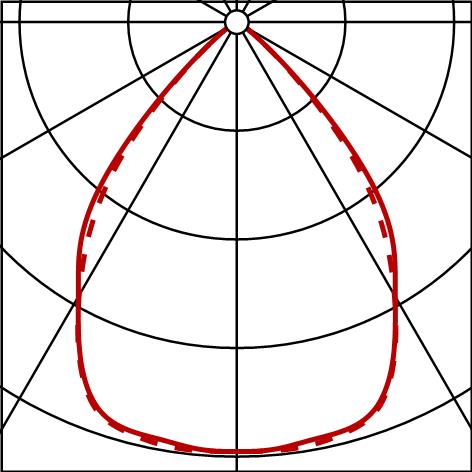

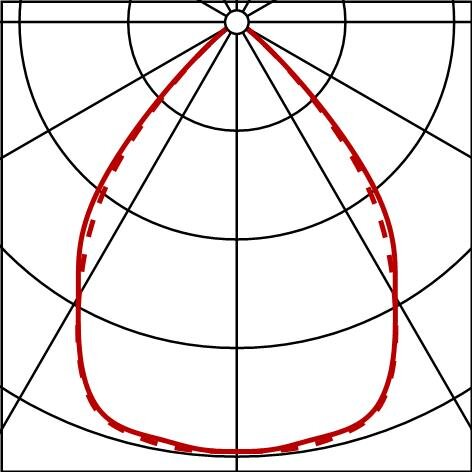

Photometric report / planning data

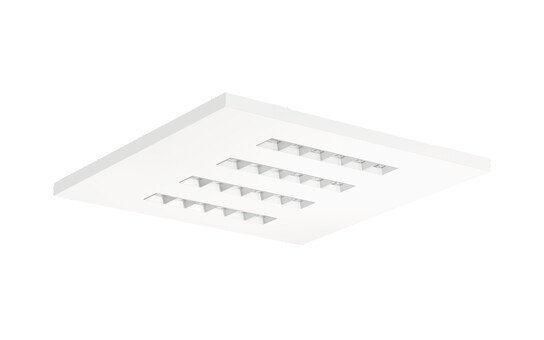

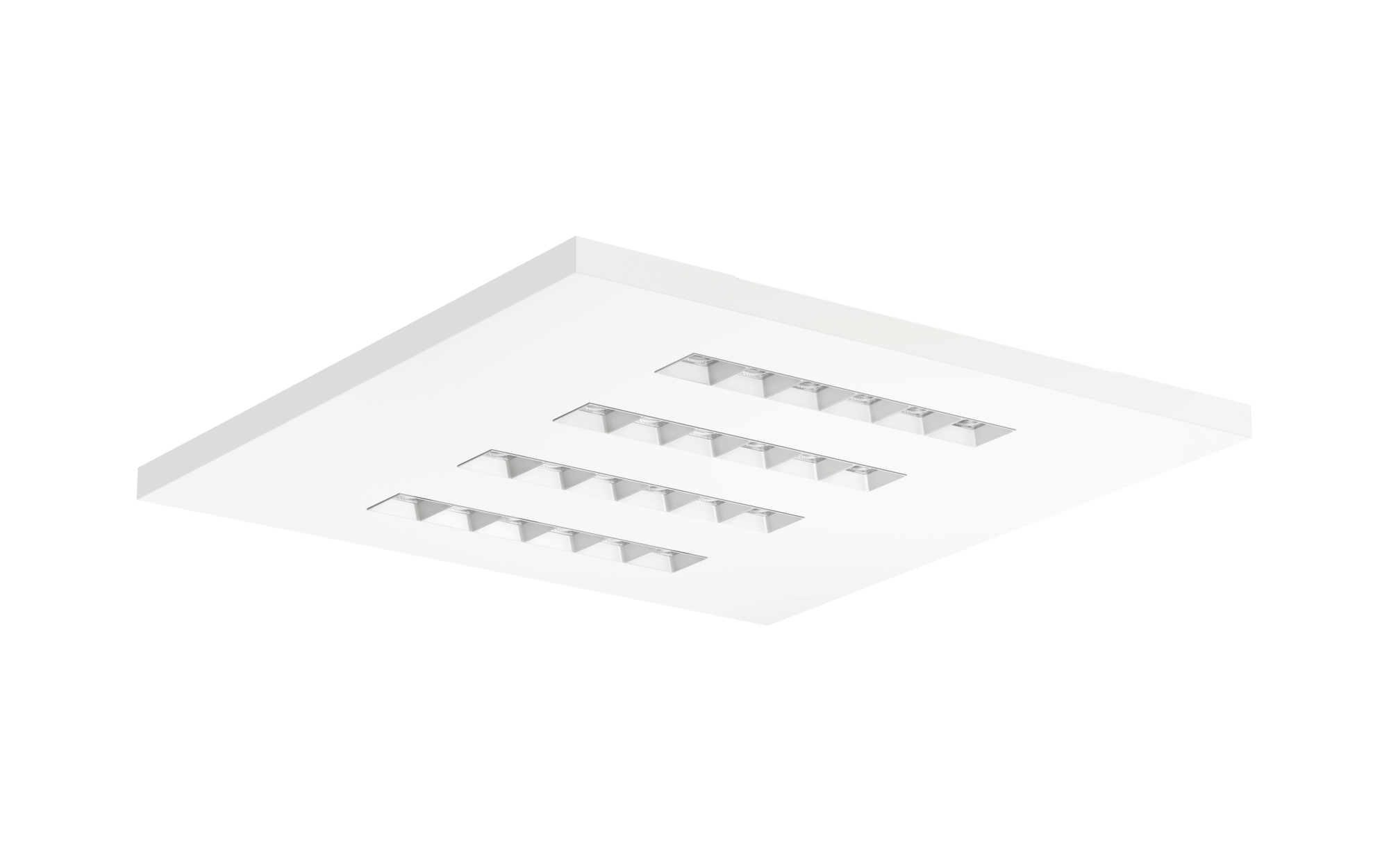

Silica® 21 Square
office luminaire, traffic white (RAL 9016), DALI 2, 4600lm, 840, 597x597mm, for M600, Connection: terminal
Lamps: 1x LED
Order No.: 51MX6MDS44W
