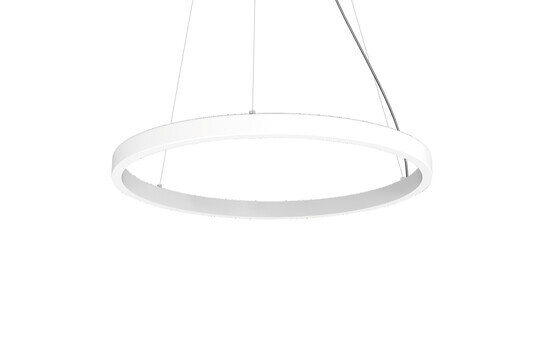

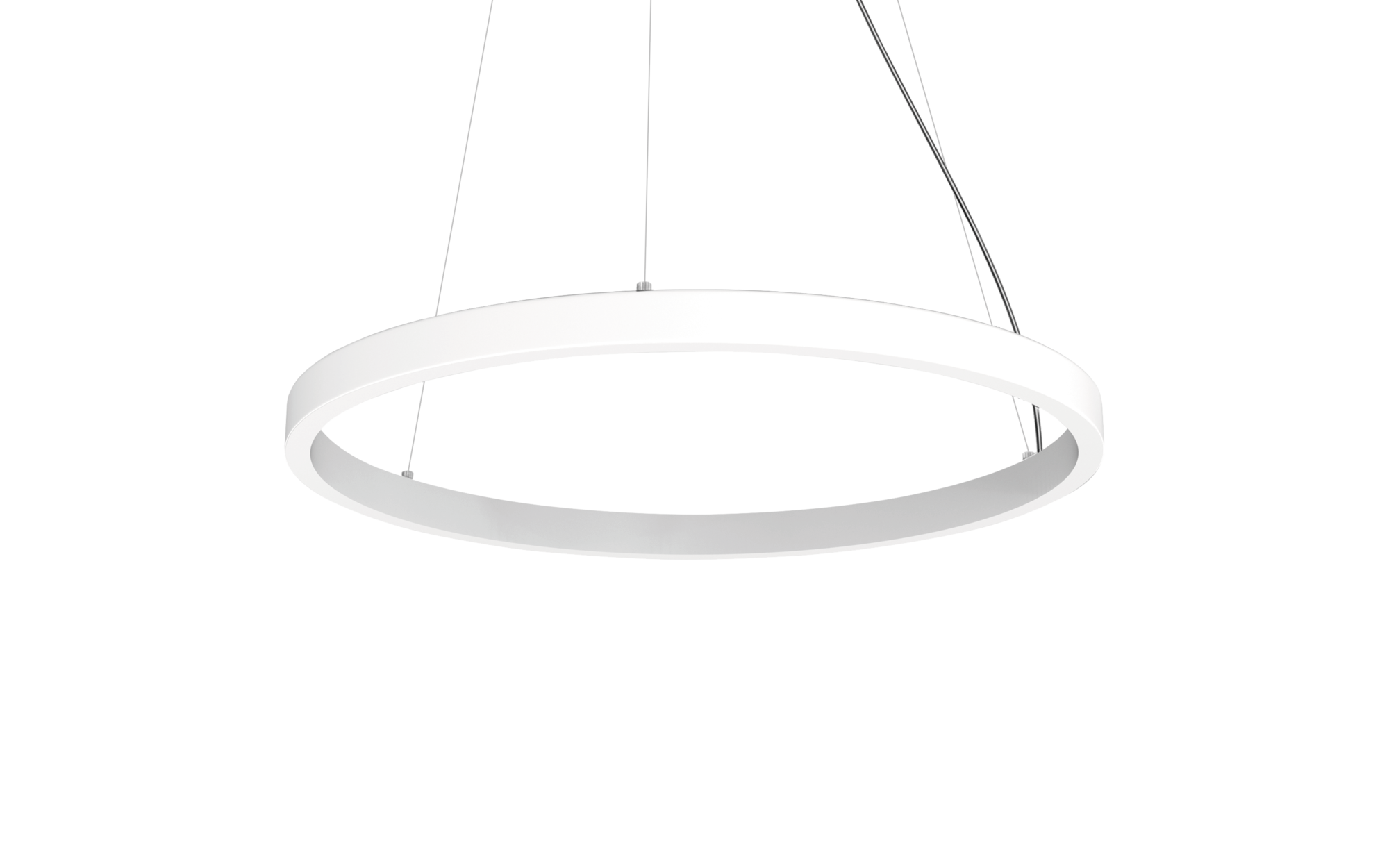

Silica® 21 Ring-O, outer ring side luminous, DALI 2, traffic white (RAL 9016)
Close
Article suspended luminaire
Product name Silica® 21 Ring-O
Lamp LED
Rated luminous flux 6860lm
Luminous efficacy 65lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 105W
Service life 50000h (L80/B50) at AT = 25°C
Impact resistance IK02
Weight 3.1kg

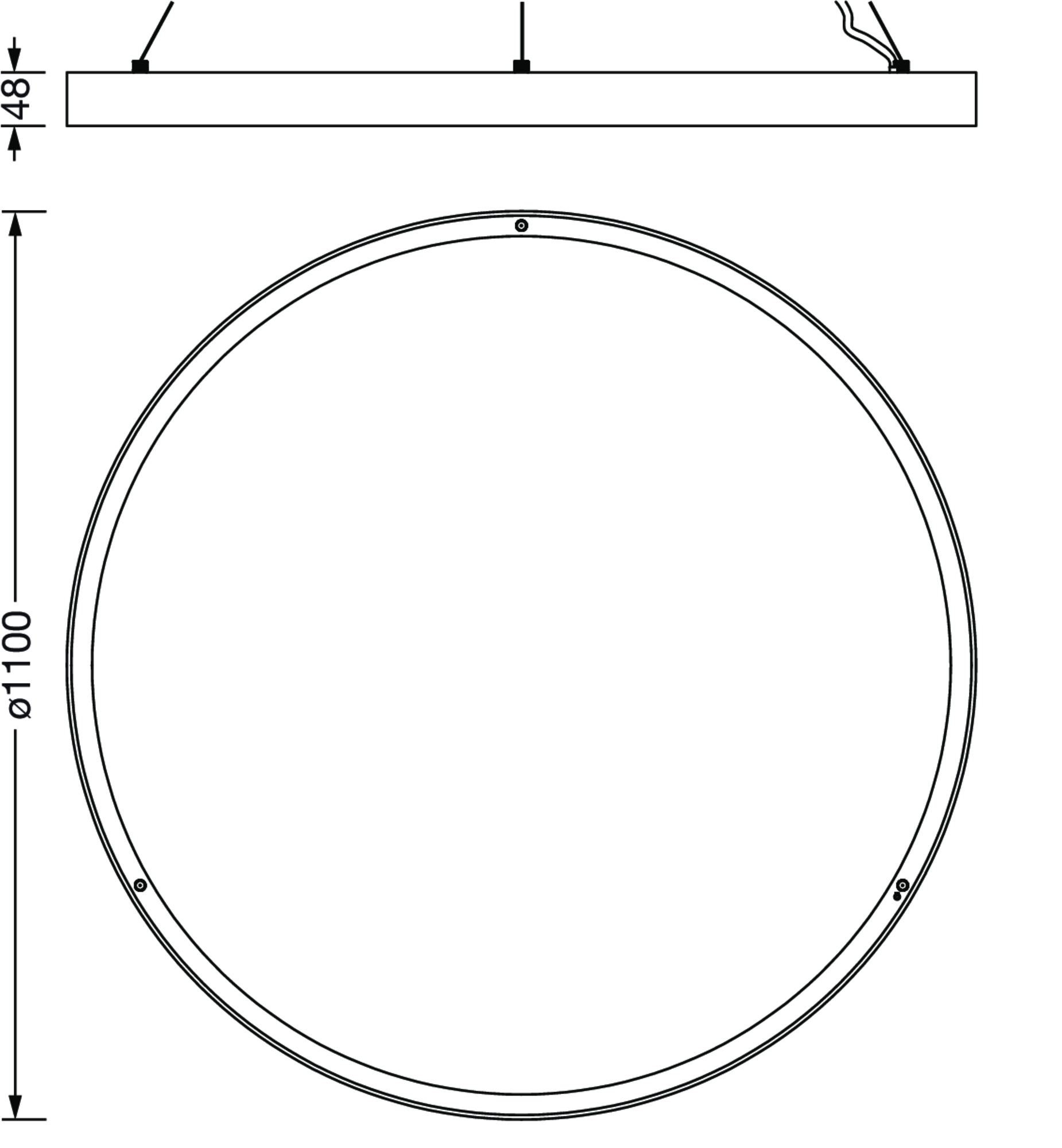

Silica® 21 Ring-O, suspended luminaire, of PMMA, frosted, light emission: outer ring side luminous distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 6.860lm, luminous efficacy: 65lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 230V, AC/DC, 0/50..60Hz, rated input power: 105W, housing, of extruded aluminium section, traffic white (RAL 9016), diameter: 1.100mm, ceiling canopy, traffic white (RAL 9016), protection rating (lamp compartment): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK02, permissible operating ambient temperature: 0..+35°C, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

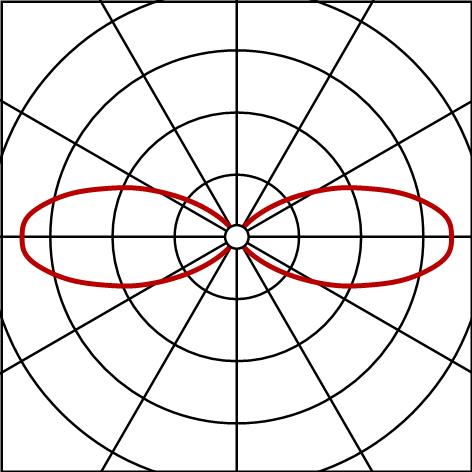

Photometric report / planning data
Sil21Ring-O
6860lm830,DA2,1100,wh
Lamps: 1x LED
Ordercode: 5PJBO3D1004A
