Monsun® Ex, diffuse distribution, ON/OFF, PC
Close
Article damp-proof luminaire
Product name Monsun® Ex
Lamp LED
Rated luminous flux 6560lm
Luminous efficacy 124lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 53W
Service life 60000h (L80/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 5.4kg

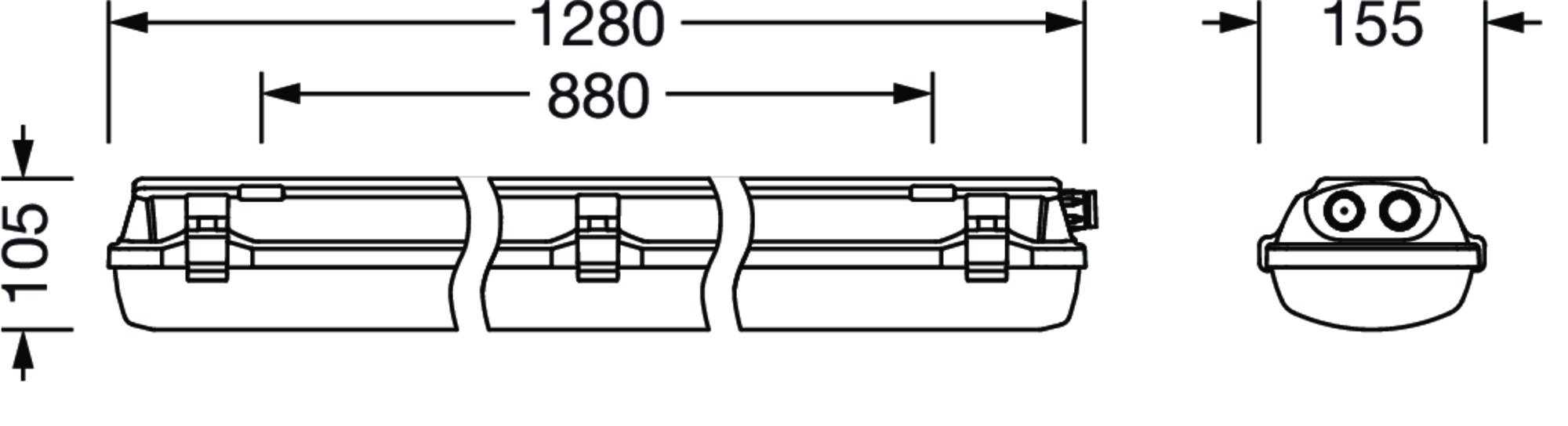

Monsun® Ex, damp-proof luminaire, primary optical cover: cover, of PC, UV-stabilised, opal, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 6.560lm, luminous efficacy: 124lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 3-pole, max. 2.5mm², through-wiring: 5x 2.5mm², mains connection: 220..250V, AC, 50/60Hz, rated input power: 53W, housing, of PC, light grey (RAL 7035), incl. 2x Ex cable gland M20 for cable diameter 7..12mm with sealing, incl. 1x Ex locking screw M20 with sealing, length: 1.280mm, width: 155mm, height: 105mm, clip for enclosure, of stainless steel, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, explosion class: zone 1,21 II 2G Ex eb mb op is IIC T4 Gb, II 2D Ex tb op is IIIC T67°C Db, impact resistance: IK10, permissible operating ambient temperature: -20..+40°C, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

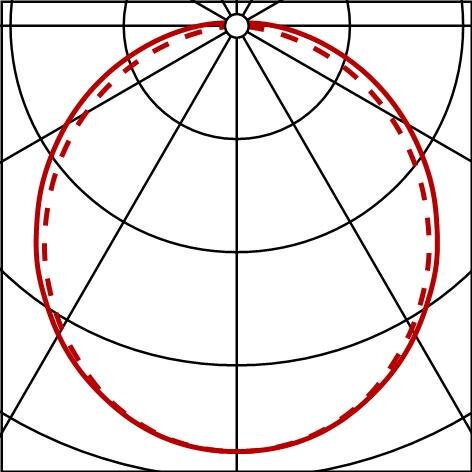

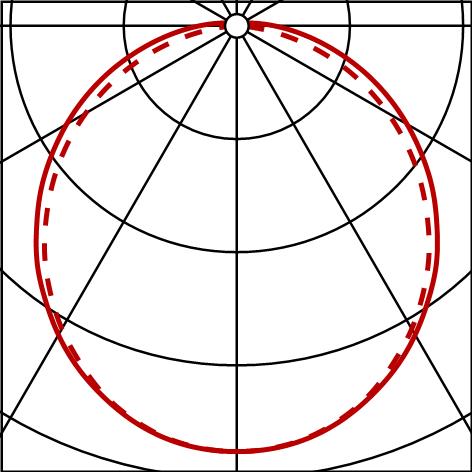

Photometric report / planning data

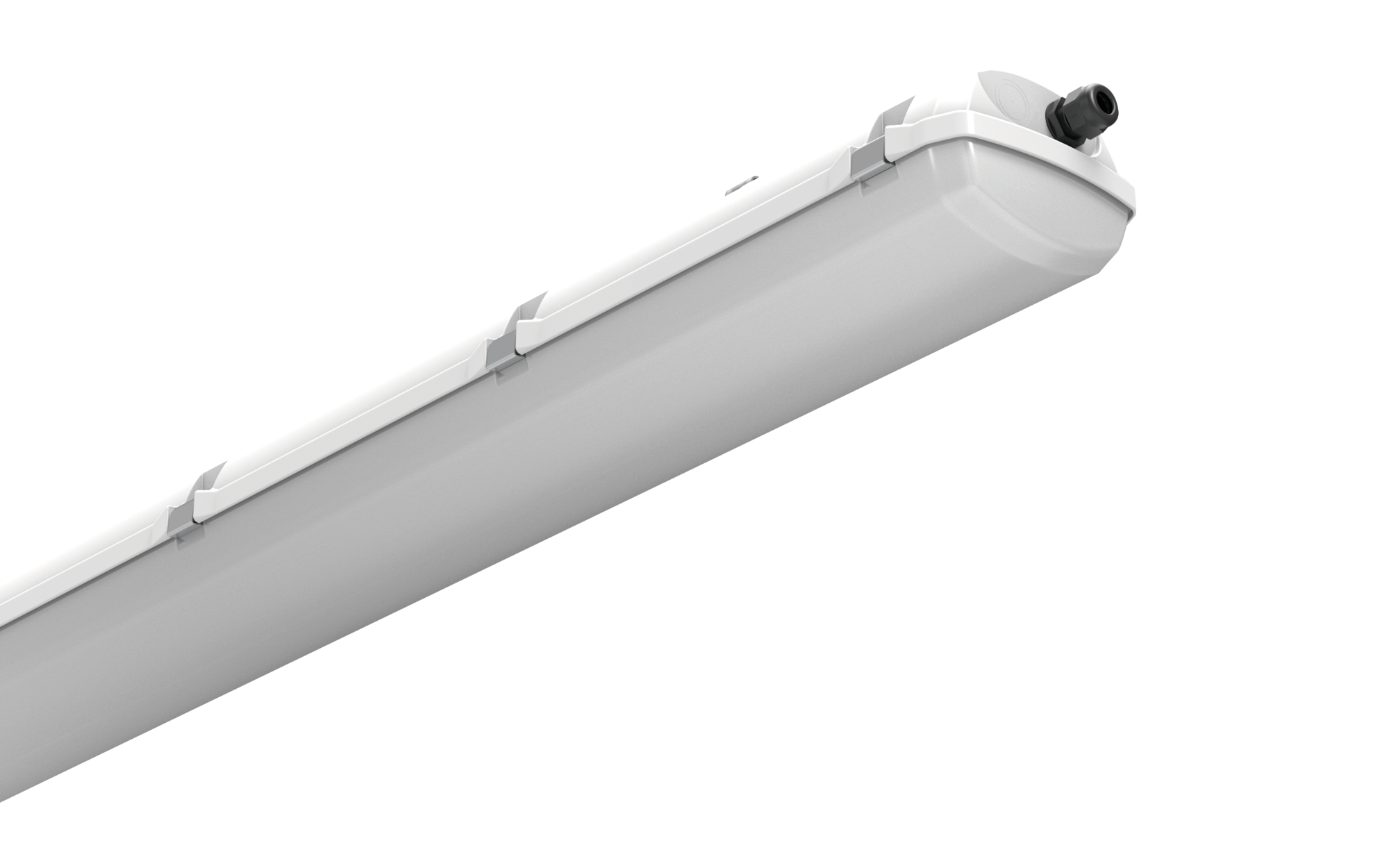

Monsun® Ex
LED, ECG, with through-wiring 5x 2.5mm², cover, surface-mounted, L= 1280mm
Lamps: 1x LED
Ordercode: 51FXA27L460A
