Highbay 11Xtreme, narrow distribution, 1x LED, 840, DALI 2, AC, ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension)
Close
Article high bay luminaire
Product name Highbay 11Xtreme
Lamp LED
Rated luminous flux 34200lm
Luminous efficacy 182lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 188W
Service life 100000h (L85/B50) at AT = 45°C
Protection rating IP66
Impact resistance IK08
Weight 10.1kg

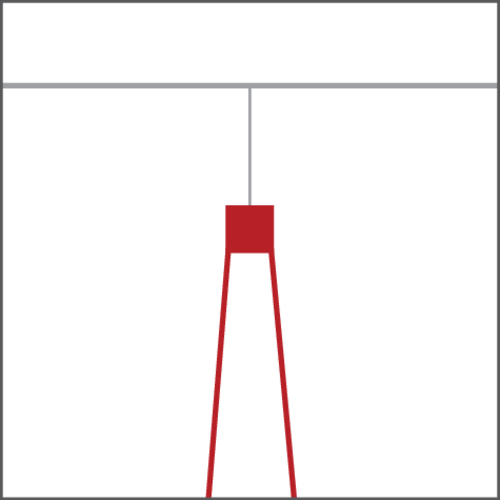

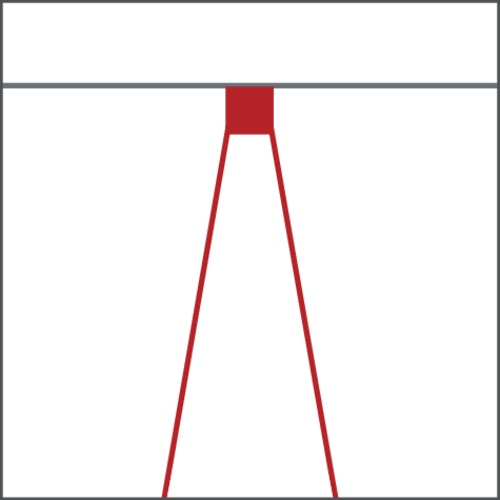

Highbay 11Xtreme, high bay luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, 1x LED module,for 1x LED, rated luminous flux: 34.200lm, luminous efficacy: 182lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with cable H07RN-F 5x 1.5mm², mains connection: 220..240V, AC, 50/60Hz, cable length: 1,5m, rated input power: 188W, luminaire housing, of diecast aluminium, partly coated, silver, length: 595mm, width: 280mm, height: 195mm, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, UKCA, protection symbol: D, ball protection: ball impact resistant according to DIN VDE 0710 part 13 (with chain suspension), impact resistance: IK08, permissible operating ambient temperature: -25..+45°C, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

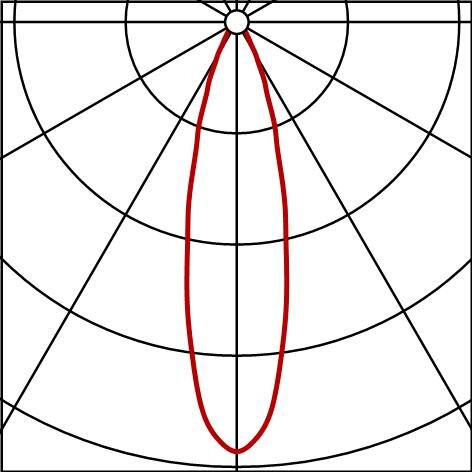

Photometric report / planning data
HB11Xtr
nrrw,34200lm840,DA2,bir
Lamps: 1x LED
Ordercode: 51HF81DA4NMA
