DL® 20, direct asymmetric wide distribution, ST1.2a
Close

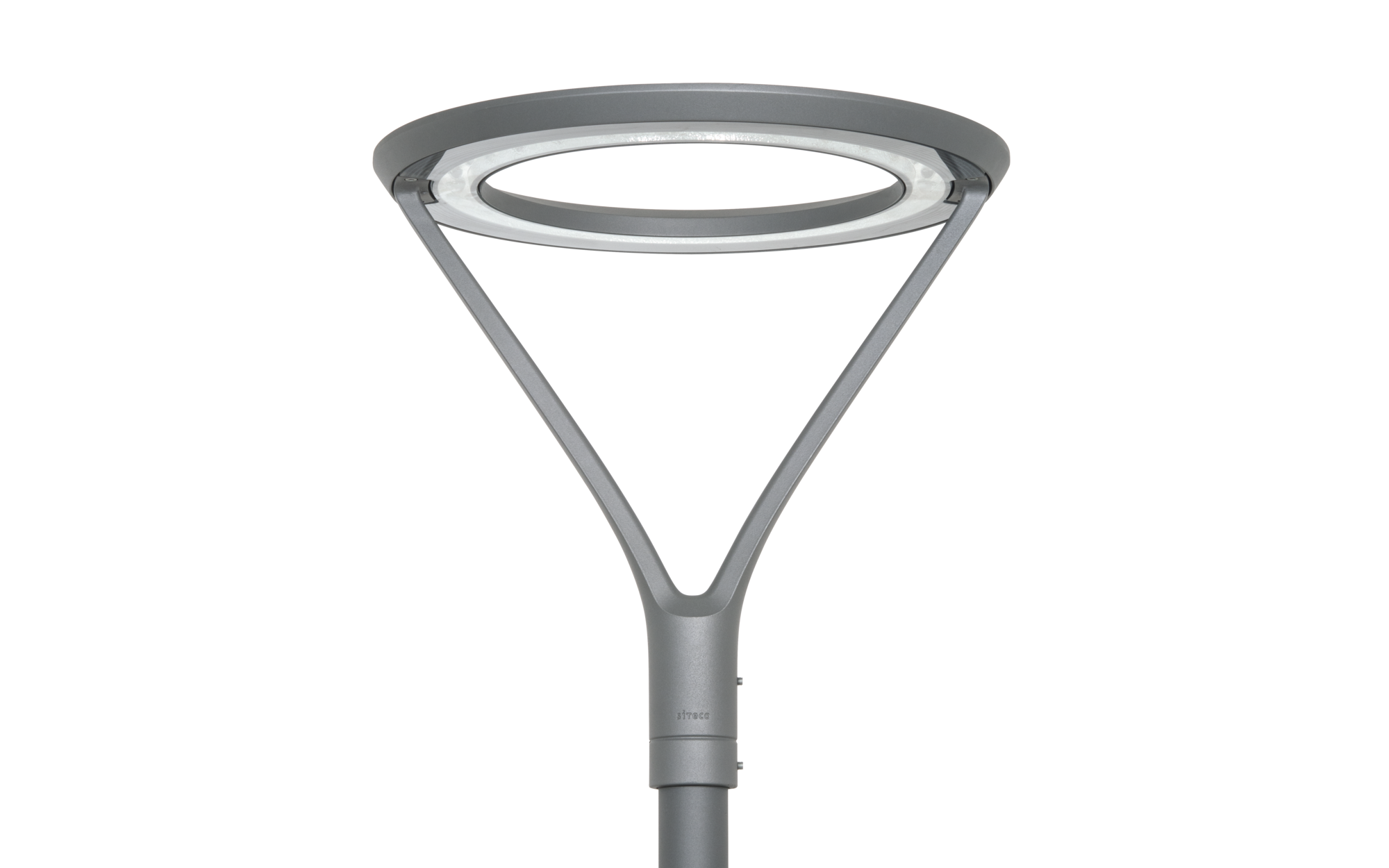

Article mast luminaire
Product name DL® 20
Lamp LED
Rated luminous flux 4180lm
Luminous efficacy 79lm/W
Colour temperature 2200K
Colour rendering CRI > 70
Pnom begin service life 53
Pnom end service life 54
Pred at 50% lumin. flux 24
Service life 100000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 13.5kg

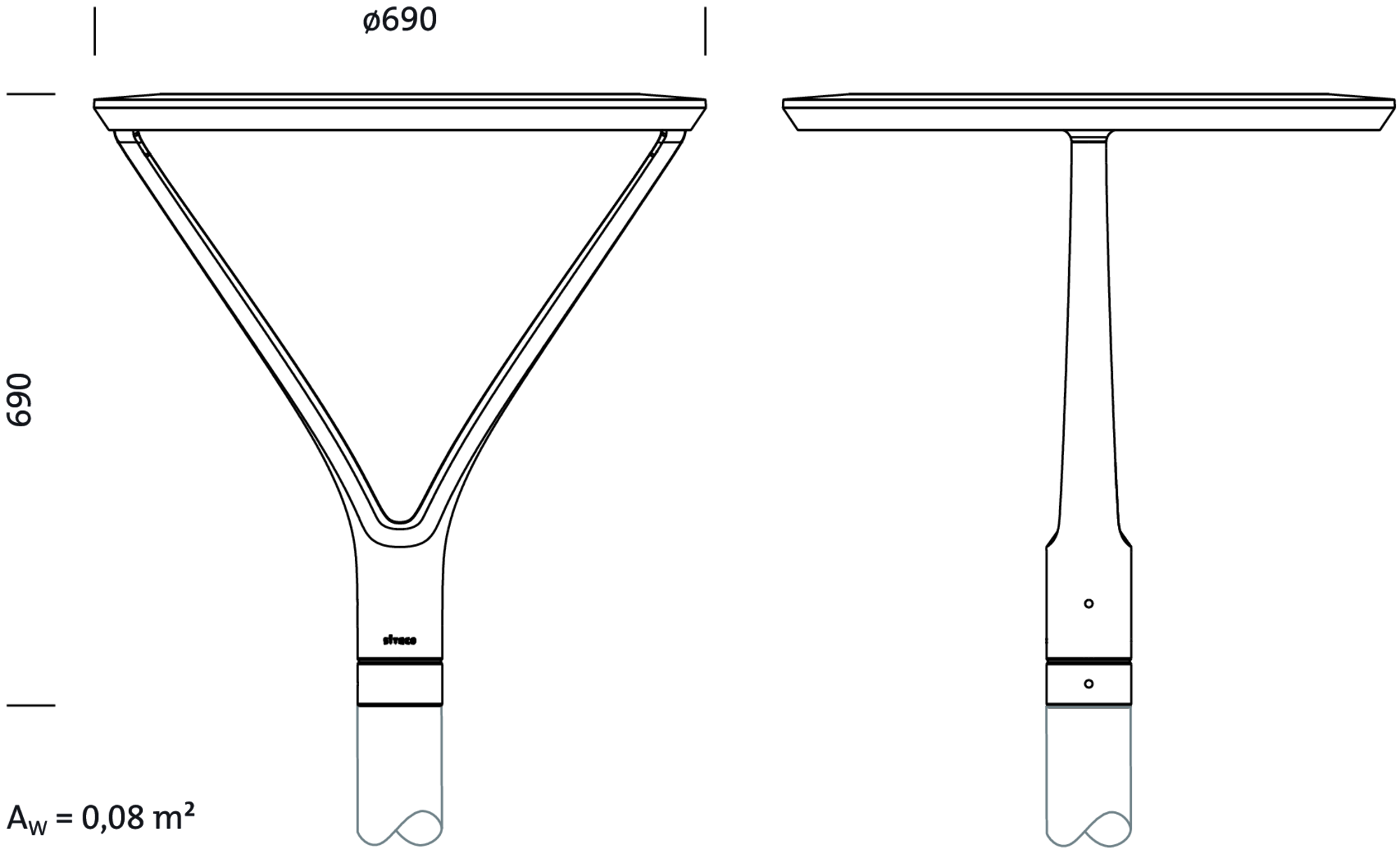

DL® 20, mast luminaire, primary light control with reflector, highly specular, primary optical cover: cover, of toughened safety glass of clear glass with excellent transmission level, light distribution: ST1.2a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, LED, High Power LED, rated luminous flux: 4.180lm, luminous efficacy: 79lm/W, light colour: 722, colour temperature: 2200K, control gear: Plus, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, digital communication interface, power reduction, overheat protection, electronic power reduction, mains connection: 230..240V, 50/60Hz, connection cable pre-assembled, cable length: 5m, start of lifetime: 53W, end of service life: 54W, reduction: 24W, luminaire housing, upper part, of cast aluminium, powder-coated, Siteco® metallic grey (DB 702S), diameter: 690mm, height: 690mm, spigot size: 76mm (post-top), mounting height: 4..6m, luminaire housing, of cast aluminium, powder-coated, Siteco® metallic grey (DB 702S), equipment: Power, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK08, permissible operating ambient temperature: -25..+30°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

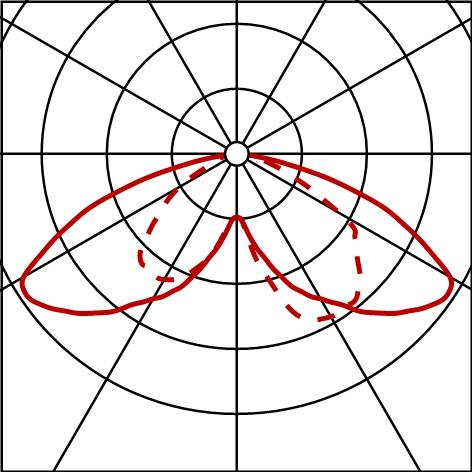

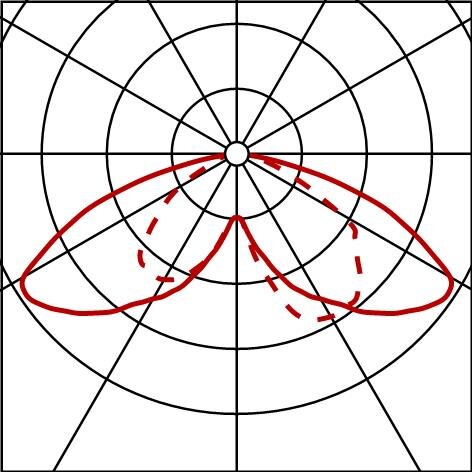

Photometric report / planning data
DL20
ST1.2a,4180lm722,Plus
Lamps: 1x LED
Order No.: 5XA512832A008P
