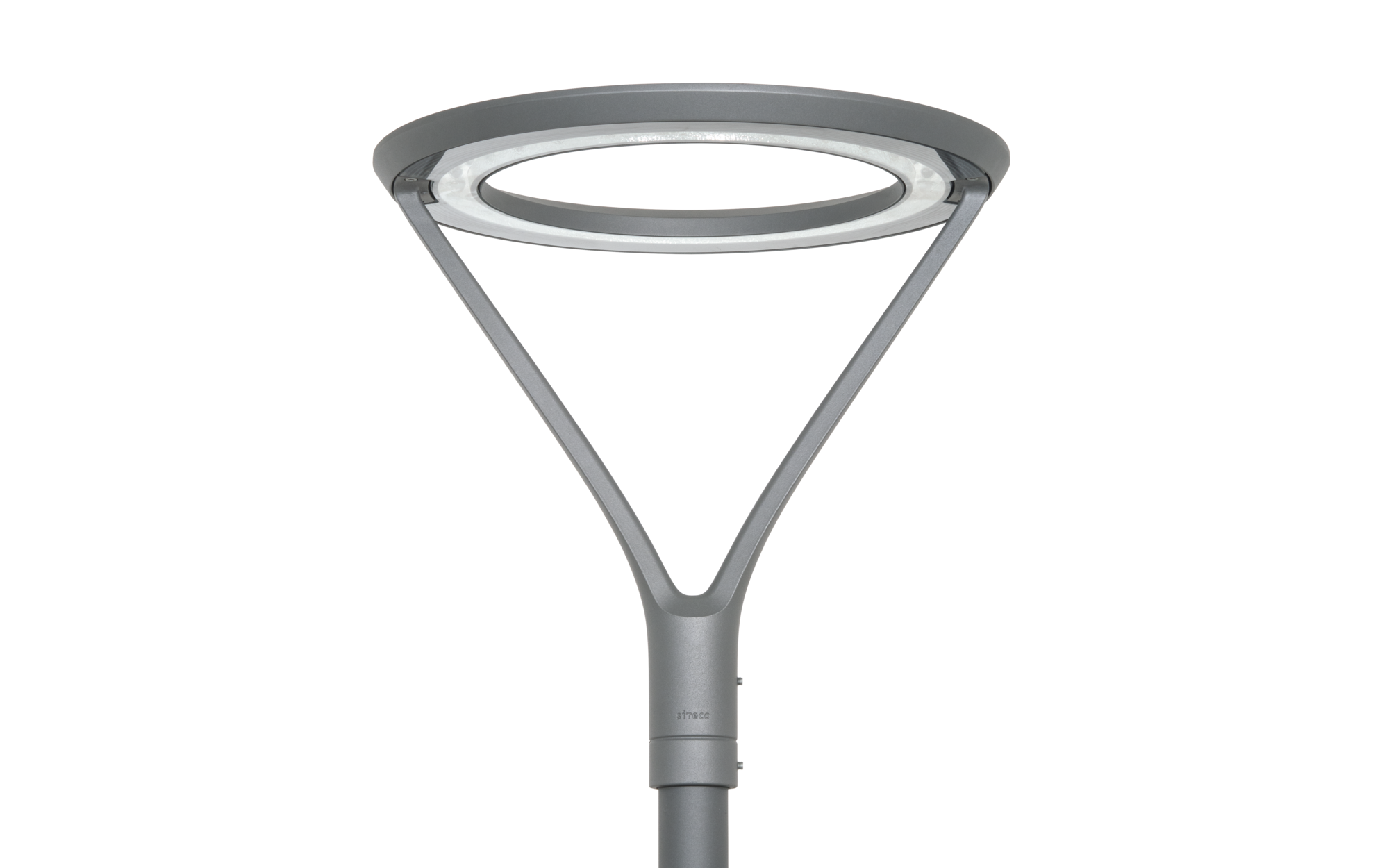

DL® 20, direct symmetric wide distribution, PL1.2s
Close
Article mast luminaire
Product name DL® 20
Lamp LED
Rated luminous flux 3050lm
Luminous efficacy 107lm/W
Colour temperature 2700K
Colour rendering CRI > 70
Pnom begin service life 29
Pnom end service life 29
Pred at 50% lumin. flux 15
Service life 100000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 13.5kg

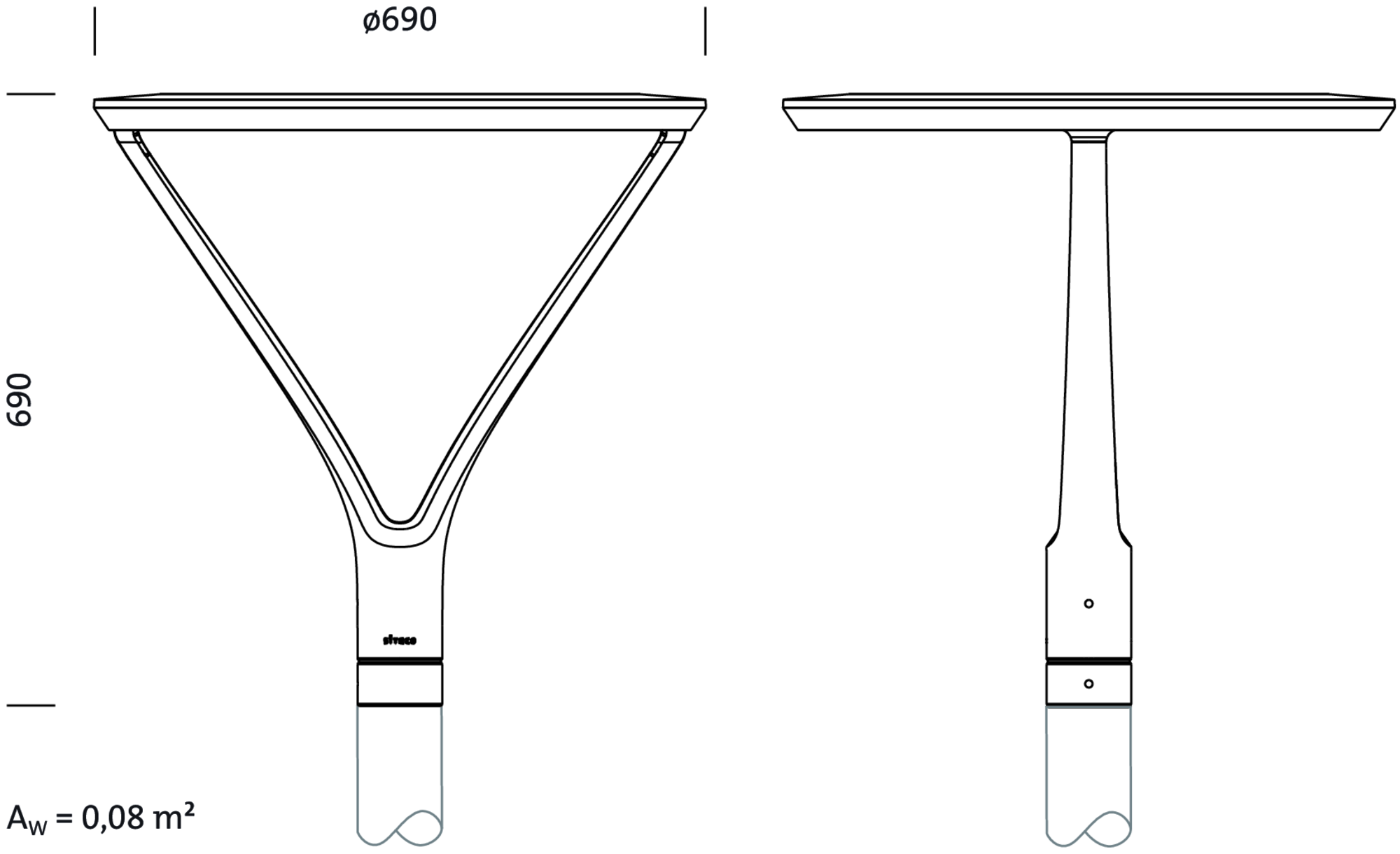

DL® 20, mast luminaire, primary light control with reflector, highly specular, primary optical cover: cover, of toughened safety glass of clear glass with excellent transmission level, light distribution: PL1.2s, light emission: direct distribution, primary light characteristic: symmetric, installation type: post-top, LED, High Power LED, rated luminous flux: 3.050lm, luminous efficacy: 107lm/W, light colour: 727, colour temperature: 2700K, control gear: Plus, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, digital communication interface, power reduction, overheat protection, electronic power reduction, mains connection: 220..240V, 50/60Hz, connection cable pre-assembled, cable length: 5m, start of lifetime: 29W, end of service life: 29W, reduction: 15W, luminaire housing, upper part, of cast aluminium, powder-coated, Siteco® metallic grey (DB 702S), diameter: 690mm, height: 690mm, spigot size: 76mm (post-top), mounting height: 4..6m, luminaire housing, of cast aluminium, powder-coated, Siteco® metallic grey (DB 702S), equipment: standard, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK08, permissible operating ambient temperature: -25..+35°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

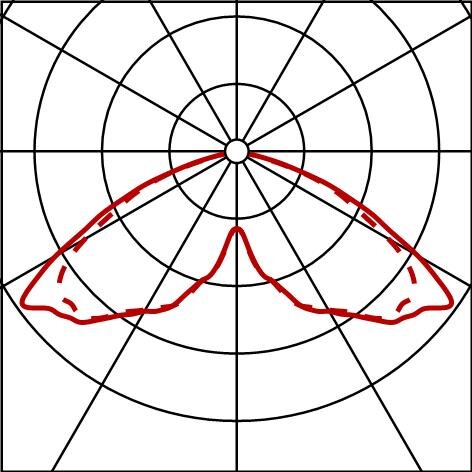

Photometric report / planning data
DL20
PL1.2s,3050lm727,Plus
Lamps: 1x LED
Order No.: 5XA512836S008
