CL 31 Bollard 90, asymmetric extremely wide distribution, DALI
Close

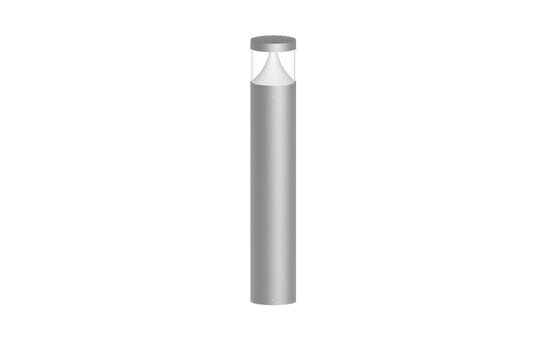

Article bollard luminaire
Product name CL 31 Bollard 90
Lamp LED
Rated luminous flux 1500lm
Luminous efficacy 107lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 14W
Service life 100000h (L80/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK10
Weight 7.0kg

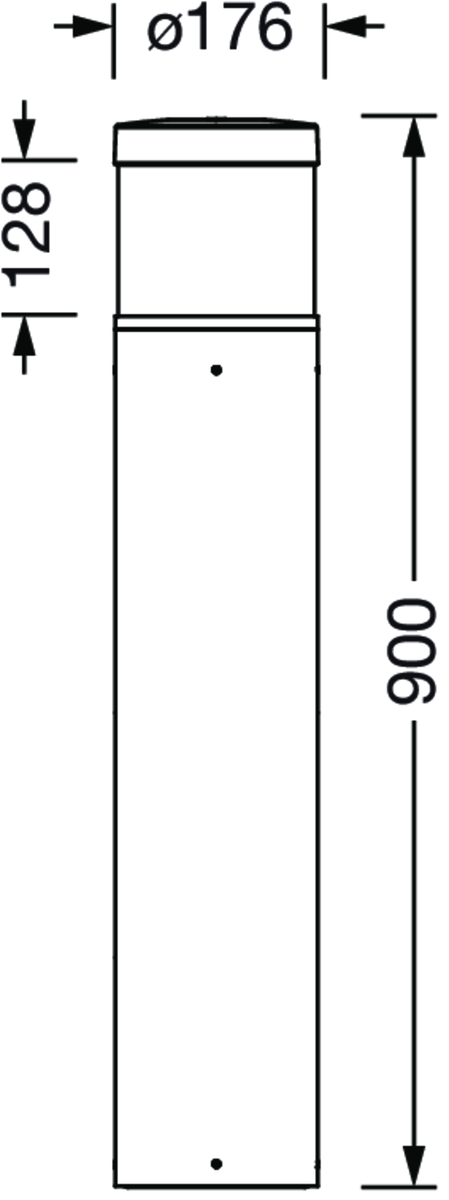

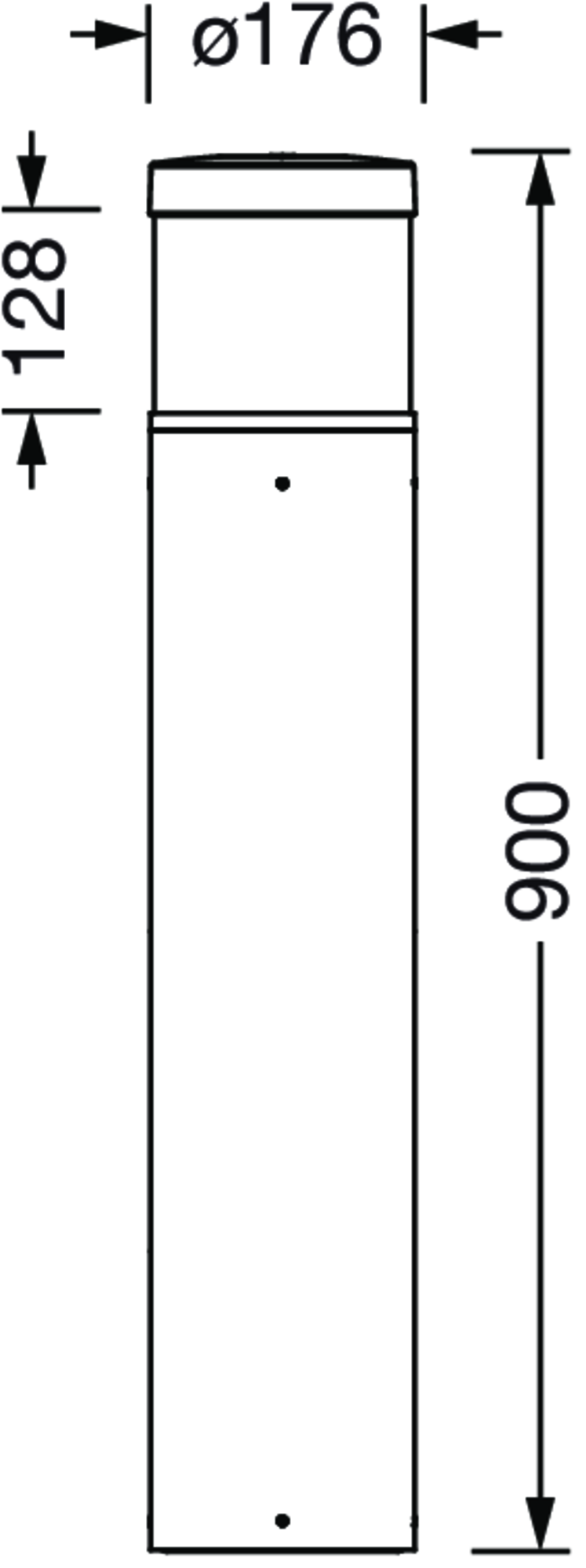

CL 31 Bollard 90, bollard luminaire, primary light control with lens, of PC, primary optical cover: cover panel, of PC, transparent, secondary light control with reflector, of PC, primary light characteristic: asymmetric, LED, rated luminous flux: 1.500lm, luminous efficacy: 107lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI, with terminal, 5-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 14W, luminaire housing, of aluminium, powder-coated, Siteco® metallic grey, diameter: 170mm, height: 900mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -20..+50°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

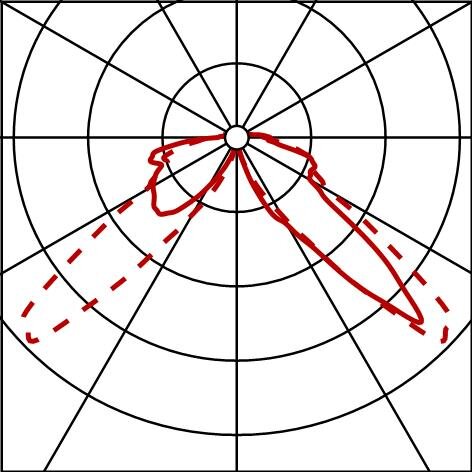

Photometric report / planning data
CL31Bollard90
1500lm830,DA
Lamps: 1x LED
Order No.: 5CL444603
