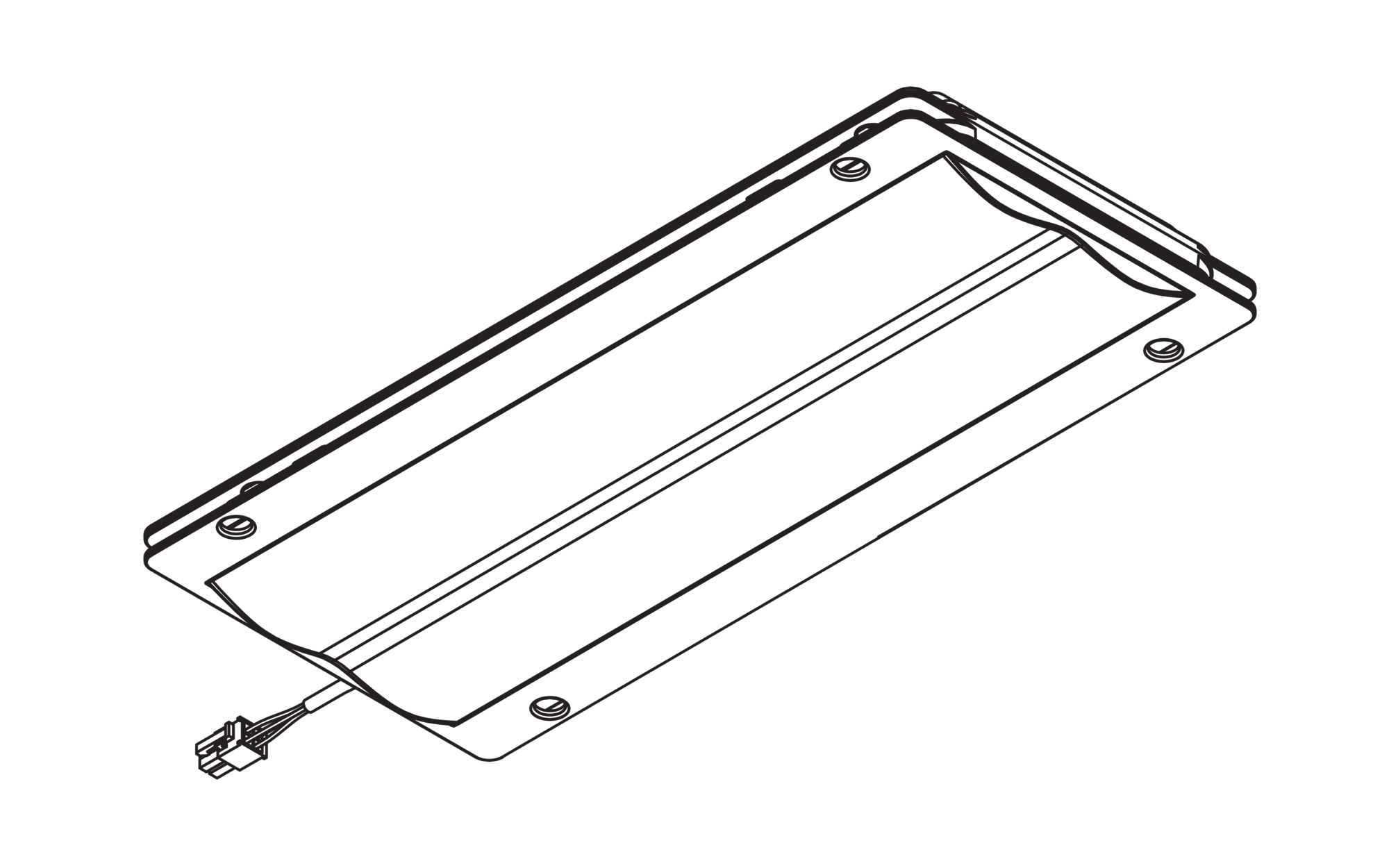

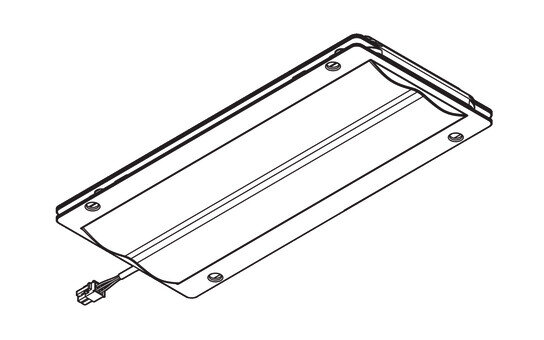

Streetlight 10 mini/midi, LED module, asymmetric wide distribution, ST1.2a

Close
Order No.: 5XMOD1115A
Remember articleRemember article

Article LED module
Product name Streetlight 10 mini/midi
Colour temperature 5000K
Colour rendering CRI > 70
Protection rating as luminaire
Weight 0.8kg

Streetlight 10 mini/midi, LED module, light distribution: ST1.2a, primary light characteristic: asymmetric, High Power LED, light colour: 750, colour temperature: 5000K, mains connection: 230..240V, 50Hz, LED module, length: 310mm, width: 137mm, height: 40mm, protection rating (complete): as luminaire, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type LED module
Product name Streetlight 10 mini/midi
Order No. 5XMOD1115A

Lighting technology

Light distribution ST1.2a
Beam angle wide distribution
Symmetry asymmetric distribution

Lamps

Lamps with High Power LED
Colour temperature 5000K
Colour rendering index CRI > 70
Light colour 750
Supplement power consumption when used in Streetlight 10 Plus luminaires: construction size mini 17.7..24.9W, construction size midi 48.6..69.9W

Certificates, Standards

Protection rating as luminaire

Electrical connection

Nominal voltage 230..240V, 50Hz

Dimensions, Weight

Length 310mm
Width 137mm
Height 40mm
Weight 0.8kg

Product type
LED module

Product name
Streetlight 10 mini/midi

Order No.
5XMOD1115A

Light distribution
ST1.2a

Beam angle
wide distribution

Symmetry
asymmetric distribution

Lamps
with High Power LED

Colour temperature
5000K

Colour rendering index
CRI > 70

Light colour
750

Supplement
power consumption when used in Streetlight 10 Plus luminaires: construction size mini 17.7..24.9W, construction size midi 48.6..69.9W

Protection rating
as luminaire

Nominal voltage
230..240V, 50Hz

Length
310mm

Width
137mm

Height
40mm

Weight
0.8kg
