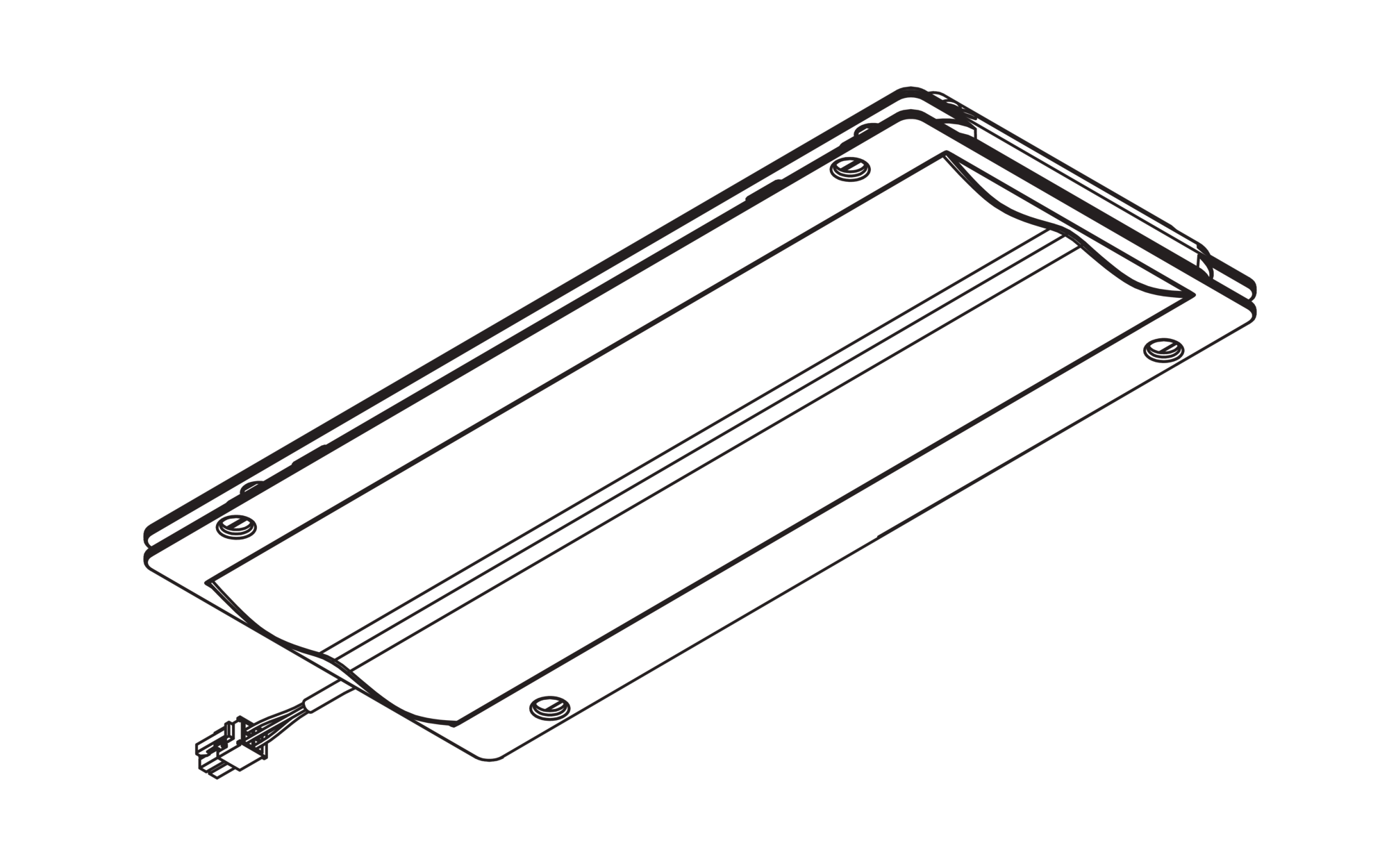

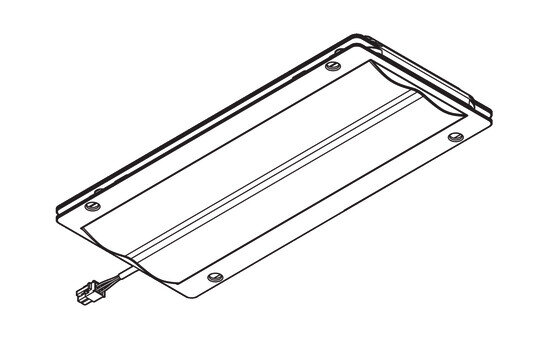

Streetlight 10 mini/midi, LED module, PC-L

Close
Order No.: 5XMOD1115M
Remember articleRemember article

Article LED module
Product name Streetlight 10 mini/midi
Colour temperature 4000K
Colour rendering CRI > 70
Protection rating as luminaire
Weight 1.2kg

Streetlight 10 mini/midi, LED module, primary light control with pedestrian crossing, asymmetric left distribution, light distribution: PC-L, High Power LED, light colour: 740, colour temperature: 4000K, mains connection: 230..240V, 50Hz, LED module, length: 310mm, width: 137mm, height: 40mm, protection rating (complete): as luminaire, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type LED module
Product name Streetlight 10 mini/midi
Order No. 5XMOD1115M

Lighting technology

Light control pedestrian crossing, asymmetric left distribution
Light distribution PC-L

Lamps

Lamps with High Power LED
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
Supplement power consumption when used in Streetlight 10 Plus luminaires: construction size mini 16.2..22.8W, construction size midi 45.1..63.6W

Certificates, Standards

Protection rating as luminaire

Electrical connection

Nominal voltage 230..240V, 50Hz

Dimensions, Weight

Length 310mm
Width 137mm
Height 40mm
Weight 1.2kg

Product type
LED module

Product name
Streetlight 10 mini/midi

Order No.
5XMOD1115M

Light control
pedestrian crossing, asymmetric left distribution

Light distribution
PC-L

Lamps
with High Power LED

Colour temperature
4000K

Colour rendering index
CRI > 70

Light colour
740

Supplement
power consumption when used in Streetlight 10 Plus luminaires: construction size mini 16.2..22.8W, construction size midi 45.1..63.6W

Protection rating
as luminaire

Nominal voltage
230..240V, 50Hz

Length
310mm

Width
137mm

Height
40mm

Weight
1.2kg
