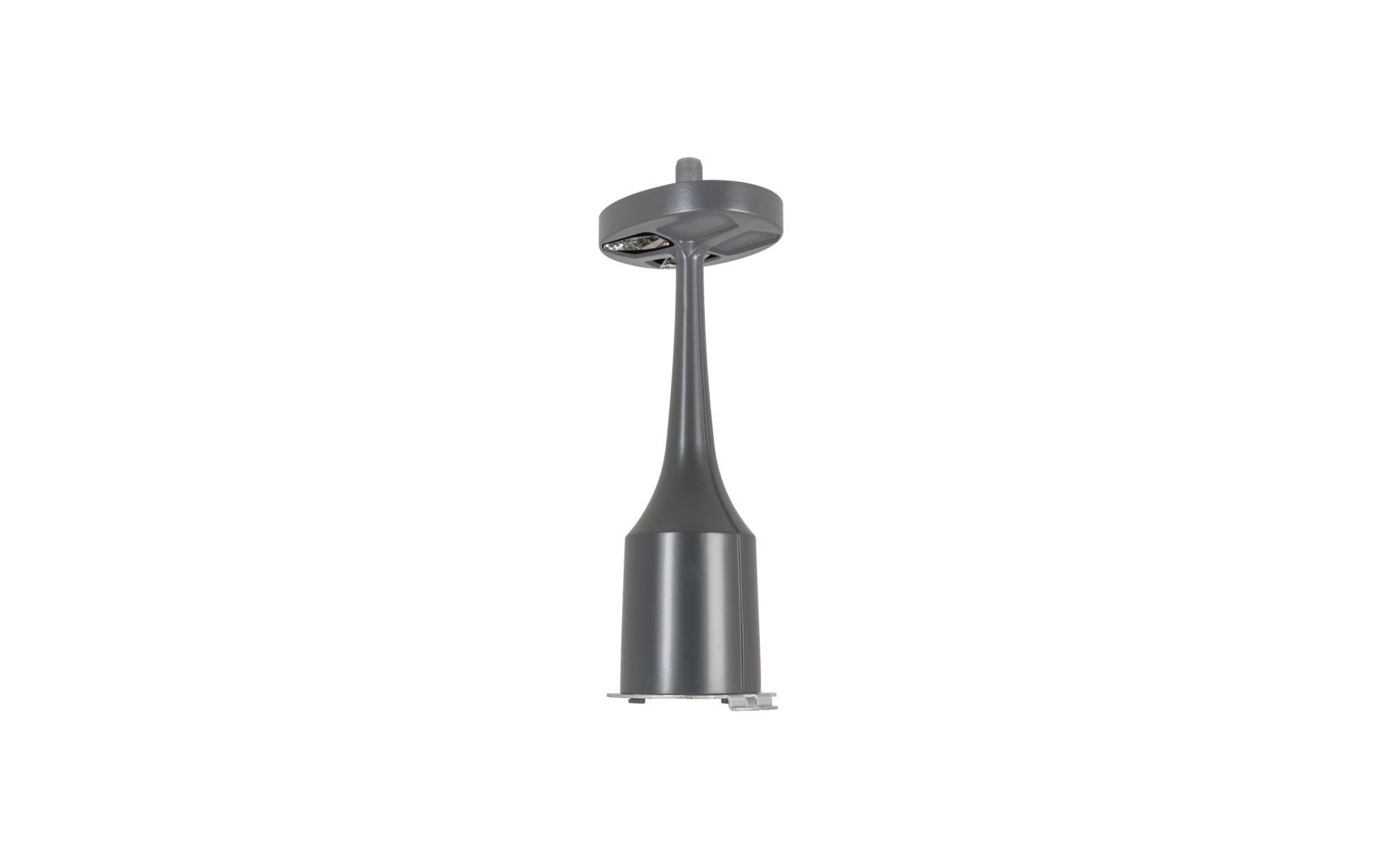

Module 540 iQ, Siteco® metallic grey (DB 702S), highly asymmetric extremely wide distribution, P1.0a, standard

Close
Ordercode: 5XA5405LF008
Remember productRemember product

Article electrics components group
Product name Module 540 iQ
Lamp LED
Rated luminous flux 1510lm
Luminous efficacy 151lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 10
Pnom end service life 10
Pred at 50% lumin. flux 5
Weight 2.7kg

electrics components group, for Module 540 iQ, gear tray, control gear: ECG iQ, LED luminous flux: 1.510 lm, colour temperature: 4000K, with terminal, 6-pole, max. 2.5mm², mains connection: 230..240V, AC, 50/60Hz, start of lifetime: 10 W, end of service life: 10 W, reduction: 5 W, primary light characteristic: strongly asymmetric, width: 190 mm, height: 514mm, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type electrics components group
Product name Module 540 iQ
Order No. 5XA5405LF008

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Light distribution P1.0a
Beam angle extremely wide distribution
Symmetry strongly asymmetric

Lamps

Lamps with High Power LED, LED
Rated luminous flux 1510lm
Luminous efficacy 151lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power begin service life 10
Rated input power end service life 10
Rated input power at 50% lumin. flux 5

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

Colour specification Siteco® metallic grey (DB 702S)

Electrical connection

Connection terminal, 6-pole, max. 2.5mm²
Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

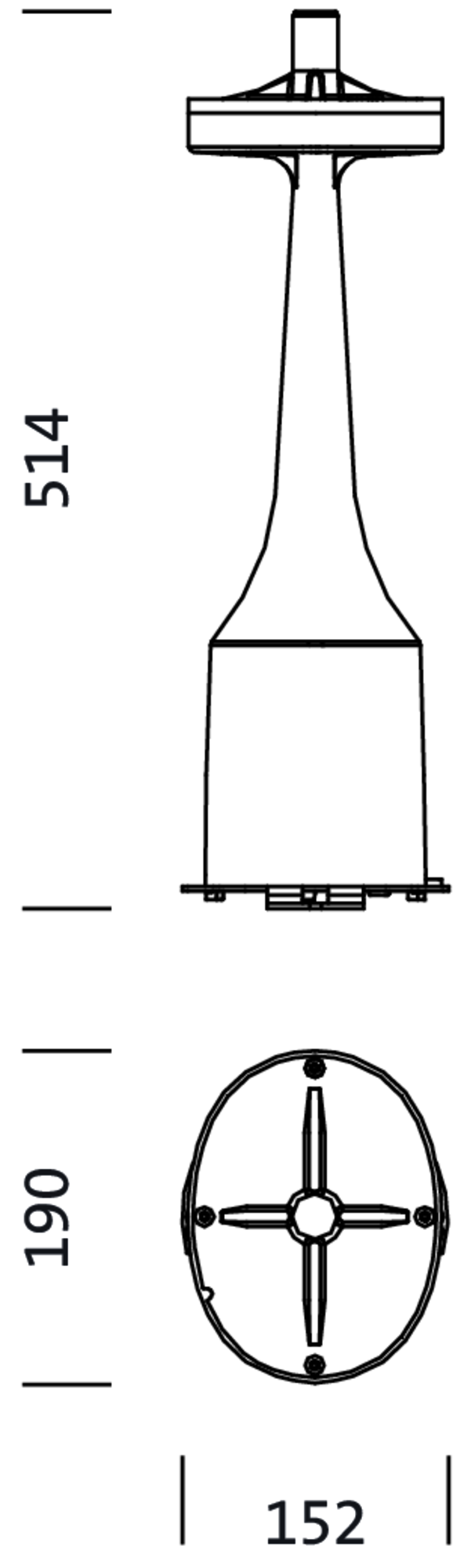

Dimensions, Weight

Width 190mm
Height 514mm
Weight 2.7kg

Product type
electrics components group

Product name
Module 540 iQ

Order No.
5XA5405LF008

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Light distribution
P1.0a

Beam angle
extremely wide distribution

Symmetry
strongly asymmetric

Lamps
with High Power LED, LED

Rated luminous flux
1510lm

Luminous efficacy
151lm/W

Colour temperature
4000K

Colour rendering index
CRI > 70

Light colour
740

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

Rated input power begin service life
10

Rated input power end service life
10

Rated input power at 50% lumin. flux
5

Control gear
ECG iQ

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Insulation class
insulation class II (safety insulation)

Certification, designation
CE, ENEC, VDE

Colour specification
Siteco® metallic grey (DB 702S)

Connection
terminal, 6-pole, max. 2.5mm²

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Width
190mm

Height
514mm

Weight
2.7kg
