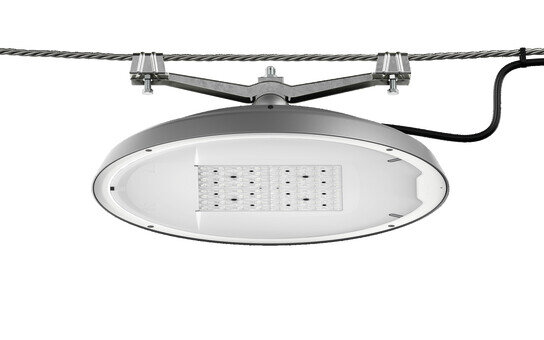

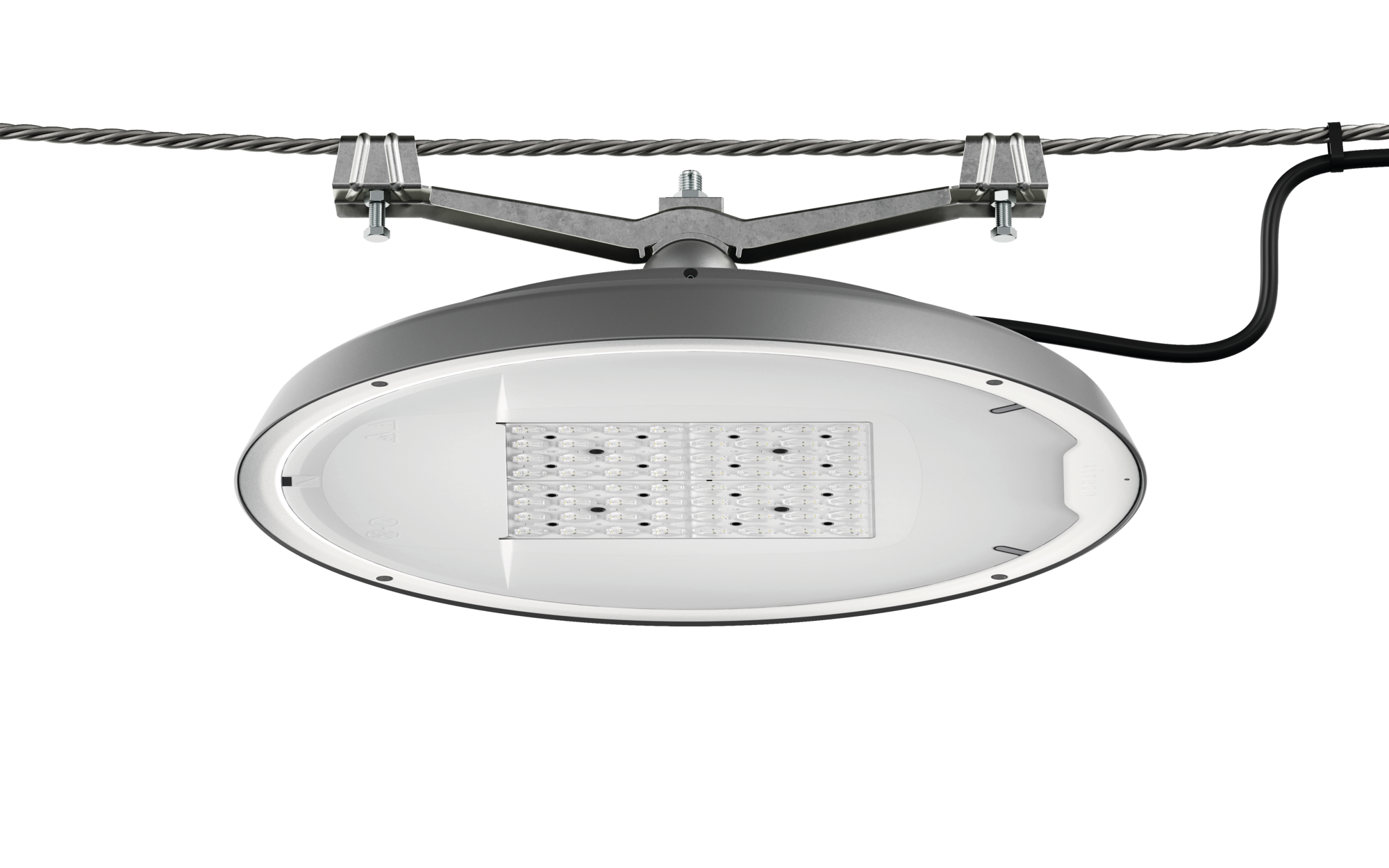

DL® 50 iQ mini, direct symmetric wide distribution, ST0.8s

Order No.: 5XA248V41F08ME

Article catenary luminaire
Product name DL® 50 iQ mini
Lamp LED
Rated luminous flux 15660lm
Luminous efficacy 154lm/W
Colour temperature 4000K
Colour rendering CRI > 70
P_nom begin service life 102
P_nom end service life 111
P_red at 50% lumin. flux 45
Service life 100000h (L90/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 9.9kg

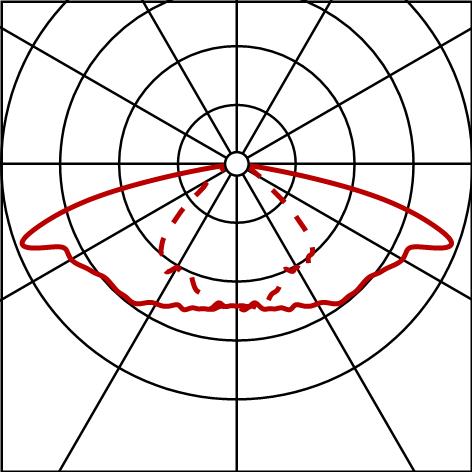

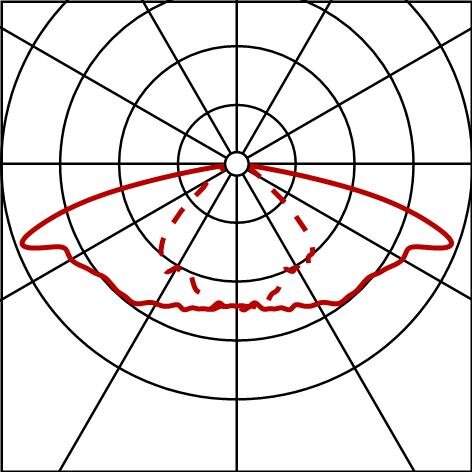

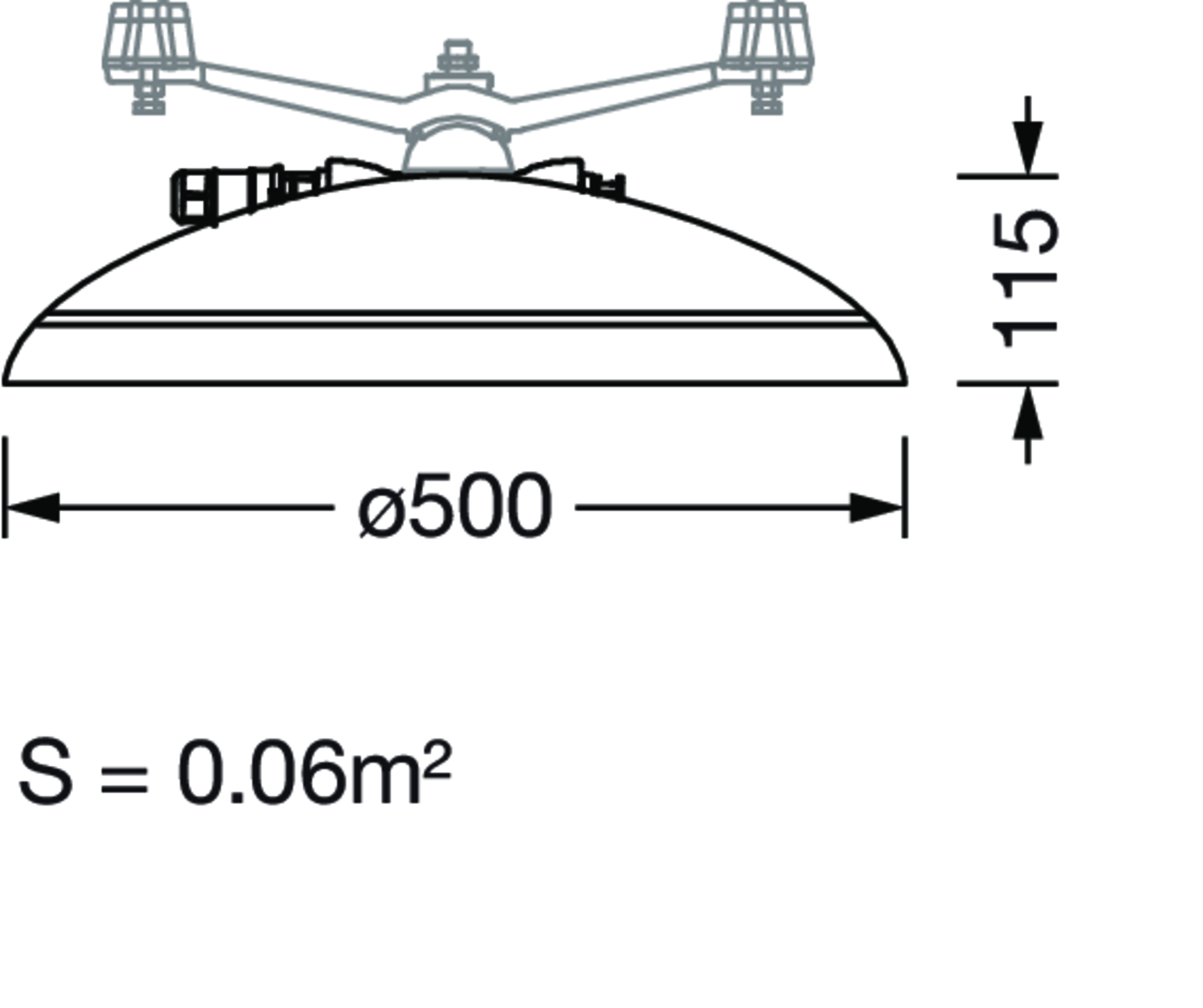

DL® 50 iQ mini, catenary luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: ST0.8s, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, High Power LED, rated luminous flux: 15.660lm, luminous efficacy: 154lm/W, light colour: 740, colour temperature: 4000K, control gear: iQ Street-Remote, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, mains connection: 230..240V, AC, 50/60Hz, start of lifetime: 102W, end of service life: 111W, reduction: 45W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), diameter: 500mm, height: 115mm, mounting height: 4..12m, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK08, permissible operating ambient temperature for outdoor applications: -25..+40°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
