multi-sensor PC4

Close
Order No.: 5LZ935202A
Remember articleRemember article

Article multi-sensor
Product name SITECO Connect
Protection rating IP20
Weight 0.1kg

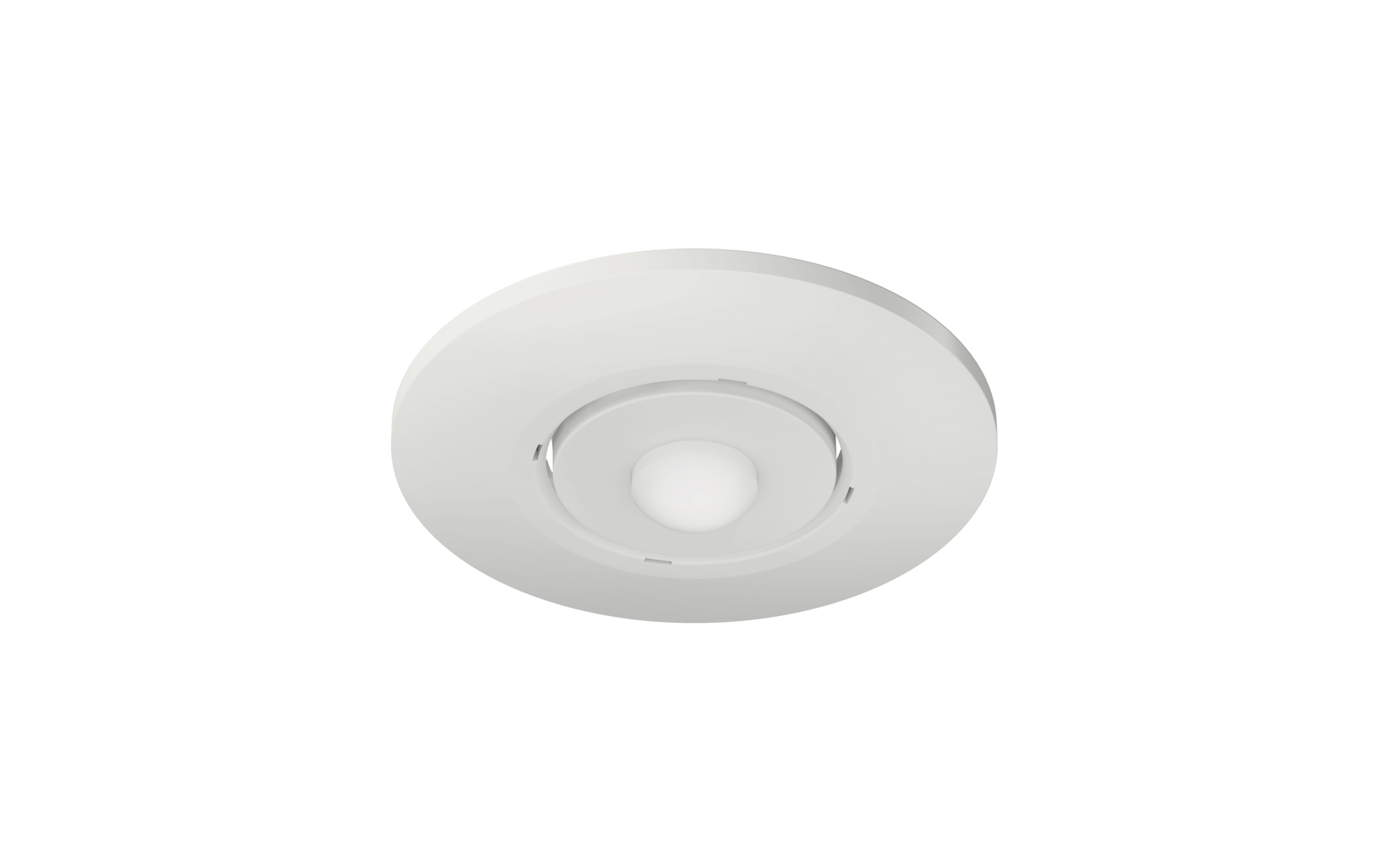

SITECO Connect, multi-sensor, installation type: recessed, control gear: DALI 2, housing, of plastic, matt pure white (RAL 9010), length: 86mm, width: 86mm, height: 63mm, recess depth: 30mm, multi-sensor PC4, local control - self-sufficient standalone sensorscentral control - connection to lighting or building management, equipment: slave, dimmable, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible operating ambient temperature: -10..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Office
Product type multi-sensor
Product name SITECO Connect
Order No. 5LZ935202A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) -10..+40°C
Certification, designation CE

Material, Colour

housing plastic, matt pure white (RAL 9010)
Colour specification matt pure white (RAL 9010)

Mounting

Mounting method, mounting location recessed, in the ceiling
Mounting height 2..5m
Supplement only suitable for use in indoor areas

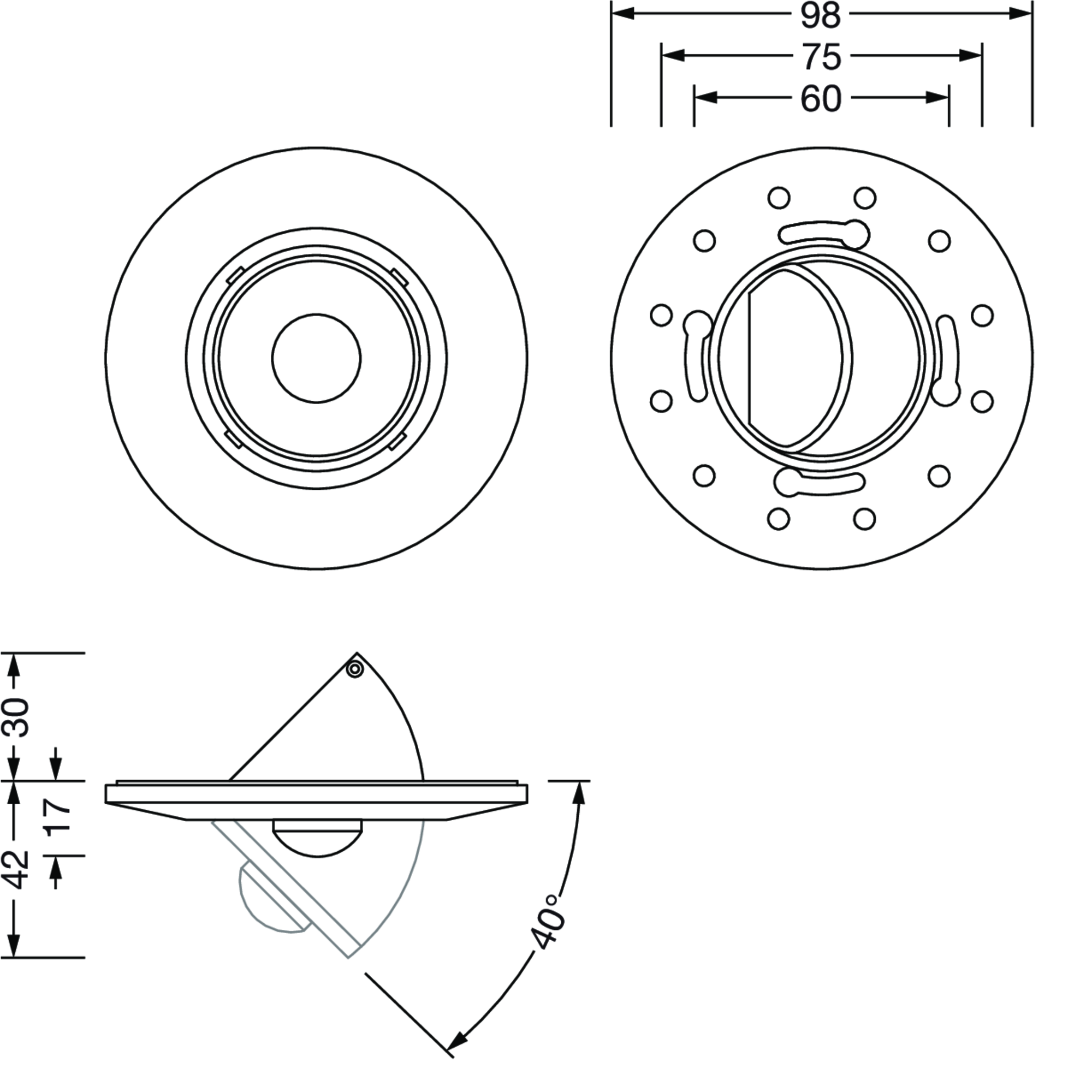

Dimensions, Weight

Length 86mm
Width 86mm
Height 63mm
Recess depth 30mm
Weight 0.1kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°
Detection range radial min. ø5m, max. ø7m; tangential min. ø6.5m, max. ø8.5m
Detection range min. ø3.5m, max. ø6.0m
Feature circular detection area

Outputs

1x LED red/green
Feature for displaying initialization

System family
SITECO Connect 31 Office

Product type
multi-sensor

Product name
SITECO Connect

Order No.
5LZ935202A

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-10..+40°C

Certification, designation
CE

housing
plastic, matt pure white (RAL 9010)

Colour specification
matt pure white (RAL 9010)

Mounting method, mounting location
recessed, in the ceiling

Mounting height
2..5m

Supplement
only suitable for use in indoor areas

Length
86mm

Width
86mm

Height
63mm

Recess depth
30mm

Weight
0.1kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
radial min. ø5m, max. ø7m; tangential min. ø6.5m, max. ø8.5m

Detection range
min. ø3.5m, max. ø6.0m

Feature
circular detection area

1x LED red/green

Feature
for displaying initialization
