multi-sensor PS2

Close
Order No.: 5LZ925601
Remember articleRemember article

Article sensor
Product name SITECO Connect
Protection rating IP20
Weight 0.2kg

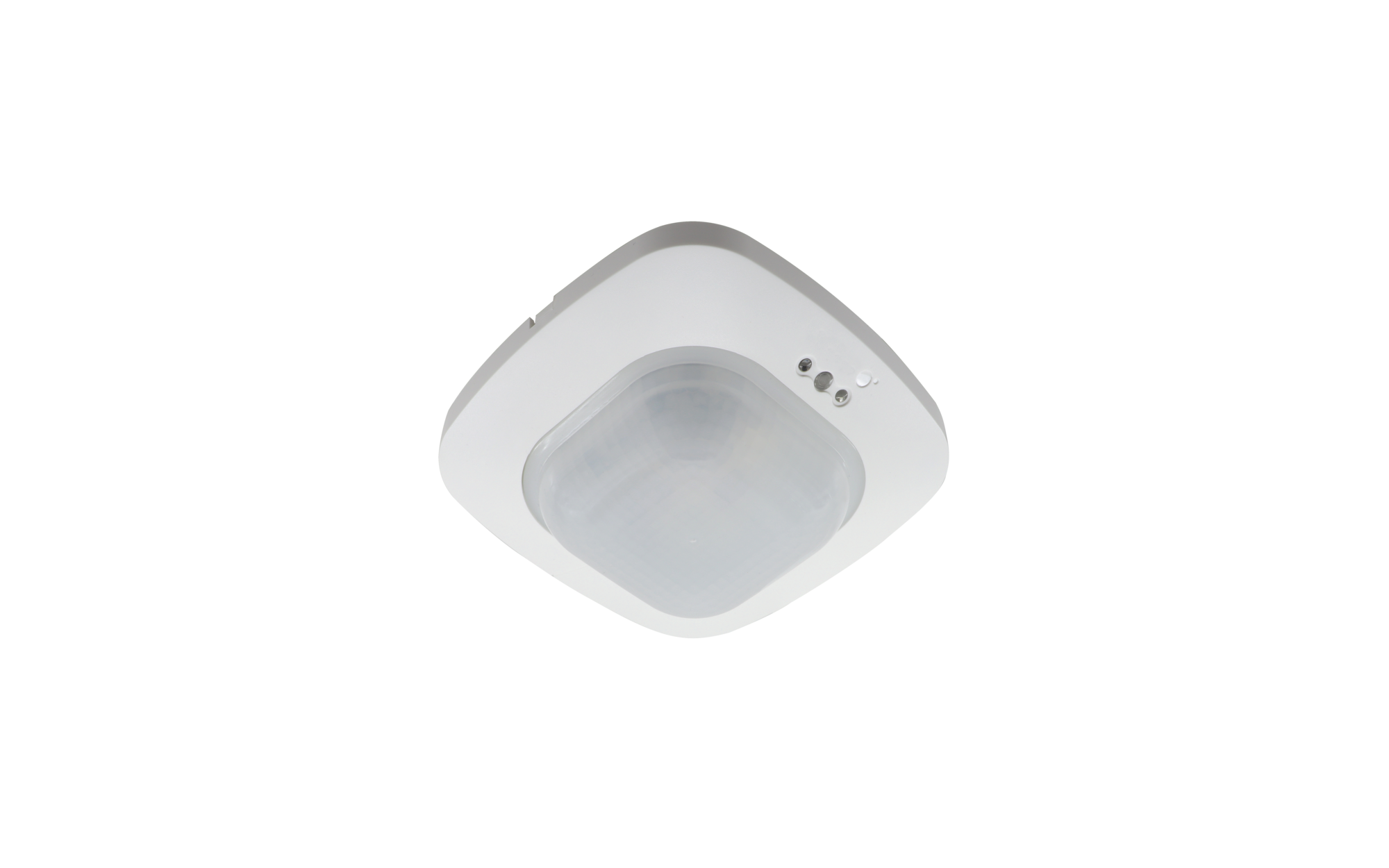

SITECO Connectmulti-sensor PS2, slave, local control - self-sufficient standalone sensors, central control - connection to lighting or building management, dimmable, installation type: recessed, installation location: in the ceiling, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, VDE, 1 x PIR movement sensor, 1 x light sensor, 1 x DALI, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family Siteco Connect 11, SITECO Connect 21
Product type sensor
Product name SITECO Connect
Order No. 5LZ925601

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) 0..+40°C
Certification, designation CE, VDE

Material, Colour

housing plastic, pure white (RAL 9010)
Colour specification pure white (RAL 9010)

Mounting

Mounting method, mounting location recessed, in the ceiling
Mounting height 2.5..10m
Supplement only suitable for use in indoor areas

Dimensions, Weight

Length 120mm
Width 120mm
Height 124mm
Weight 0.2kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

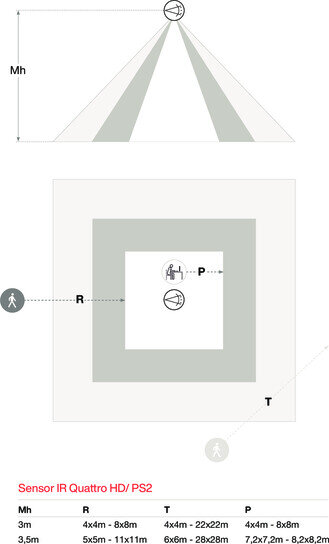

Detection angle 360°
Detection range radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m
Detection range min./max. 4.8x 4.8m/8.2x 8.2m
Feature square detection area

System family
Siteco Connect 11, SITECO Connect 21

Product type
sensor

Product name
SITECO Connect

Order No.
5LZ925601

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
0..+40°C

Certification, designation
CE, VDE

housing
plastic, pure white (RAL 9010)

Colour specification
pure white (RAL 9010)

Mounting method, mounting location
recessed, in the ceiling

Mounting height
2.5..10m

Supplement
only suitable for use in indoor areas

Length
120mm

Width
120mm

Height
124mm

Weight
0.2kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m

Detection range
min./max. 4.8x 4.8m/8.2x 8.2m

Feature
square detection area
