multi-sensor PC14

Close
Order No.: 5LZ904210A
Remember articleRemember article

Article multi-sensor
Product name SITECO Connect
Rated input power 0.9W
Protection rating IP20
Weight 0.1kg

SITECO Connect, multi-sensor, installation type: surface-mounted, control gear: ON/OFF, mains connection: 220..240V, AC, 50/60Hz, rated input power: 0.9W, housing, housing, round, of plastic, white, diameter: 120mm, height: 25mm, multi-sensor PC14, local control - self-sufficient standalone sensors, equipment: master, switchable, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, UKCA, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family Siteco Connect 31 Area ON/OFF
Product type multi-sensor
Product name SITECO Connect
Order No. 5LZ904210A

Lamps

Rated input power 0.9W

Operating device

Control ON/OFF, switchable

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE, UKCA

Material, Colour

housing plastic, white, round
housing plastic, white, round
Colour specification white

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Mounting height 2.5..4m
Supplement only suitable for use in indoor areas

Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC

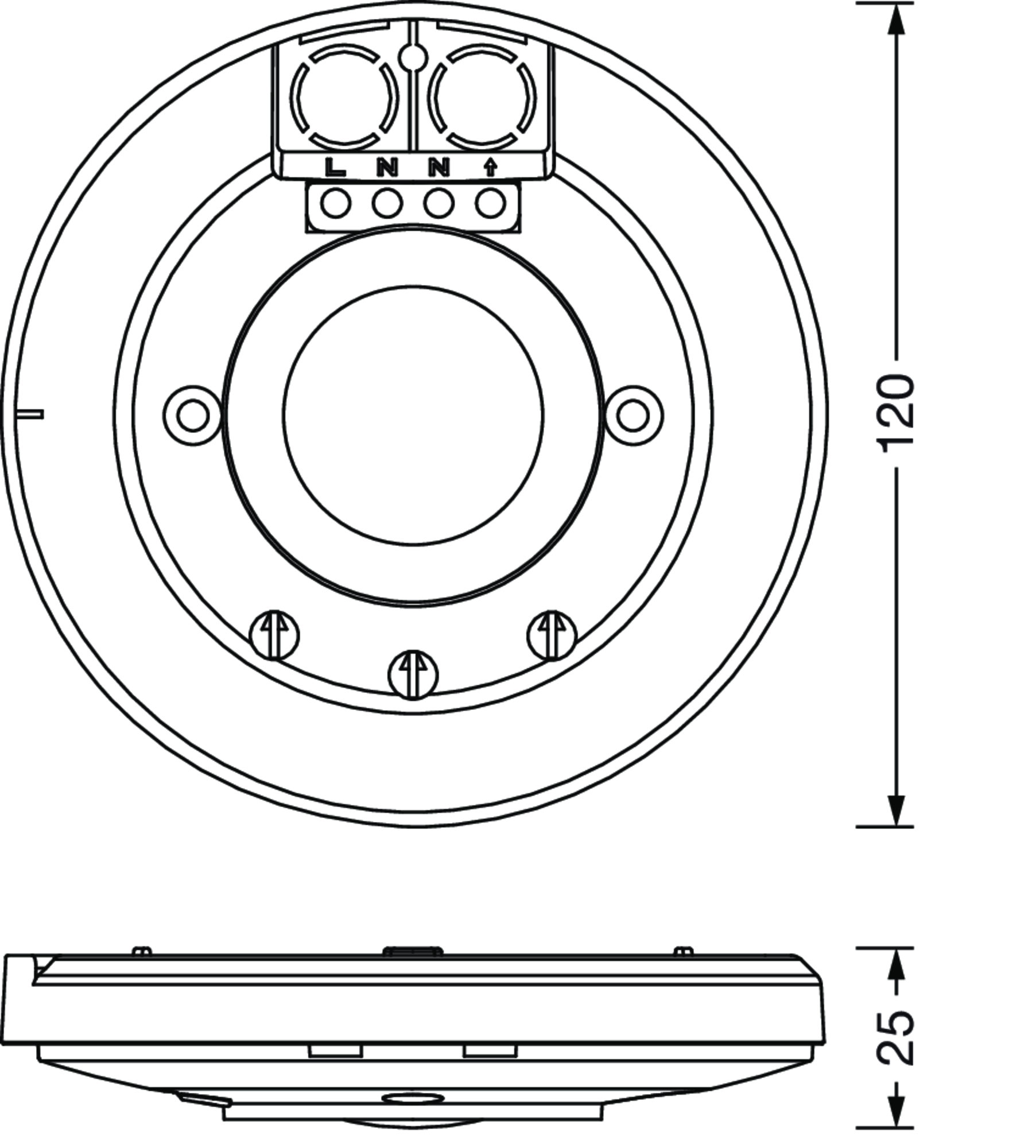

Dimensions, Weight

Diameter 120mm
Height 25mm
Weight 0.1kg

Inputs

1x PIR movement sensor
Feature circular detection area

System family
Siteco Connect 31 Area ON/OFF

Product type
multi-sensor

Product name
SITECO Connect

Order No.
5LZ904210A

Rated input power
0.9W

Control
ON/OFF, switchable

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE, UKCA

housing
plastic, white, round

housing
plastic, white, round

Colour specification
white

Mounting method, mounting location
surface-mounted, to the ceiling

Mounting height
2.5..4m

Supplement
only suitable for use in indoor areas

Nominal voltage
220..240V, 50/60Hz, AC

Diameter
120mm

Height
25mm

Weight
0.1kg

1x PIR movement sensor

Feature
circular detection area
