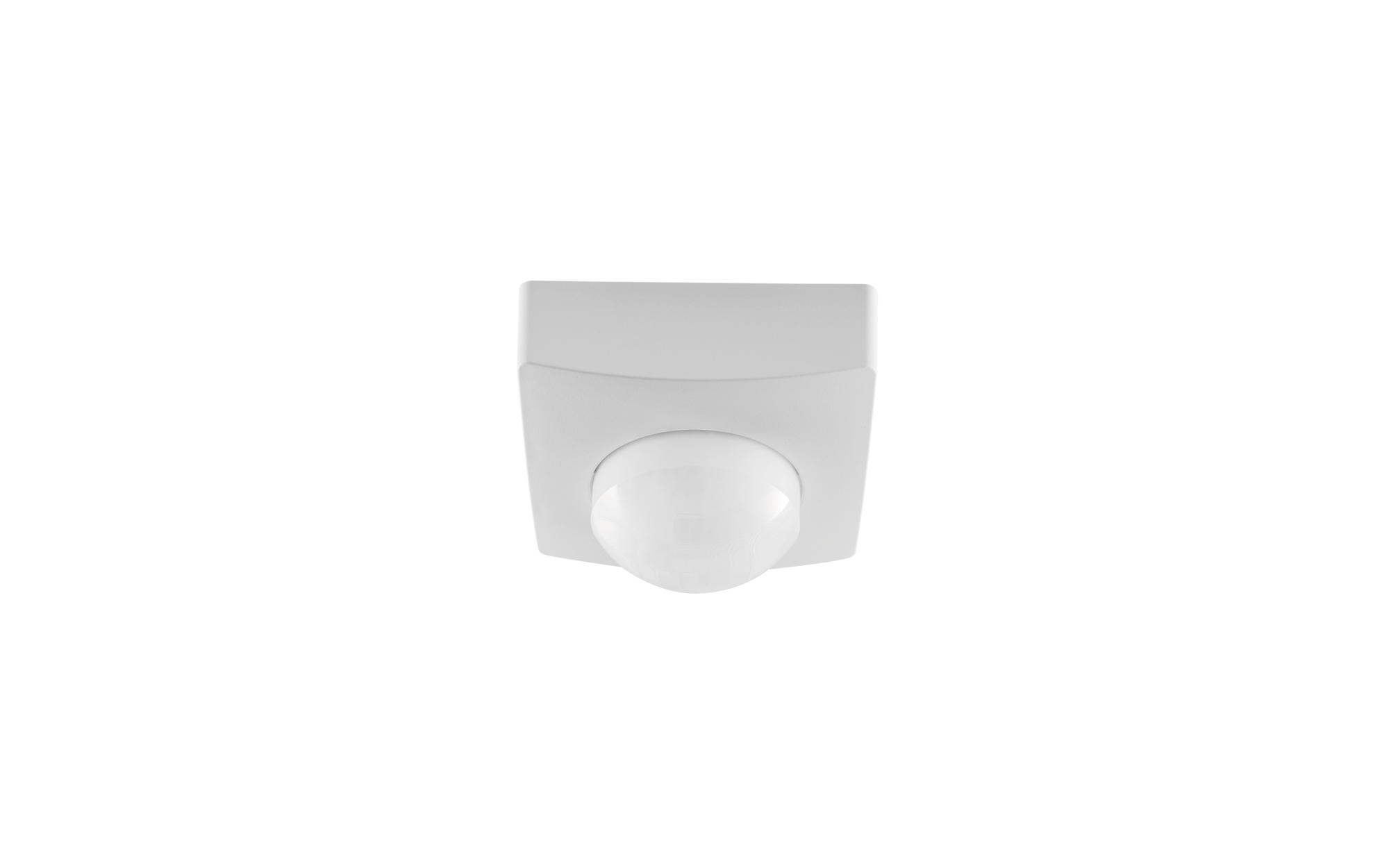

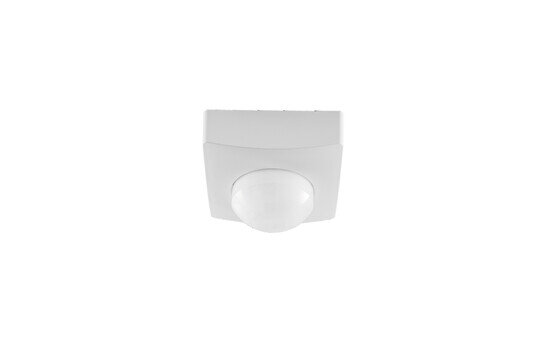

Sensor-Head PC1-M

Close
Order No.: 59US1HXMPC1A
Remember articleRemember article

Article sensor
Product name SITECO Connect
Protection rating IP54
Weight 0.1kg

SITECO ConnectSensor-Head PC1-M, master, local control - self-sufficient standalone sensors, switchable, dimmable, installation type: slip-in mounting, installation location: on interface, of plastic, protection rating (complete): IP54, certification: CE, VDE, 1 x PIR movement sensor, 1 x light sensor, 1 x IR receiver, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect
Product type sensor
Product name SITECO Connect
Order No. 59US1HXMPC1A

Certificates, Standards

Protection rating IP54
Temperature range (operation) -20..+50°C
Certification, designation CE, VDE

Material, Colour

housing plastic, white
Colour specification white

Mounting

Mounting method, mounting location slip-in mounting, on interface
Mounting height 2.5..4m

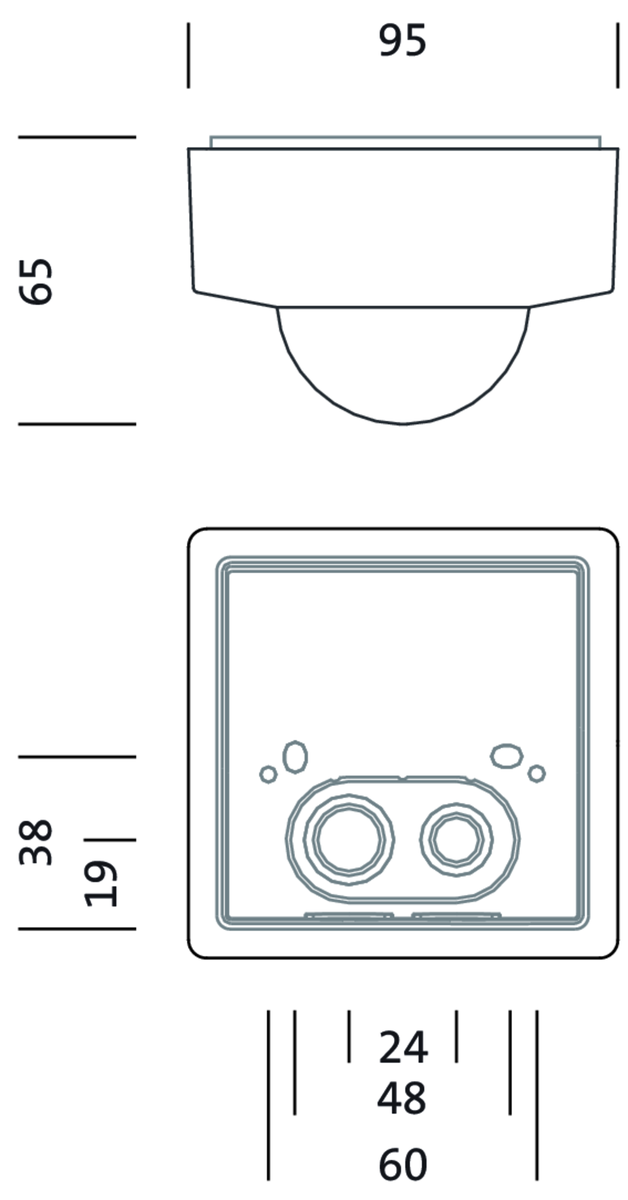

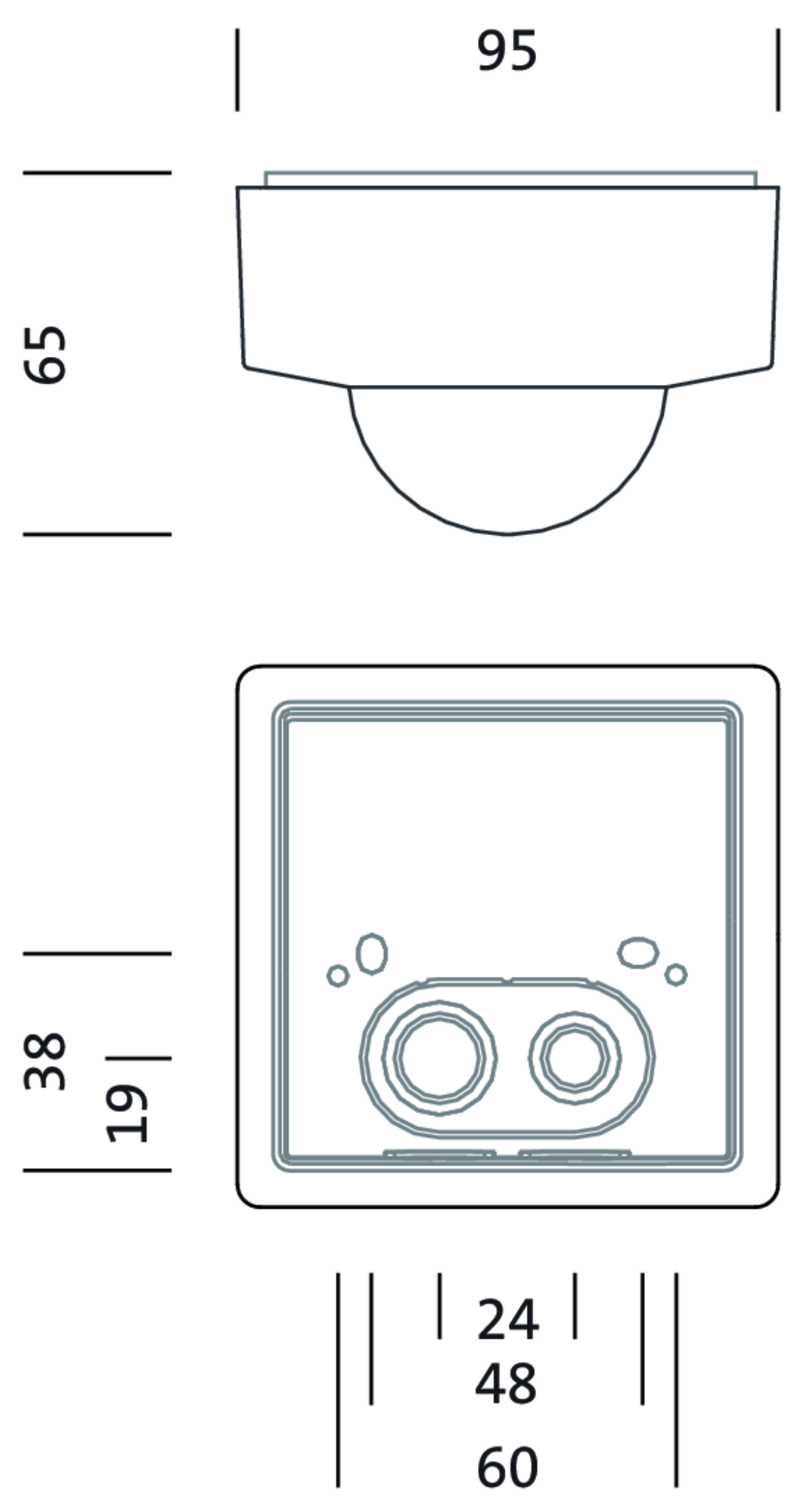

Dimensions, Weight

Length 95mm
Width 95mm
Height 65mm
Weight 0.1kg

Inputs

1x PIR movement sensor
Connection system connector

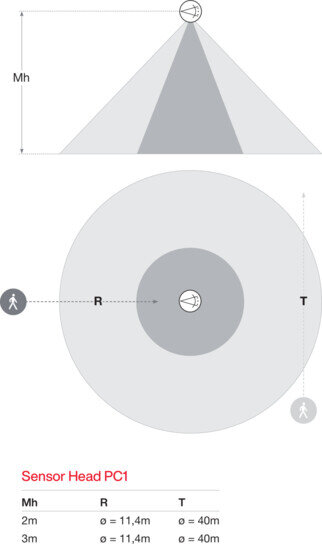

Detection range max. ø40m
Option 11 detection levels, 1416 switching zones
Feature detection range can be limited with shield, circular detection area

1x IR receiver
Feature IR receiver for programming with Smart Remote

System family
SITECO Connect

Product type
sensor

Product name
SITECO Connect

Order No.
59US1HXMPC1A

Protection rating
IP54

Temperature range (operation)
-20..+50°C

Certification, designation
CE, VDE

housing
plastic, white

Colour specification
white

Mounting method, mounting location
slip-in mounting, on interface

Mounting height
2.5..4m

Length
95mm

Width
95mm

Height
65mm

Weight
0.1kg

1x PIR movement sensor

Connection
system connector

Detection range
max. ø40m

Option
11 detection levels, 1416 switching zones

Feature
detection range can be limited with shield, circular detection area

1x IR receiver

Feature
IR receiver for programming with Smart Remote
