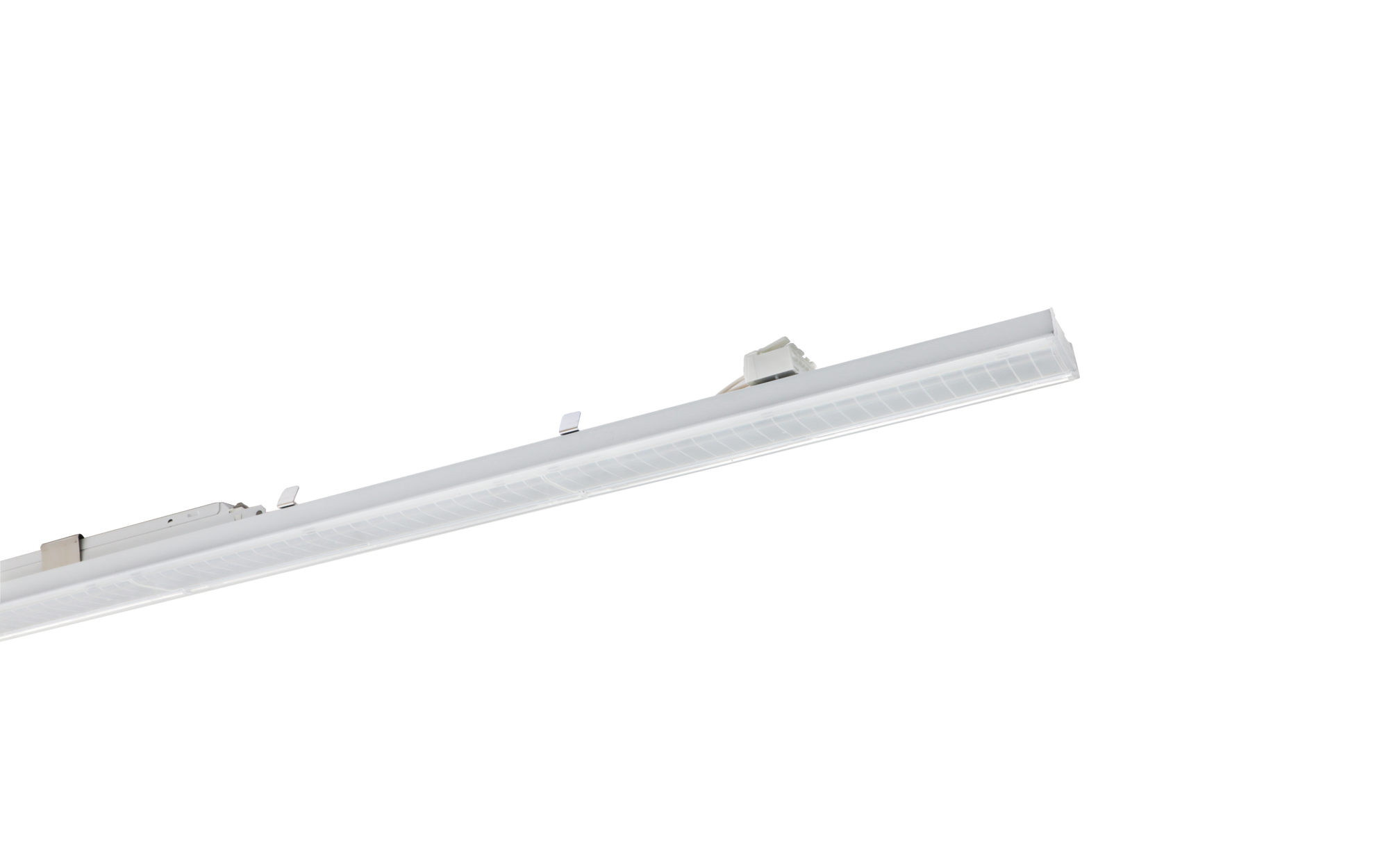

TL L, direct open distribution, emergency light

Close
Ordercode: 5WD7A9H0A2B5
Remember productRemember product

Article luminaire insert
Product name TL L
Lamp LED
Rated luminous flux 5000lm
Luminous efficacy 168lm/W
Colour temperature 5000K
Colour rendering CRI > 80
Rated input power 34W
Service life 100000h (L85/B10) at AT = 25°C
Protection rating as luminaire
Impact resistance IK06
Weight 1.0kg

TL L, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 66mm, height: 67mm, LED rated luminous flux: 5.000lm, light colour: 850, control gear: emergency light, with terminal, 3-pole, mains connection: 230..240V, AC, 50/60Hz, rated input power: 34W, battery: LiFePO4, 9Ah, primary optical cover: cover, of PMMA, light emission: direct distribution, protection rating (complete): as luminaire, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK06, permissible ambient temperature for indoor applications: +5..+35°C, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type luminaire insert
Product name TL L
Order No. 5WD7A9H0A2B5

Component 1

Lighting technology
Cover cover
Beam angle open distribution
Light emission direct distribution

Lamps
Lamps with LED
Rated luminous flux 5000lm
Luminous efficacy 168lm/W
Colour temperature 5000K
Colour rendering index CRI > 80
Light colour 850
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 34W

Operating device
Control emergency light

Component 2

Operating device
Battery LiFePO4

Certificates, Standards

Protection rating as luminaire
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Temperature range (operation) +5..+35°C
Certification, designation CE

Material, Colour

luminaire insert LED sheet steel, galvanised, coil coated, white
Colour specification white
Cover cover of PMMA

Mounting

Mounting method, mounting location recessed, in existing luminaire
Supplement mounting accessories required, please order separately

Electrical connection

Connection terminal, 3-pole
Nominal voltage 230..240V, 50/60Hz, AC

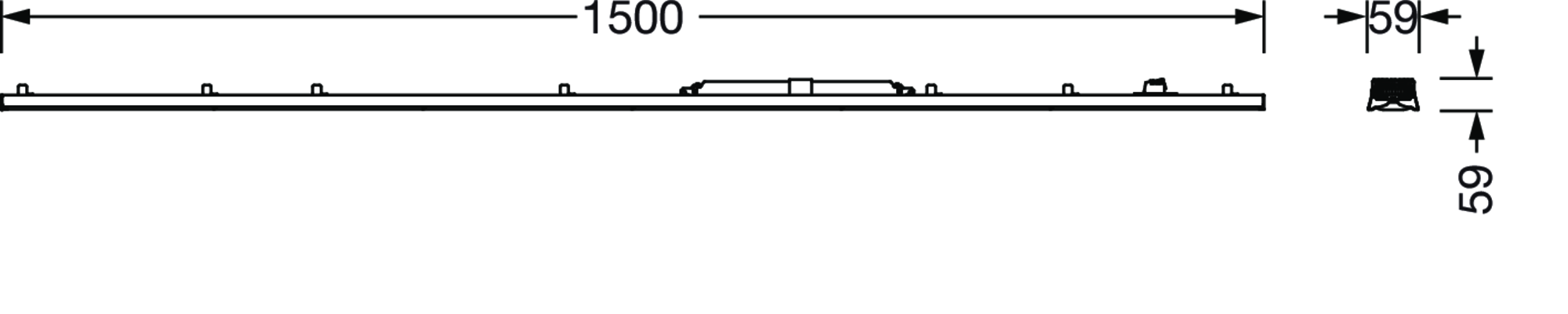

Dimensions, Weight

Length 1500mm
Width 66mm
Height 67mm
Weight 1.0kg

Service life

Rated service life 100000h (L85/B10) at AT = 25°C

Product type
luminaire insert

Product name
TL L

Order No.
5WD7A9H0A2B5

Lighting technology

Cover
cover

Beam angle
open distribution

Light emission
direct distribution

Lamps

Lamps
with LED

Rated luminous flux
5000lm

Luminous efficacy
168lm/W

Colour temperature
5000K

Colour rendering index
CRI > 80

Light colour
850

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
34W

Operating device

Control
emergency light

Operating device

Battery
LiFePO4

Protection rating
as luminaire

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Temperature range (operation)
+5..+35°C

Certification, designation
CE

luminaire insert LED
sheet steel, galvanised, coil coated, white

Colour specification
white

Cover
cover of PMMA

Mounting method, mounting location
recessed, in existing luminaire

Supplement
mounting accessories required, please order separately

Connection
terminal, 3-pole

Nominal voltage
230..240V, 50/60Hz, AC

Length
1500mm

Width
66mm

Height
67mm

Weight
1.0kg

Rated service life
100000h (L85/B10) at AT = 25°C
