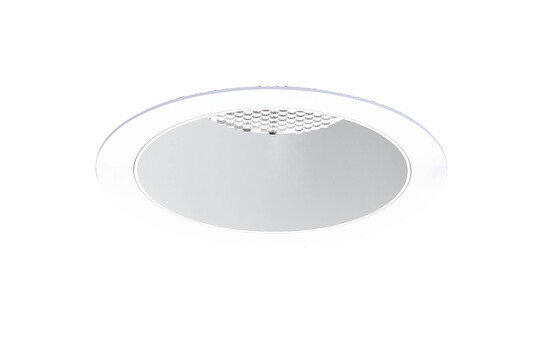

Lunis 21 XL, wide distribution, white reflector, DALI-2 DT8, traffic white (RAL 9016)
Close
Article downlight
Product name Lunis 21 XL
Lamp LED
Rated luminous flux 4110lm
Luminous efficacy 162lm/W
Colour temperature 3000..6500K
Colour rendering CRI > 80
Rated input power 25.4W
Service life 50000h (L80/B20) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.2kg

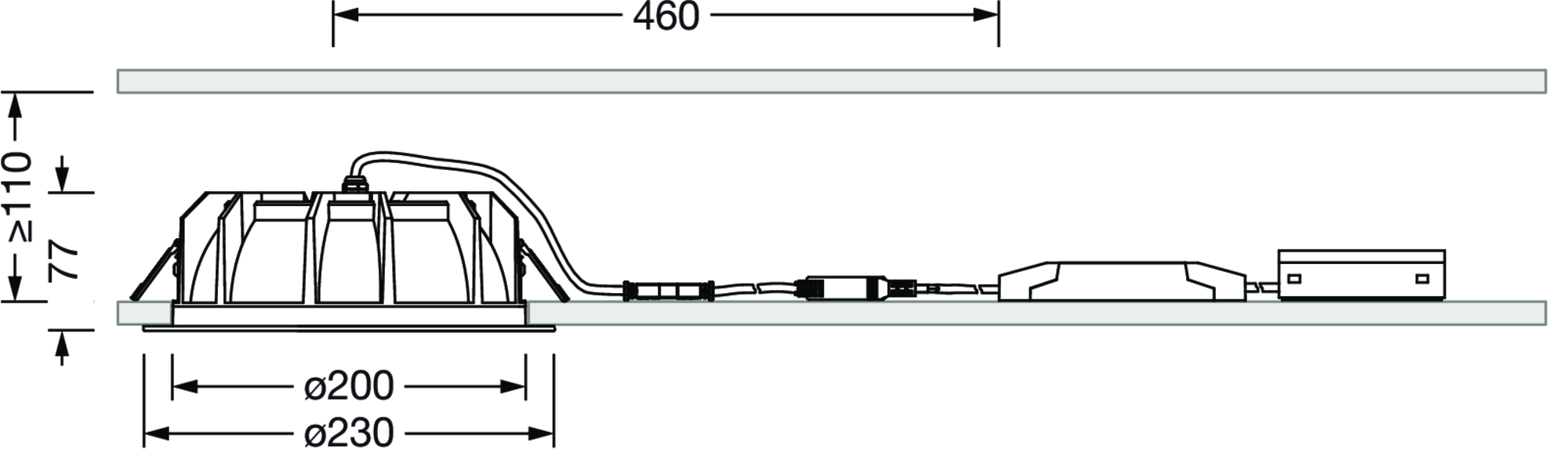

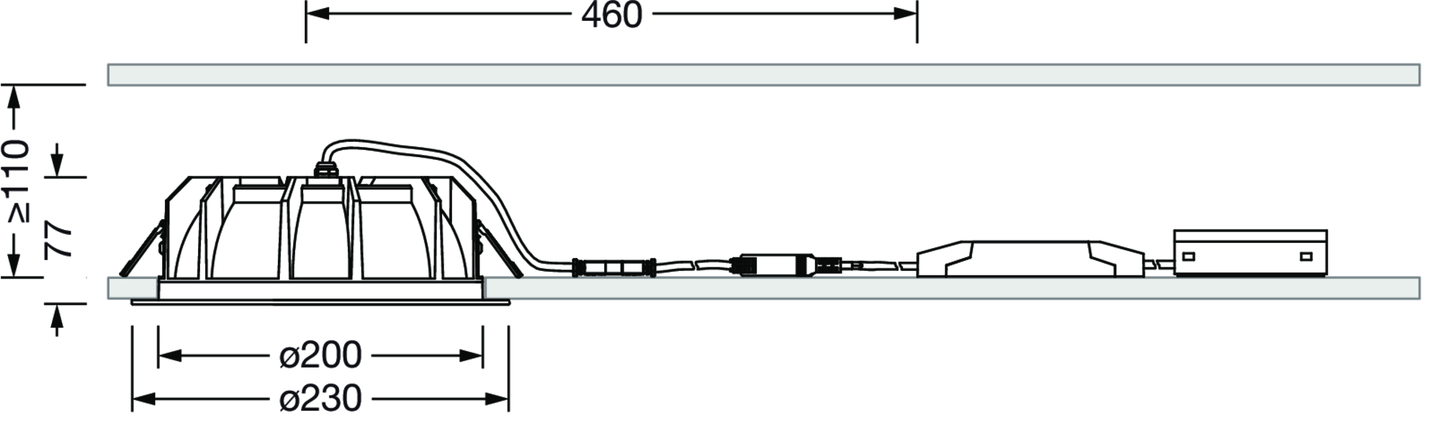

Lunis 21, XL, downlight, light control with lens, of PMMA, anti glare with reflector, of aluminium, light emission: direct distribution, LED rated luminous flux: 4.110lm, light colour: 8tw, with terminal, 5-pole, mains connection: 220..240V, AC/DC, 0/50..60Hz, housing, round, of diecast aluminium, traffic white (RAL 9016), diameter: 230mm, clamping range: 1..40mm, protection rating (complete): IP20, protection rating (on room side): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK03, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

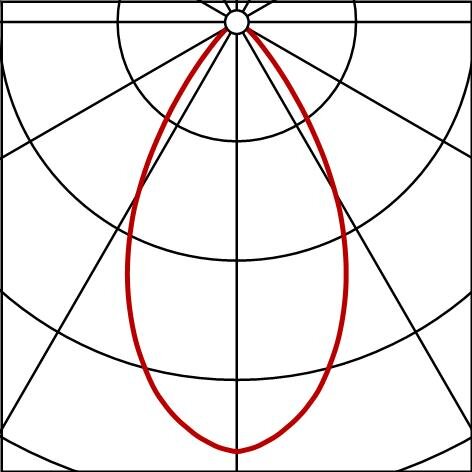

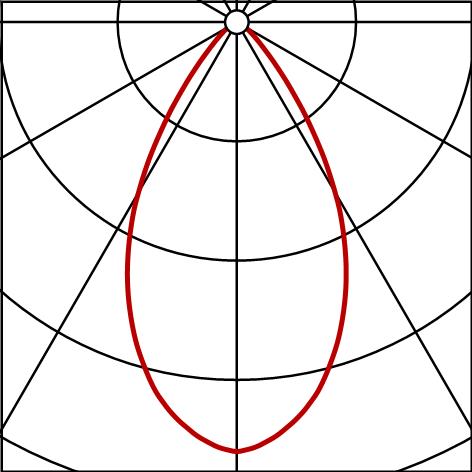

Photometric report / planning data
Lunis 21
LED, lens, PMMA, reflector, aluminium, direct wide distribution, single arrangement, recessed, in the ceiling, ø= 230mm
Lamps: 1x LED, factory setting: colour temperature 4000K
Order No.: 51DB18TF91C
