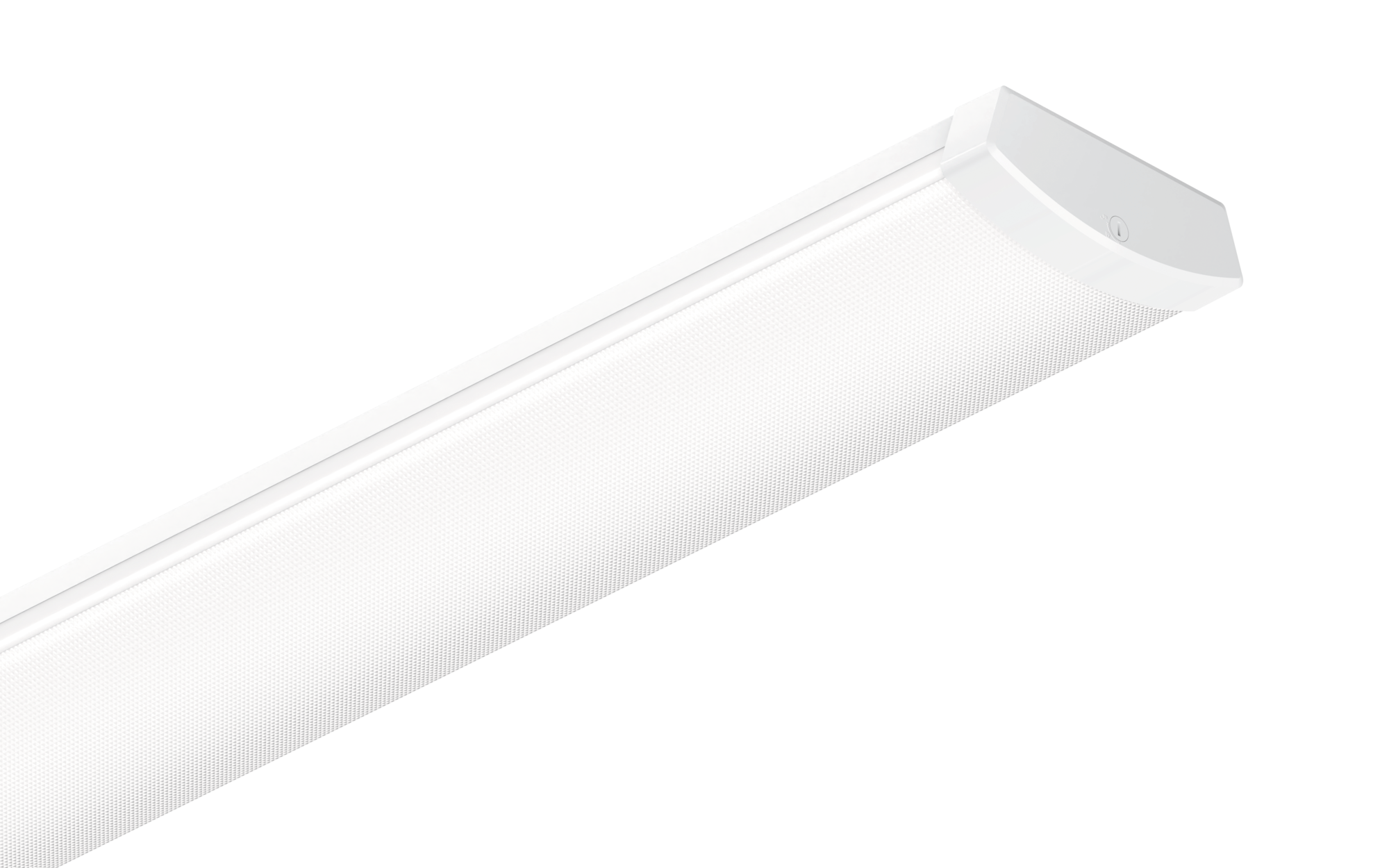

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, 3h, white

Order No.: 51LN12MNM70A3G

Article office luminaire
Product name Siluette® 21
Lamp LED
Rated luminous flux 7150lm
Luminous efficacy 142lm/W
Colour temperature 3000/4000/5000K
Colour rendering CRI > 80
Rated input power 51W
Service life 100000h (L80/B50) at AT = 25°C
Protection rating IP44
Impact resistance IK04
Weight 3.9kg

Siluette® 21, office luminaire, primary optical cover: enclosure, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 7.150lm, luminous efficacy: 142lm/W, light colour: 830/840/850, colour temperature: 3000/4000/5000K, control gear: ON/OFF Multilumen, with terminal, 4-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 51W, control gear: single battery element, housing, of sheet steel, white, length: 1.500mm, width: 152mm, height: 53mm, end cap, of PMMA, white, protection rating (complete): IP44, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK04, permissible operating ambient temperature: +5..+40°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for applications

Product details

Key data

Product type office luminaire
Product name Siluette® 21
Order No. 51LN12MNM70A3G

Component 1

Lighting technology
Cover enclosure, frosted
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution

Lamps
Lamps with LED
Rated luminous flux 7150lm
Luminous efficacy 142lm/W
Colour temperature 3000/4000/5000K
Colour rendering index CRI > 80
Light colour 830/840/850
Rated input power 51W
Supplement suitable for emergency light operating devices according to IEC 60598-2-22, luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)

Operating device
Control ON/OFF Multilumen

Component 2

Operating device
Control gear single battery element
Nominal operating time 3h

Certificates, Standards

Protection rating IP44
Insulation class insulation class I (protective earthing)
Impact resistance IK04
Protection symbol D
Temperature range (operation) +5..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

housing sheet steel, white
Colour specification white
end cap PMMA, white
Quantity 2 piece
Colour specification white
Cover enclosure of PC

Mounting

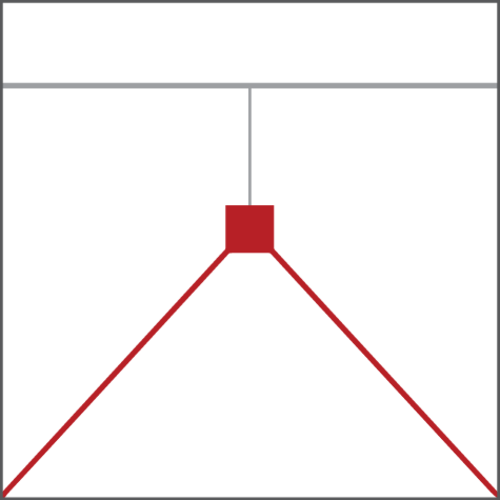

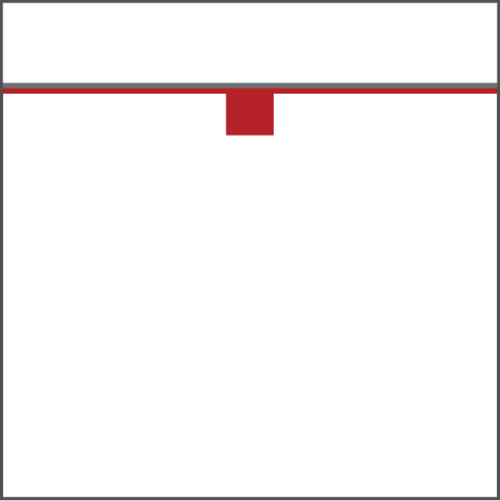

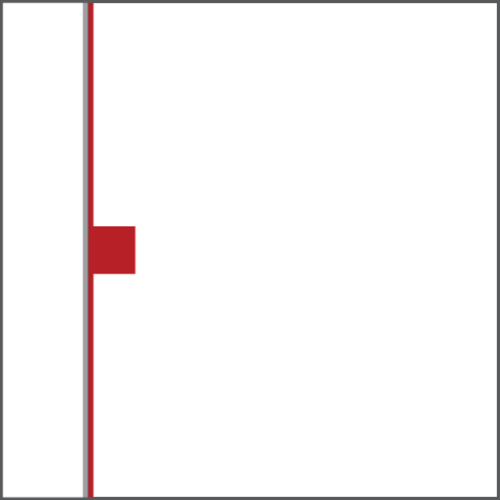

Mounting method, mounting location suspended mounting, surface-mounted, to wire, to the ceiling, to the wall
Arrangement single arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection terminal, 4-pole
Nominal voltage 220..240V, 50/60Hz, AC

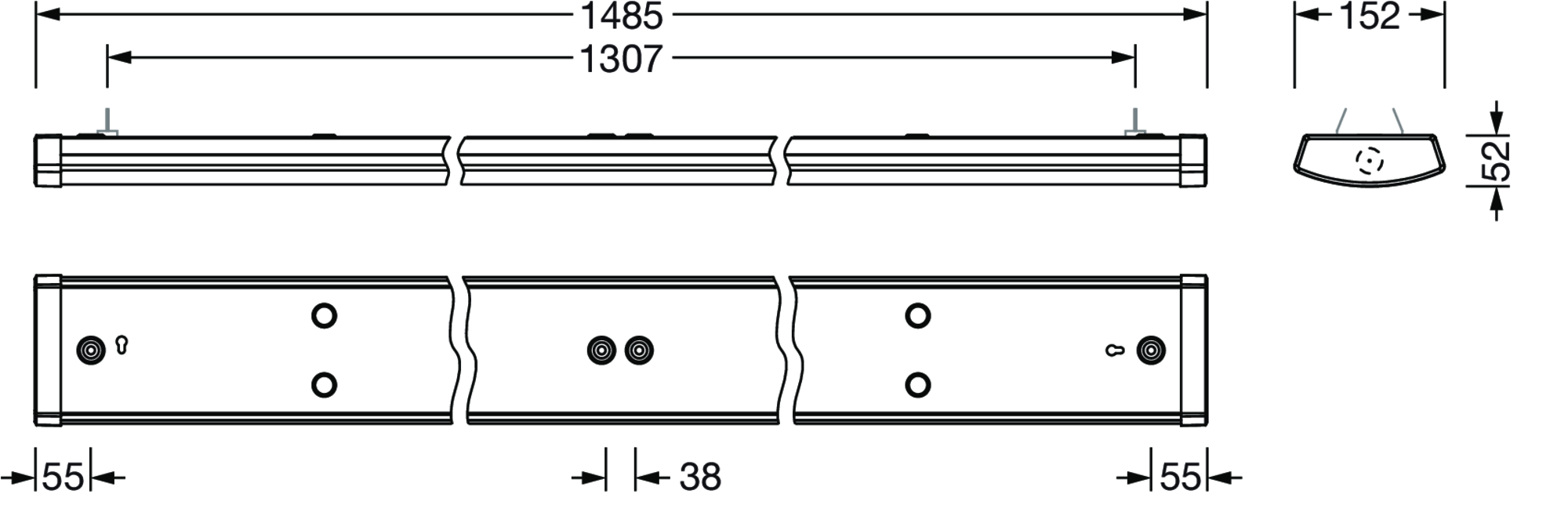

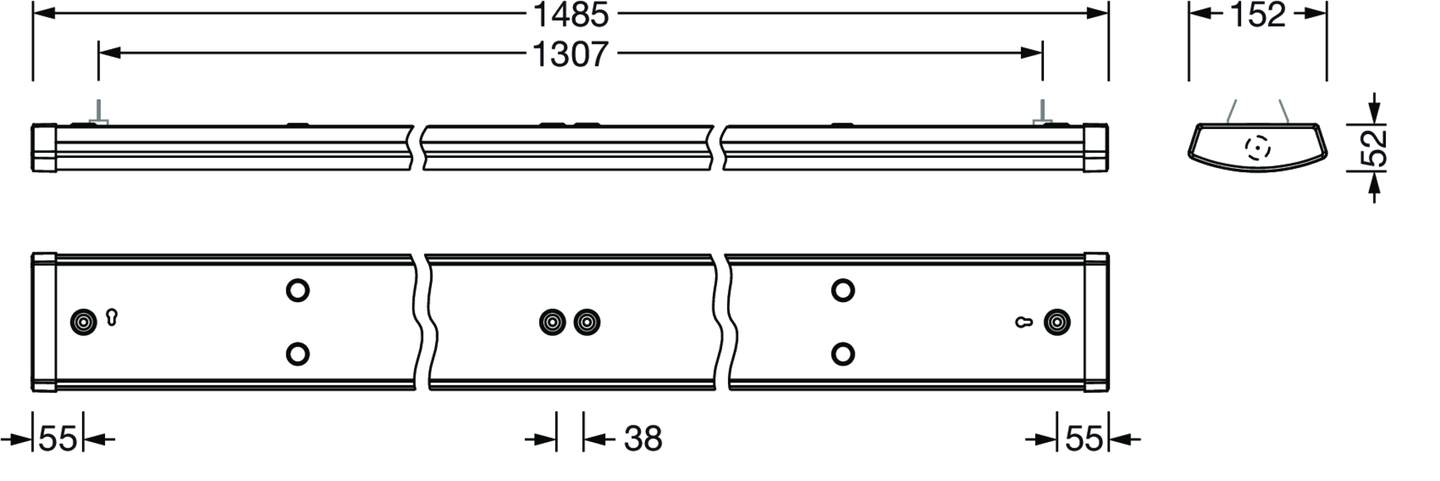

Dimensions, Weight

Length 1500mm
Width 152mm
Height 53mm
Weight 3.9kg

Service life

Rated service life 100000h (L80/B50) at AT = 25°C

Key data

Product type
office luminaire

Product name
Siluette® 21

Order No.
51LN12MNM70A3G

Component 1

Lighting technology

Cover
enclosure, frosted

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps

Lamps
with LED

Rated luminous flux
7150lm

Luminous efficacy
142lm/W

Colour temperature
3000/4000/5000K

Colour rendering index
CRI > 80

Light colour
830/840/850

Rated input power
51W

Supplement
suitable for emergency light operating devices according to IEC 60598-2-22, luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)

Operating device

Control
ON/OFF Multilumen

Component 2

Operating device

Control gear
single battery element

Nominal operating time
3h

Certificates, Standards

Protection rating
IP44

Insulation class
insulation class I (protective earthing)

Impact resistance
IK04

Protection symbol
D

Temperature range (operation)
+5..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity

Standard
EN 60598-2-22

Certification, designation
CE, UKCA

Material, Colour

housing
sheet steel, white

Colour specification
white

end cap
PMMA, white

Quantity
2 piece

Colour specification
white

Cover
enclosure of PC

Mounting

Mounting method, mounting location
suspended mounting, surface-mounted, to wire, to the ceiling, to the wall

Arrangement
single arrangement

Supplement
only suitable for use in indoor areas

Electrical connection

Connection
terminal, 4-pole

Nominal voltage
220..240V, 50/60Hz, AC

Dimensions, Weight

Length
1500mm

Width
152mm

Height
53mm

Weight
3.9kg

Service life

Rated service life
100000h (L80/B50) at AT = 25°C

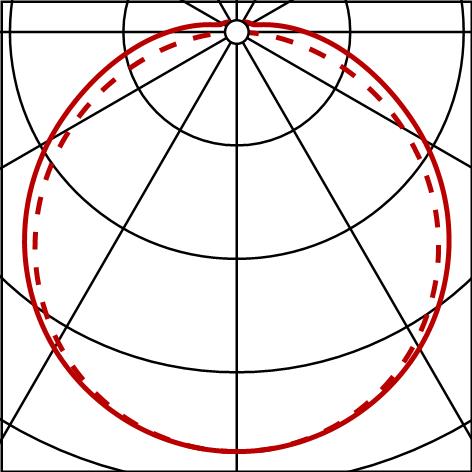

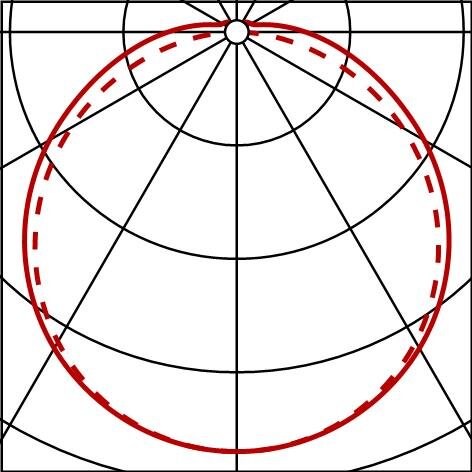

Photometric report / planning data

Siluette® 21
office luminaire, white, ON/OFF Multilumen, 7150lm, 830/840/850, 1500x152mm, Connection: terminal
Lamps: 1x LED, factory setting AC mode: colour temperature 4000K
Order No.: 51LN12MNM70A3G

Photometric report (PDF)
