Modario®, trunking rail, with Through-wiring 12x 2.5mm²

Close
Order No.: 5TR103C0Q
Remember articleRemember article

Article trunking components group (TS)
Product name Modario®
Protection rating for IP20/IP40 protection rating
Weight 6.6kg

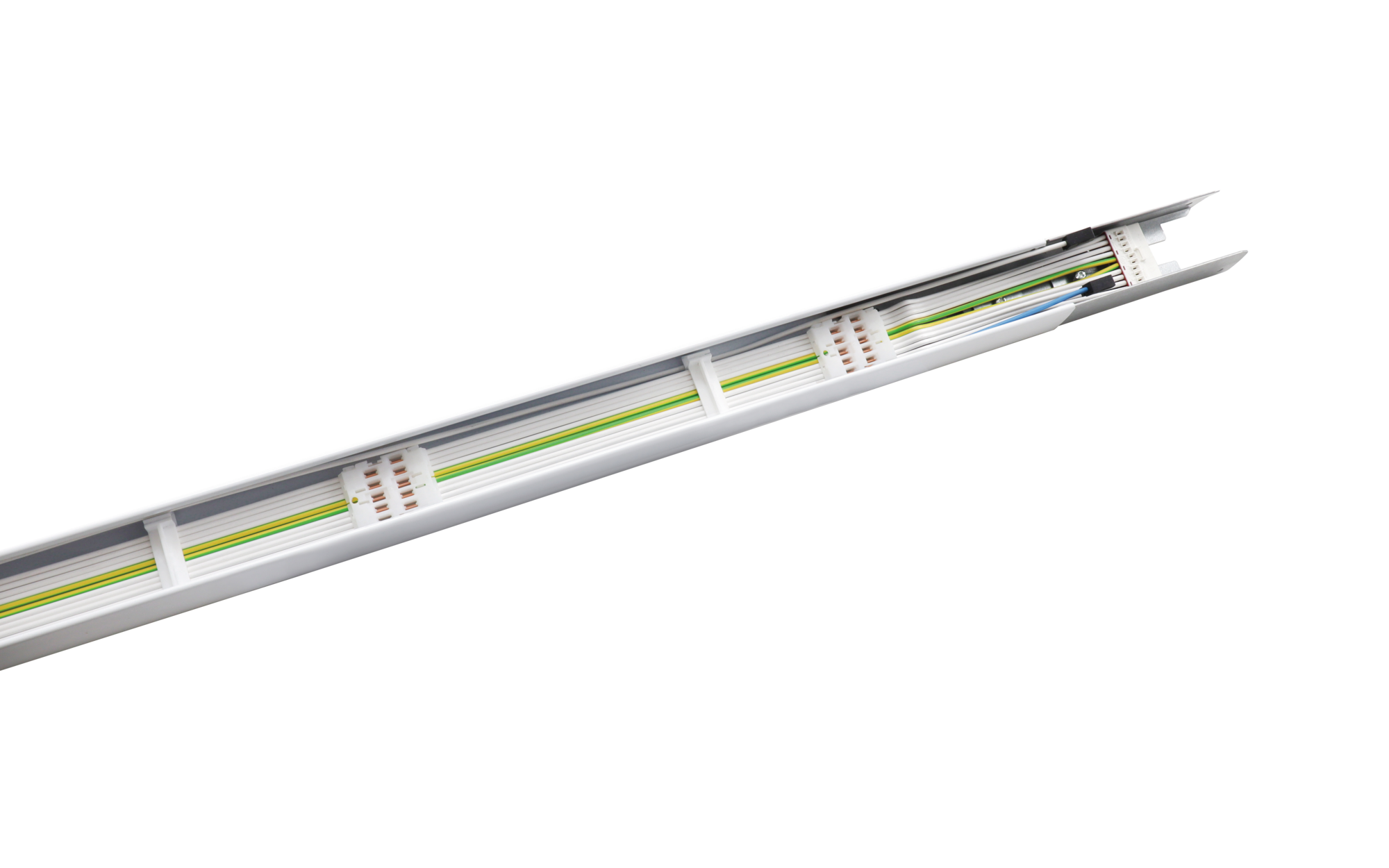

Modario®, trunking rail, of sheet steel, coated, pure white, 15x system unit 299mm 10-core and 3x system unit 1495mm 2-core, length: 4.485 mm, width: 58 mm, height: 43mm, through-wiring: 12x 2.5mm², with terminal, 10+2-pole, max. 2.5mm², protection rating (complete): for IP20/IP40 protection rating, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, standard: EN 60598, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type trunking components group (TS)
Product name Modario®
Order No. 5TR103C0Q

Supplement

Certificates, Standards

Protection rating for IP20/IP40 protection rating
Insulation class insulation class I (protective earthing)
Standard EN 60598
Certification, designation CE, ENEC, VDE

Material, Colour

trunking rail sheet steel, coated, pure white, 15x system unit 299mm 10-core and 3x system unit 1495mm 2-core
Colour specification pure white

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection terminal, 10+2-pole, max. 2.5mm²
Through-wiring 12x 2.5mm²

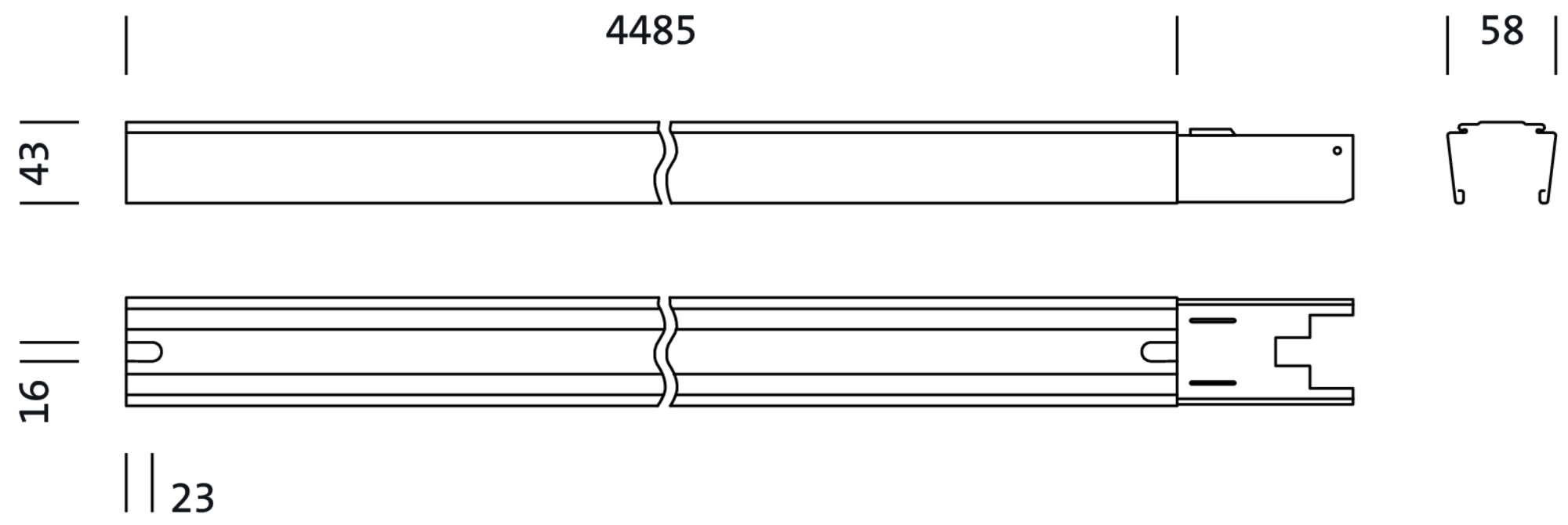

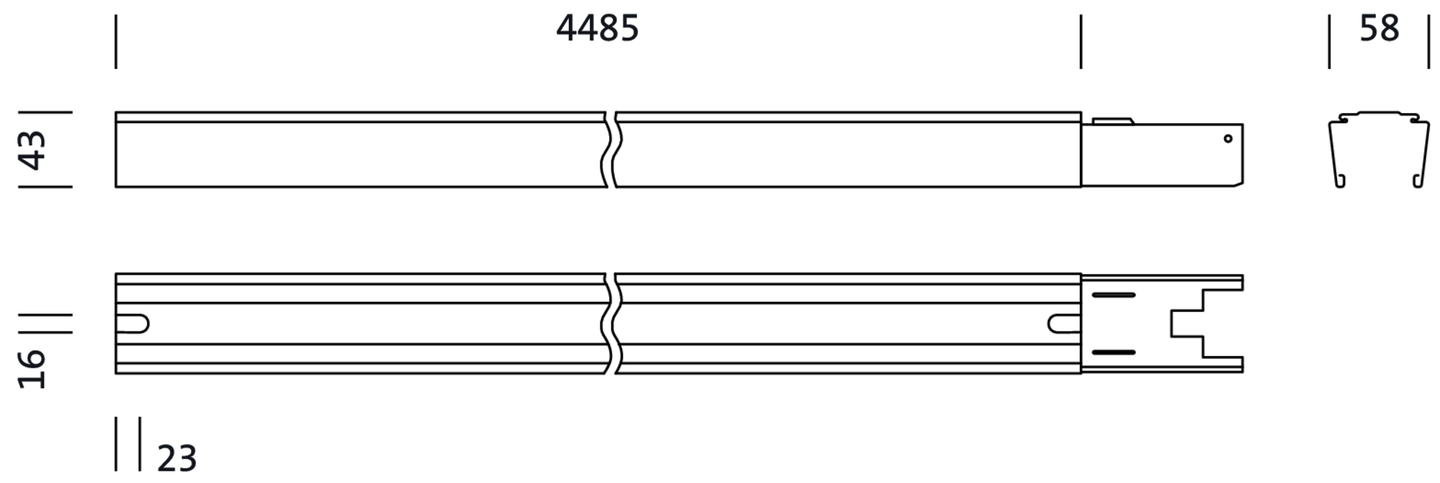

Dimensions, Weight

Length 4485mm
Width 58mm
Height 43mm
Mounting distance max. 3.5m
Weight 6.6kg

Product type
trunking components group (TS)

Product name
Modario®

Order No.
5TR103C0Q

Protection rating
for IP20/IP40 protection rating

Insulation class
insulation class I (protective earthing)

Standard
EN 60598

Certification, designation
CE, ENEC, VDE

trunking rail
sheet steel, coated, pure white, 15x system unit 299mm 10-core and 3x system unit 1495mm 2-core

Colour specification
pure white

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Connection
terminal, 10+2-pole, max. 2.5mm²

Through-wiring
12x 2.5mm²

Length
4485mm

Width
58mm

Height
43mm

Mounting distance
max. 3.5m

Weight
6.6kg
