Article single wire suspension
Product name Modario®
Weight 0.1kg

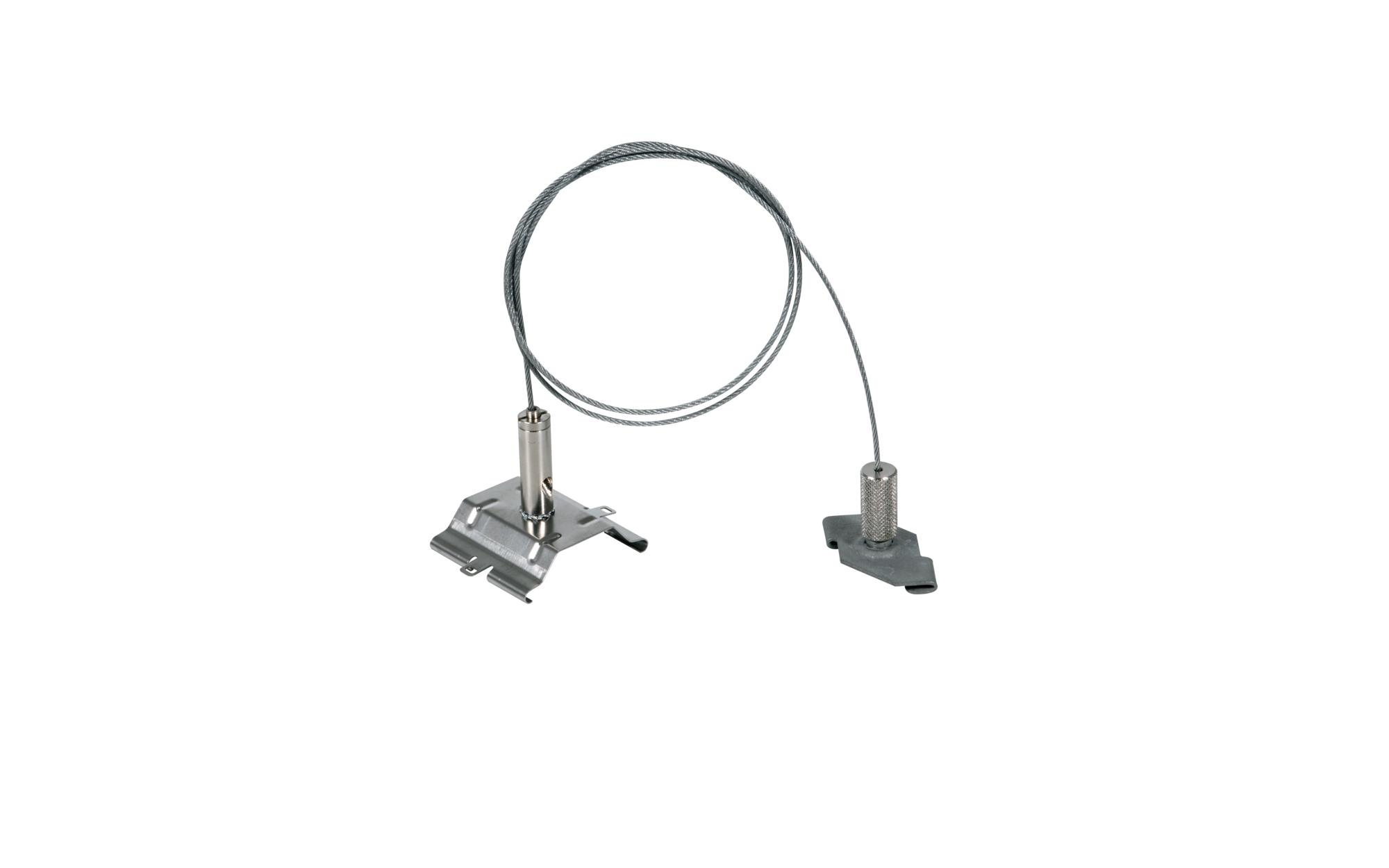

Modario®, single wire suspension, caddy clip, of steel, galvanised, wire, of steel, galvanised, fixing on rail side, of spring steel V2A, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type single wire suspension
Product name Modario®
Order No. 5TR901322


Material, Colour

caddy clip steel, galvanised
wire steel, galvanised, wire, Ø 1.5mm
fixing on rail side spring steel V2A


Mounting

Recommended suspension height up to 2.0m
Supplement caddy clip for hooking into supporting frame (B= 24mm) of a suspended system ceiling


Dimensions, Weight

Weight 0.1kg

Product type
single wire suspension

Product name
Modario®

Order No.
5TR901322

caddy clip
steel, galvanised

wire
steel, galvanised, wire, Ø 1.5mm

fixing on rail side
spring steel V2A

Recommended suspension height
up to 2.0m

Supplement
caddy clip for hooking into supporting frame (B= 24mm) of a suspended system ceiling

Weight
0.1kg
