Ordercode: 5TR901332
Remember productRemember product

Article wire suspension
Product name Modario®
Weight 0.1kg

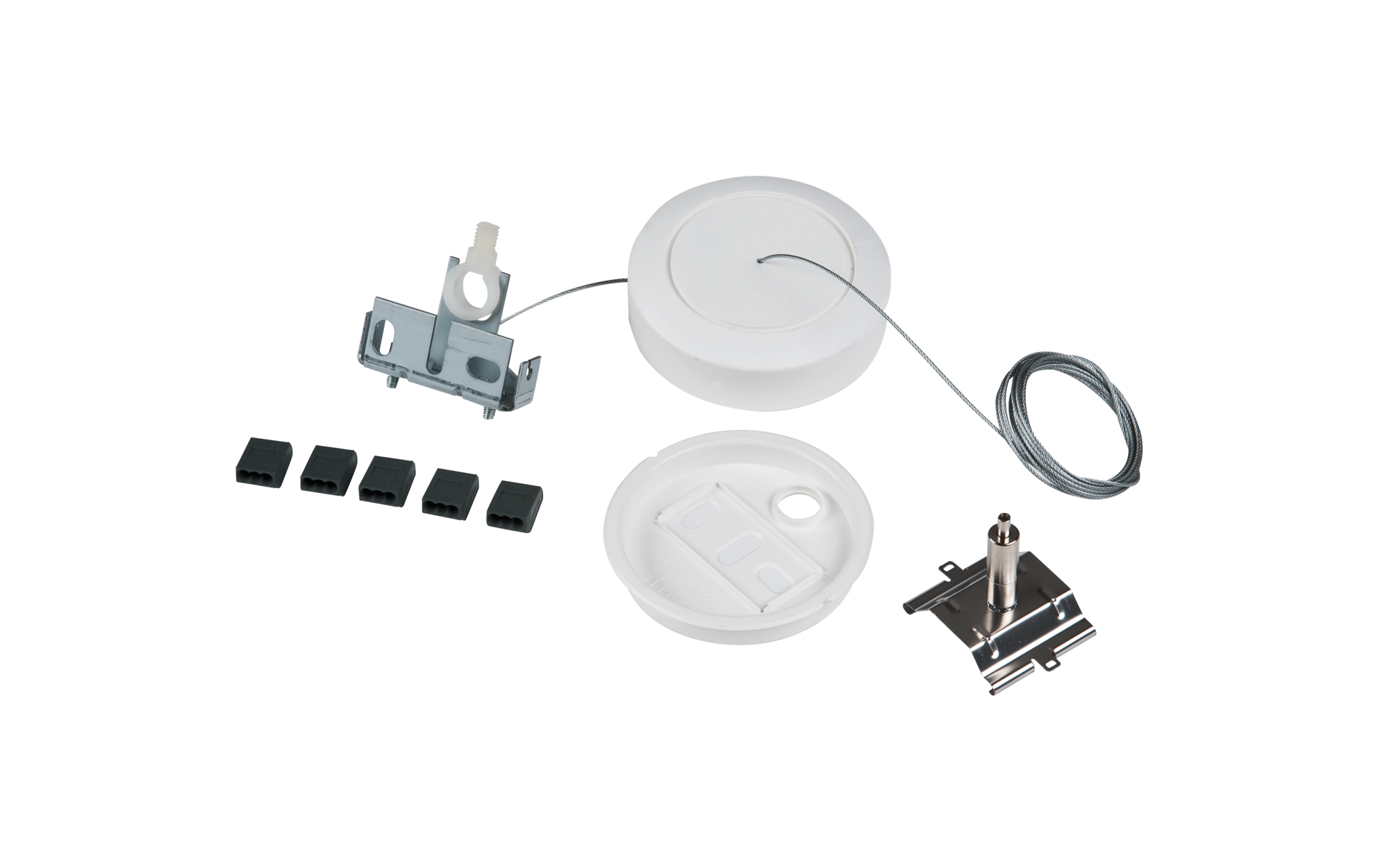

Modario®, wire suspension, with with 5 terminals, 1-pole, max. 2.5mm², ceiling fixing element, of sheet steel, galvanised, ceiling canopy, of plastic, wire, of steel, galvanised, fixing on rail side, of spring steel V2A, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type wire suspension
Product name Modario®
Order No. 5TR901332

Supplement

Material, Colour

ceiling fixing element sheet steel, galvanised, white
wire steel, galvanised, wire, Ø 1.2mm
fixing on rail side spring steel V2A

Mounting

Recommended suspension height up to 2.0m

Electrical connection

Connection with 5 terminals, 1-pole, max. 2.5mm²

Dimensions, Weight

Weight 0.1kg

Product type
wire suspension

Product name
Modario®

Order No.
5TR901332

ceiling fixing element
sheet steel, galvanised, white

wire
steel, galvanised, wire, Ø 1.2mm

fixing on rail side
spring steel V2A

Recommended suspension height
up to 2.0m

Connection
with 5 terminals, 1-pole, max. 2.5mm²

Weight
0.1kg
