Article trunking components group (TS)
Product name Modario® IP64
Protection rating IP64
Weight 2.2kg

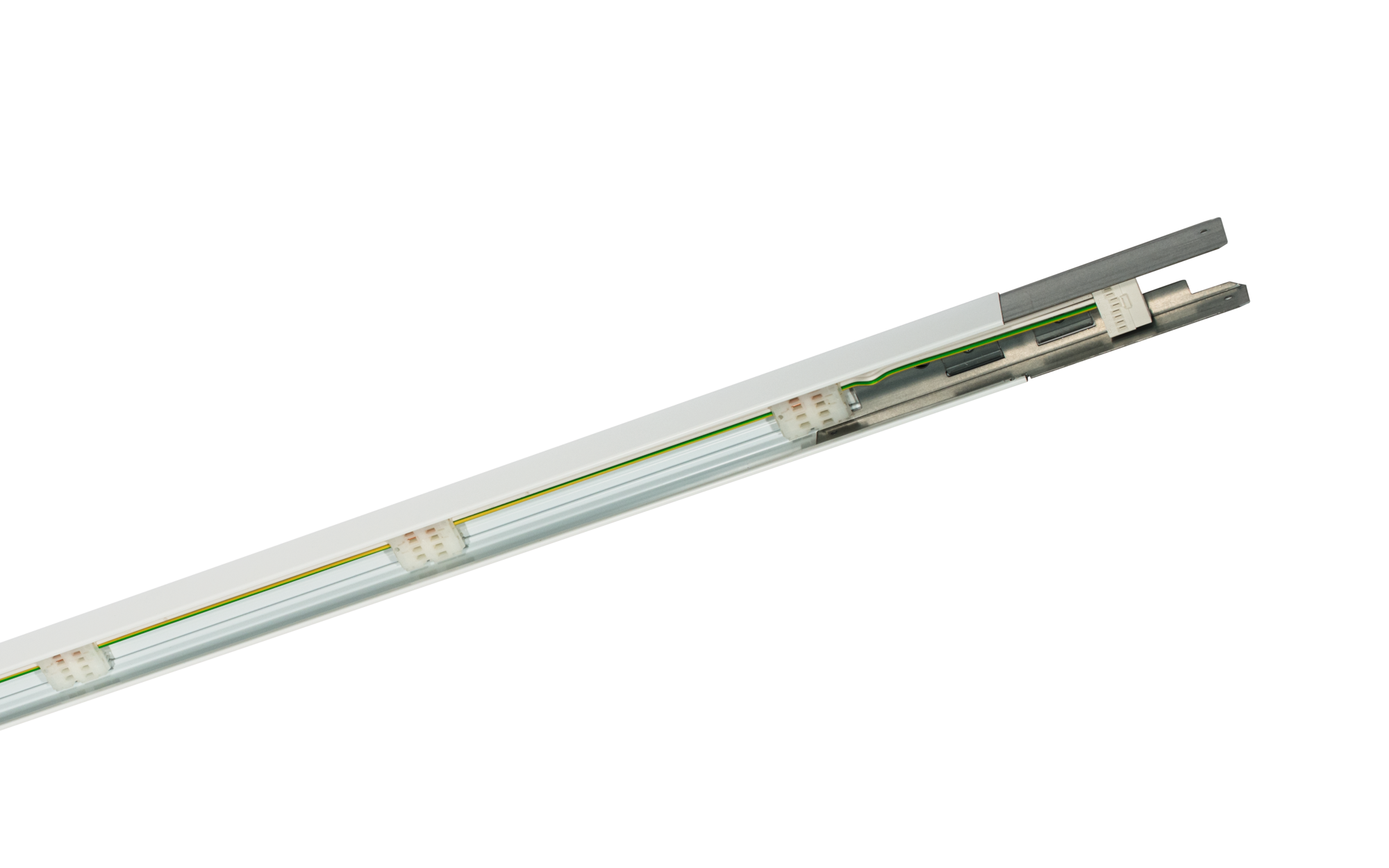

Modario® IP64, trunking rail, of sheet steel, galvanised, coated, pure white, 1-length, length: 1.495 mm, width: 58 mm, height: 43mm, through-wiring: 5x 2.5mm², with terminal, 5-pole, max. 2.5mm², protection rating (complete): IP64, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, standard: EN 60598, packaging unit: 1 piece

Product details


Key data

Product type trunking components group (TS)
Product name Modario® IP64
Order No. 5TS10150Q


Lamps

Supplement for electrical and mechanical plug and socket connection of rail elements


Operating device

Control ON/OFF


Certificates, Standards

Protection rating IP64
Insulation class insulation class I (protective earthing)
Standard EN 60598
Certification, designation CE, ENEC, VDE


Material, Colour

trunking rail sheet steel, galvanised, coated, pure white, 1-length
Colour specification pure white


Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling
Arrangement single/continuous arrangement


Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Through-wiring 5x 2.5mm²

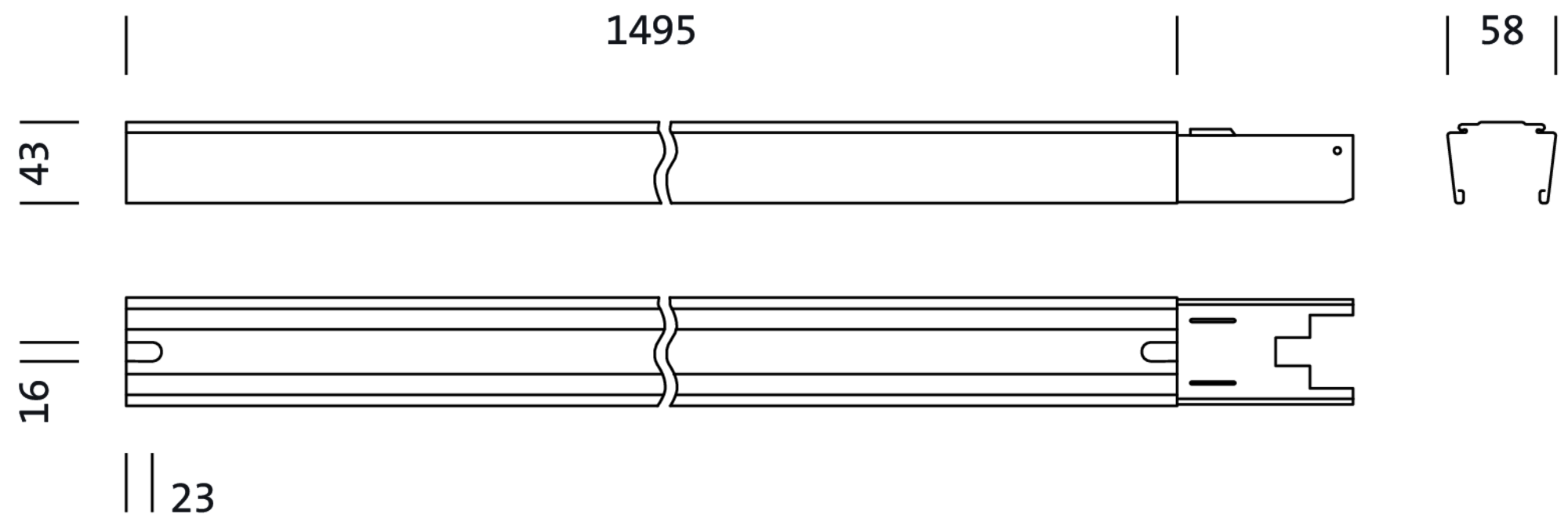

Dimensions, Weight

System units 5x SE
Length 1495mm
Width 58mm
Height 43mm
Mounting distance max. 3.5m
Weight 2.2kg

Product type
trunking components group (TS)

Product name
Modario® IP64

Order No.
5TS10150Q

Supplement
for electrical and mechanical plug and socket connection of rail elements

Control
ON/OFF

Protection rating
IP64

Insulation class
insulation class I (protective earthing)

Standard
EN 60598

Certification, designation
CE, ENEC, VDE

trunking rail
sheet steel, galvanised, coated, pure white, 1-length

Colour specification
pure white

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling

Arrangement
single/continuous arrangement

Connection
terminal, 5-pole, max. 2.5mm²

Through-wiring
5x 2.5mm²

System units
5x SE

Length
1495mm

Width
58mm

Height
43mm

Mounting distance
max. 3.5m

Weight
2.2kg
