Article housing accessories
Product name Modario® IP64
Weight 2.3kg

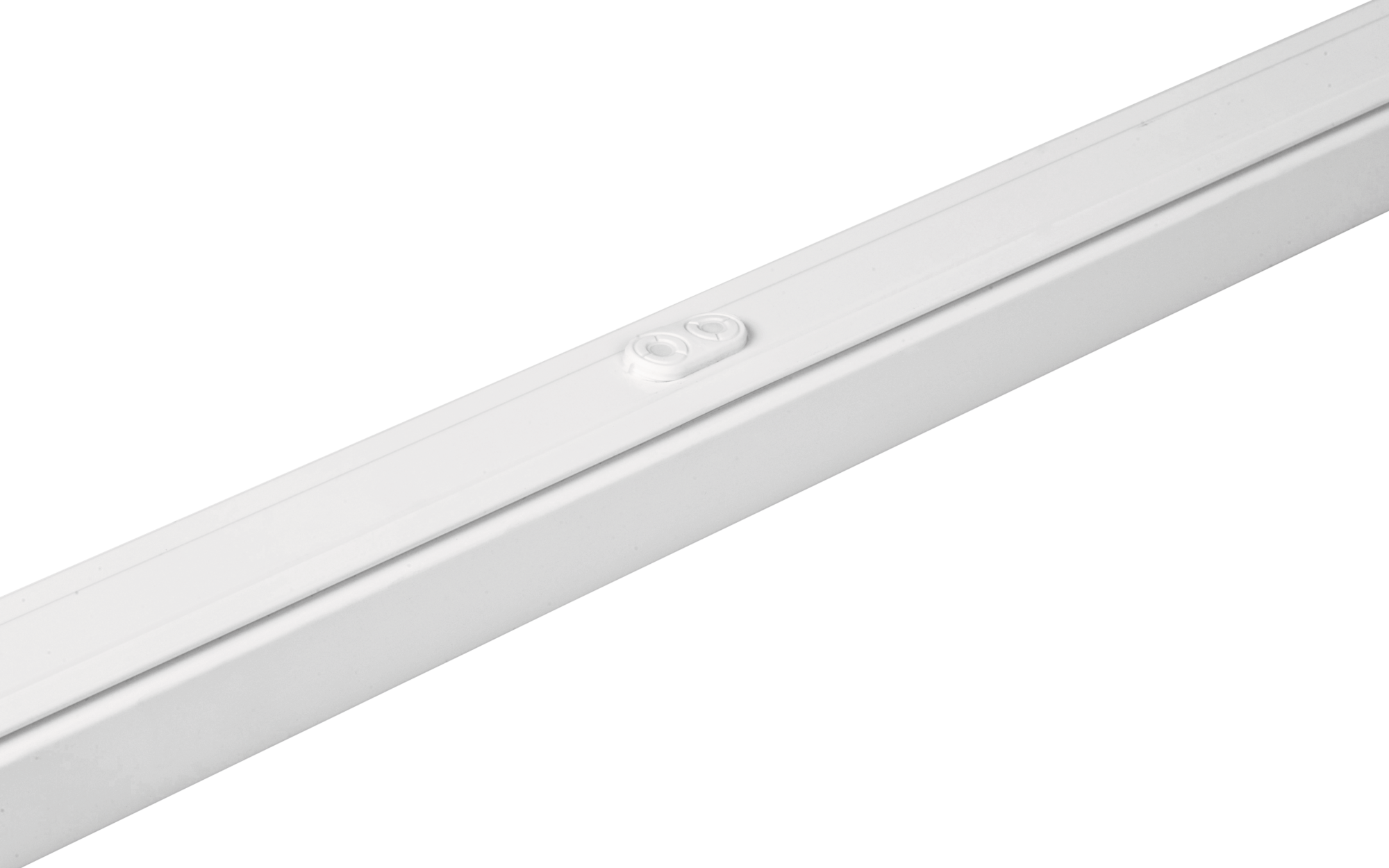

housing accessories, for Modario® IP64, trunking rail, additional feed-in/-out, of steel, galvanised, coated, pure white, 5x system unit, length: 1.495 mm, width: 58 mm, height: 43mm, through-wiring: 10x 2.5mm², insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC in preparation, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type housing accessories
Product name Modario® IP64
Order No. 5TS9092AQ


Certificates, Standards

Insulation class insulation class I (protective earthing)
Certification, designation CE, ENEC in preparation


Material, Colour

trunking rail, additional feed-in/-out steel, galvanised, coated, pure white, 5x system unit
Colour specification pure white


Mounting

Supplement for trunking rail


Electrical connection

Through-wiring 10x 2.5mm²


Dimensions, Weight

System units 5x SE

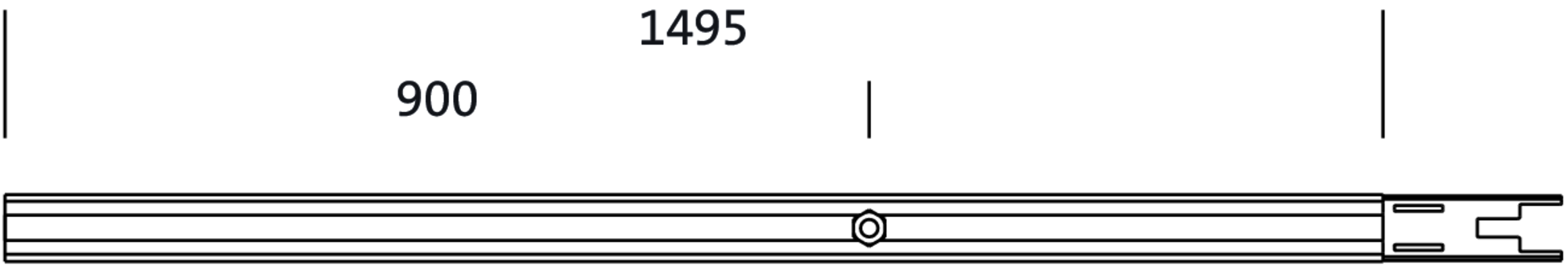

Length 1495mm
Width 58mm
Height 43mm
Weight 2.3kg

Product type
housing accessories

Product name
Modario® IP64

Order No.
5TS9092AQ

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, ENEC in preparation

trunking rail, additional feed-in/-out
steel, galvanised, coated, pure white, 5x system unit

Colour specification
pure white

Supplement
for trunking rail

Through-wiring
10x 2.5mm²

System units
5x SE

Length
1495mm

Width
58mm

Height
43mm

Weight
2.3kg
