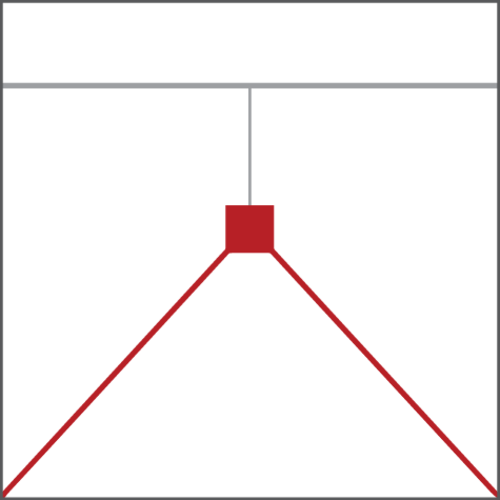

Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Close
Article high bay luminaire

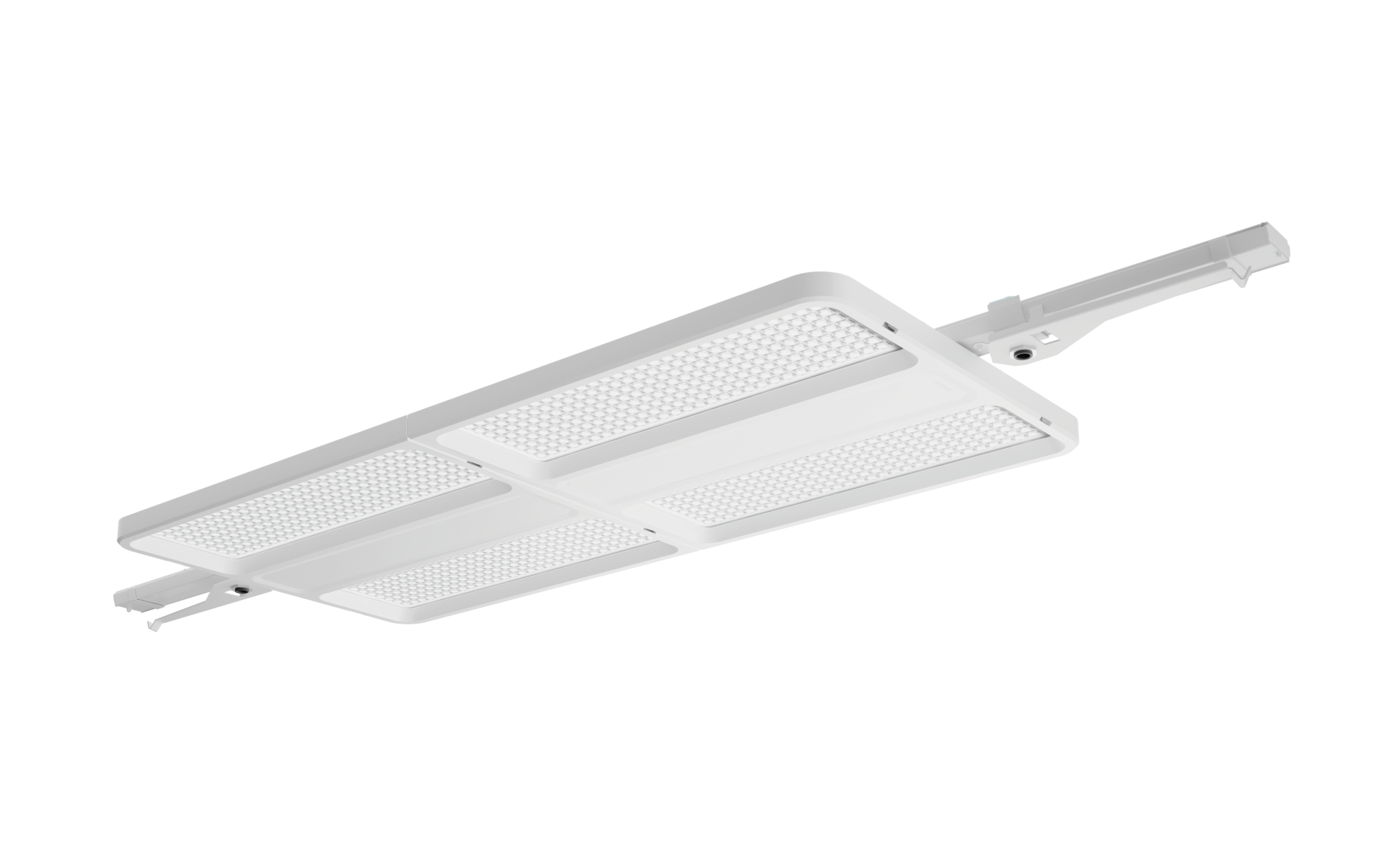

Product name Highbay 11 for Modario® trunking rail maxi
Lamp LED
Rated luminous flux 36000lm
Luminous efficacy 203lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 177.7W
Service life 100000h (L90/B50) at AT = ta max, 100000h (L95/B50) at AT = 25°C
Protection rating IP64
Impact resistance IK07
Weight 7.0kg

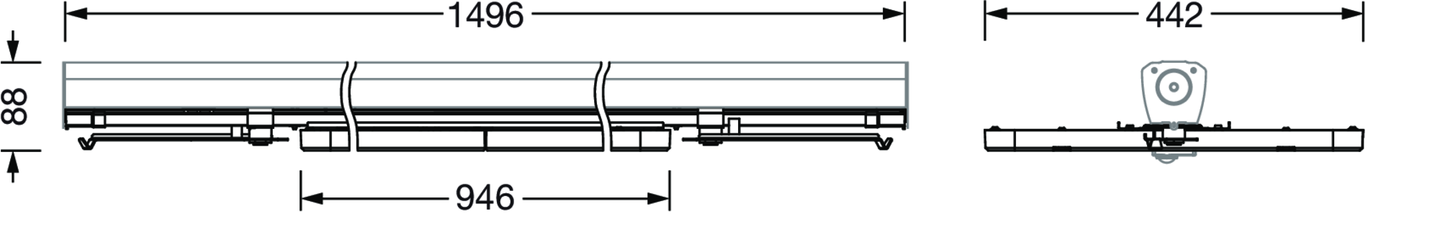

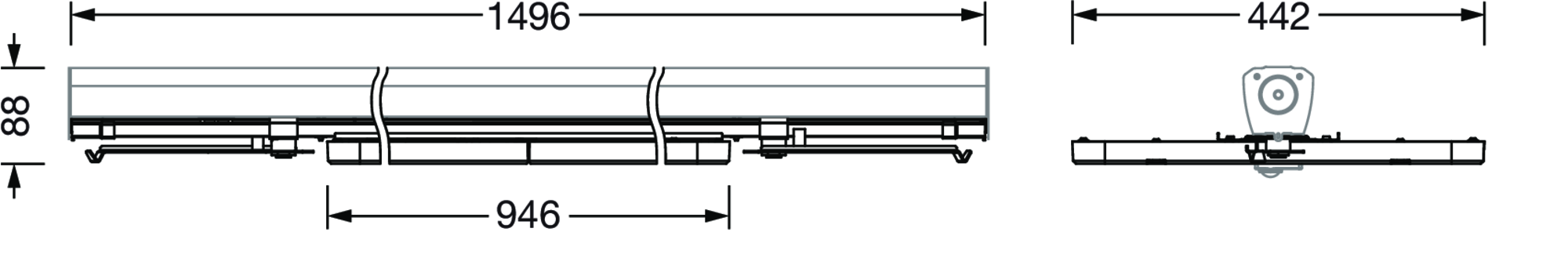

high bay luminaire Highbay 11 for Modario® trunking rail maxi; direct symmetric wide distribution, light control with lens of PMMA; UGR ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20); luminous flux: 36.000lm; light colour: 840, colour temperature: 4000K, MacAdam ≤ 2 SDCM (initial), colour rendering: CRI > 80; luminous efficacy: 202,6lm/W; rated service life: 100.000h (L95/B50) at AT= 25°C; control: DALI 2; luminaire connection: plug, 5-pole, with phase selectionmains connection: 230..240V, AC 50/60Hz; connected load: 177,7W; protection rating (complete): IP64; insulation class (complete): insulation class I (protective earthing); protection symbol: D; impact resistance: IK07; certification: CE, ENEC, VDE, UKCA; internal wiring halogen-free; luminaire corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry; LABS conformity tested according to VDMA 24364:2018-05; housing frame of high-performance plastic PA6, matt traffic white (RAL 9016); cover of PMMA; fixing on rail side of steel, galvanised, white; blank cover of PC, traffic white (RAL 9016); dimension (LxWxH): 1.496 x 442 x 72mm; permissible operating ambient temperature: -40..+55°C (reducing of maximum allowable ambient temperature of 5°C with ceiling mounting); packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

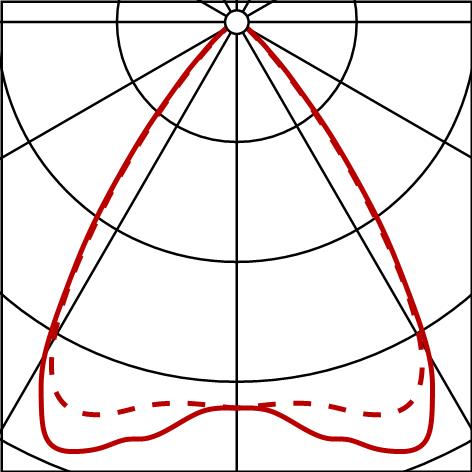

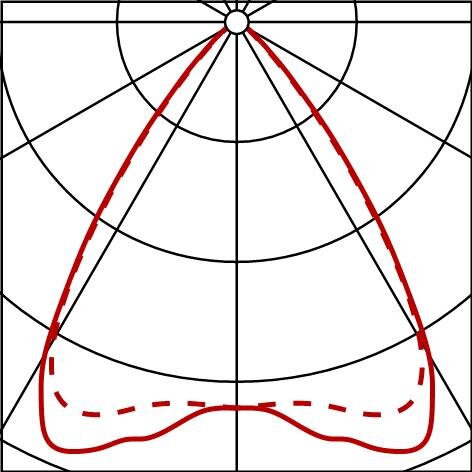

Photometric report / planning data
HB11/Mod-mx
wd,36000lm840,DA2
Lamps: 1x LED
Order No.: 51HN12DB4QMA
