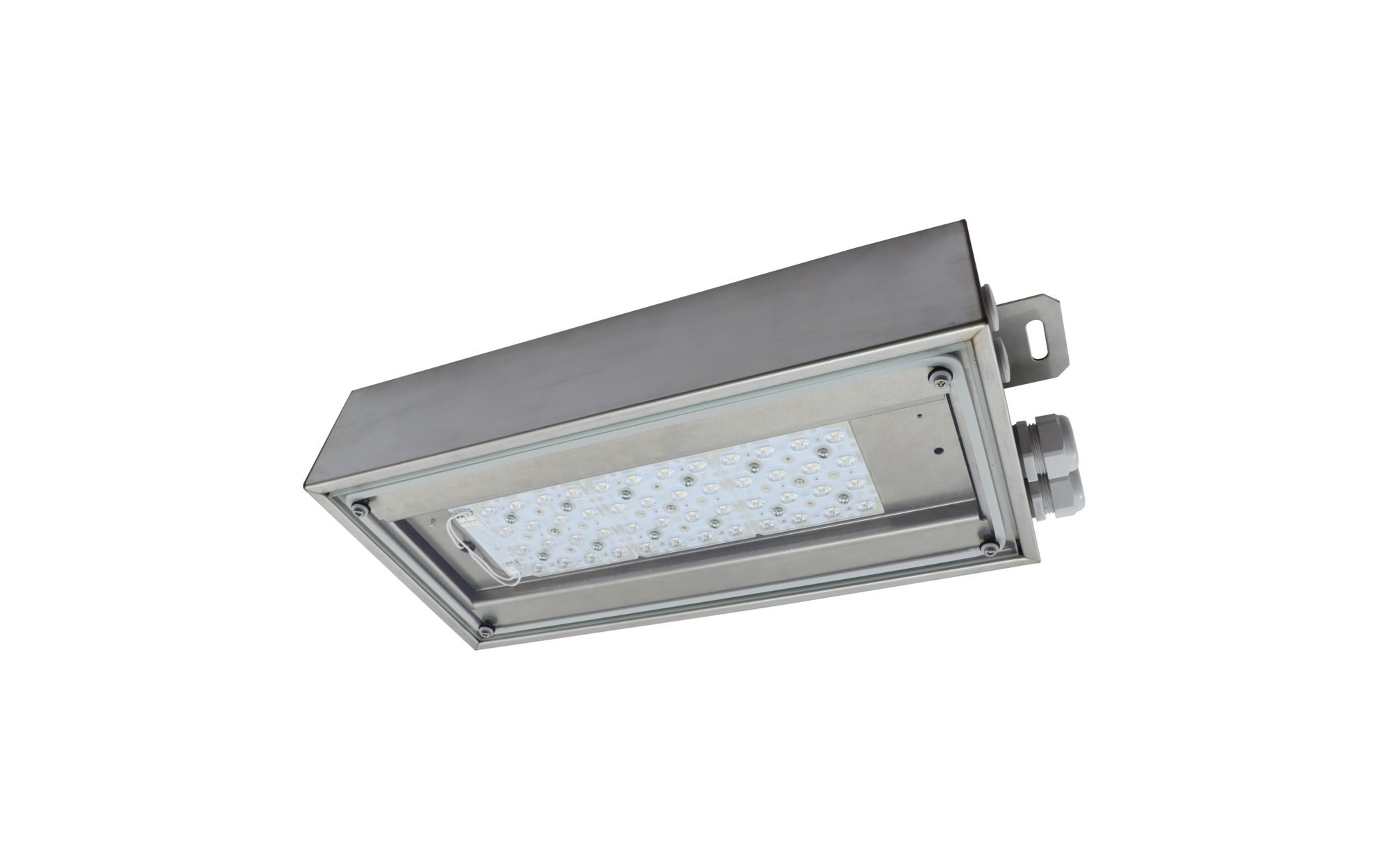

Article tunnel luminaire
Product name TL40
Rated luminous flux 8540lm
Luminous efficacy 153lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Rated input power 56W
Service life 100000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 6.0kg
TL40, tunnel luminaire, primary optical cover: cover panel, of toughened safety glass, non-reflecting, transparent, light distribution: S, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, 16-pole, max. 16mm², High Power LED, rated luminous flux: 8.540lm, luminous efficacy: 153lm/W, light colour: 740, colour temperature: 4000K, control gear: DALI, with terminal, 16-pole, max. 16mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 56W, housing, of stainless steel 1.4404 (AISI316), etched and passivated, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, impact resistance: IK09, permissible operating ambient temperature: -35..+25°C, packaging unit: 1 piece
