sensor PE1

Close
Order No.: 5LZ912600
Remember articleRemember article

Article sensor
Product name DALI2
Protection rating IP54
Weight 0.2kg

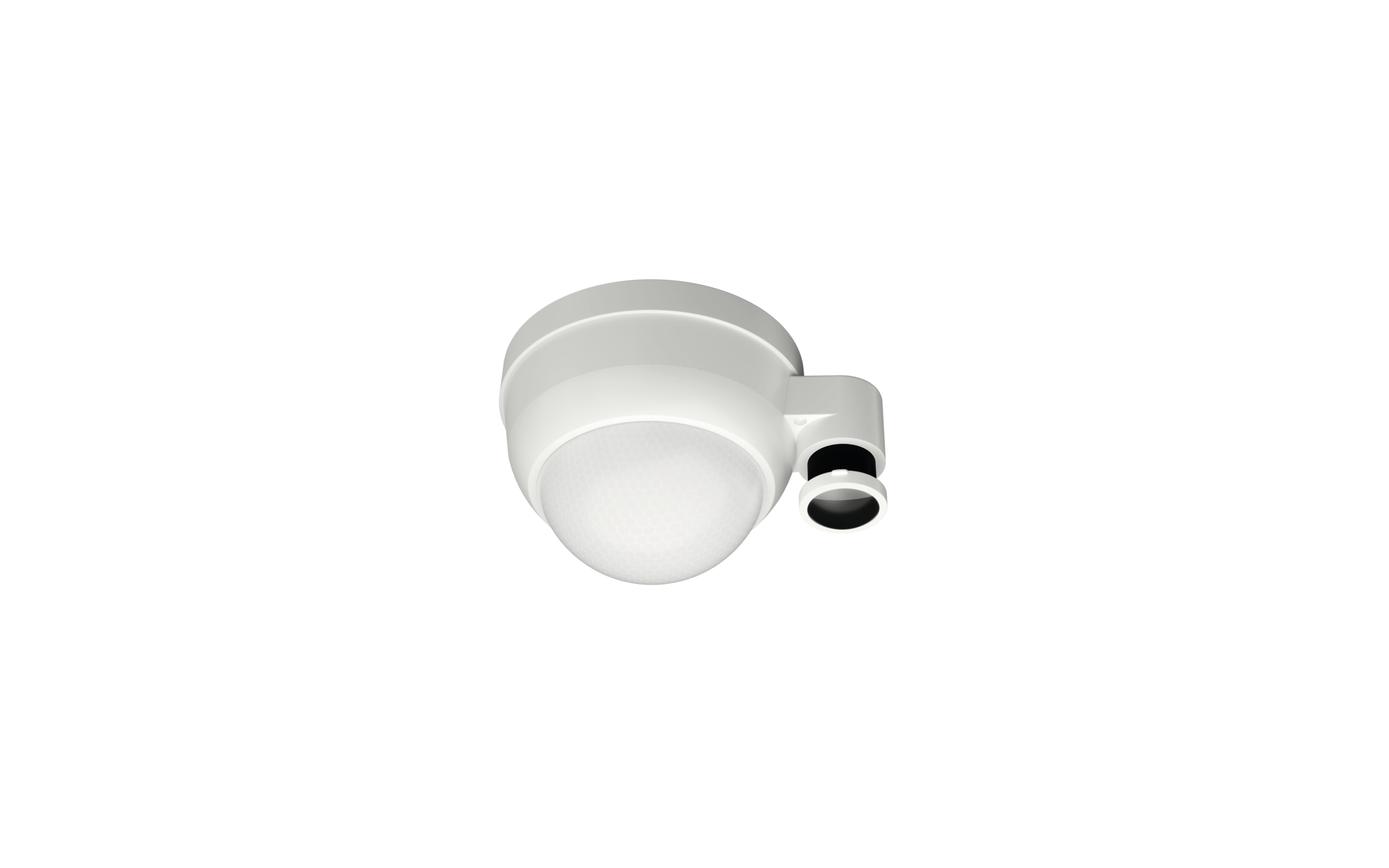

DALI2sensor PE1, slave, local control - self-sufficient standalone sensors, central control - connection to lighting or building management, dimmable, installation type: surface-mounted, installation location: to the ceiling, of plastic, protection rating (complete): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, 1 x PIR movement sensor, 1 x 1 x light sensor, 1 x DALI-2, 1 x status LED, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family Siteco Connect 11, SITECO Connect 22
Product type sensor
Product name DALI2
Order No. 5LZ912600

Control

Certificates, Standards

Protection rating IP54
Insulation class insulation class II (safety insulation)
Temperature range (operation) -25..+50°C
Certification, designation CE

Material, Colour

housing plastic, pure white (RAL 9010)
Colour specification pure white (RAL 9010)

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Mounting height 5..14m
Supplement only suitable for use in indoor areas

Dimensions, Weight

Width 125mm
Diameter 100mm
Height 76mm
Weight 0.2kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°

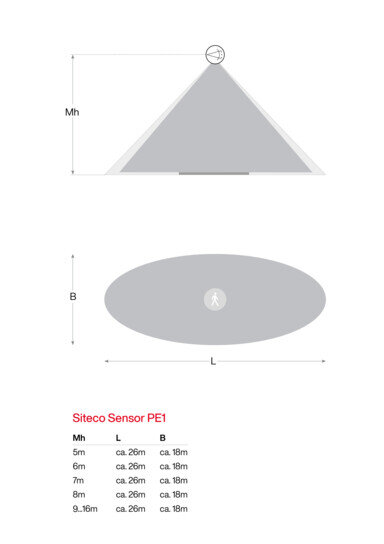

Detection range max. 30x19m
Option Individual sensitivity adjustment per PIR sensor
Feature ellipsoid detection area

1x light sensor
Illuminance 0..4095 Lux
Option application-oriented light measurement via mechanically adjustable telescopic light sensor for mounting heights of 5..16m

Outputs

1x DALI-2
Connection screw terminal, 2-pole, max. 2.5mm²
System current DALI current 7mA

System family
Siteco Connect 11, SITECO Connect 22

Product type
sensor

Product name
DALI2

Order No.
5LZ912600

Protection rating
IP54

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-25..+50°C

Certification, designation
CE

housing
plastic, pure white (RAL 9010)

Colour specification
pure white (RAL 9010)

Mounting method, mounting location
surface-mounted, to the ceiling

Mounting height
5..14m

Supplement
only suitable for use in indoor areas

Width
125mm

Diameter
100mm

Height
76mm

Weight
0.2kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
max. 30x19m

Option
Individual sensitivity adjustment per PIR sensor

Feature
ellipsoid detection area

1x light sensor

Illuminance
0..4095 Lux

Option
application-oriented light measurement via mechanically adjustable telescopic light sensor for mounting heights of 5..16m

1x DALI-2

Connection
screw terminal, 2-pole, max. 2.5mm²

System current
DALI current 7mA
