Licross®, symmetric narrow distribution, Application area area
Close
Article luminaire insert
Product name Licross®
Lamp LED
Rated luminous flux 310lm
Luminous efficacy 80lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Rated input power 3.9W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP40
Impact resistance IK06
Weight 0.5kg

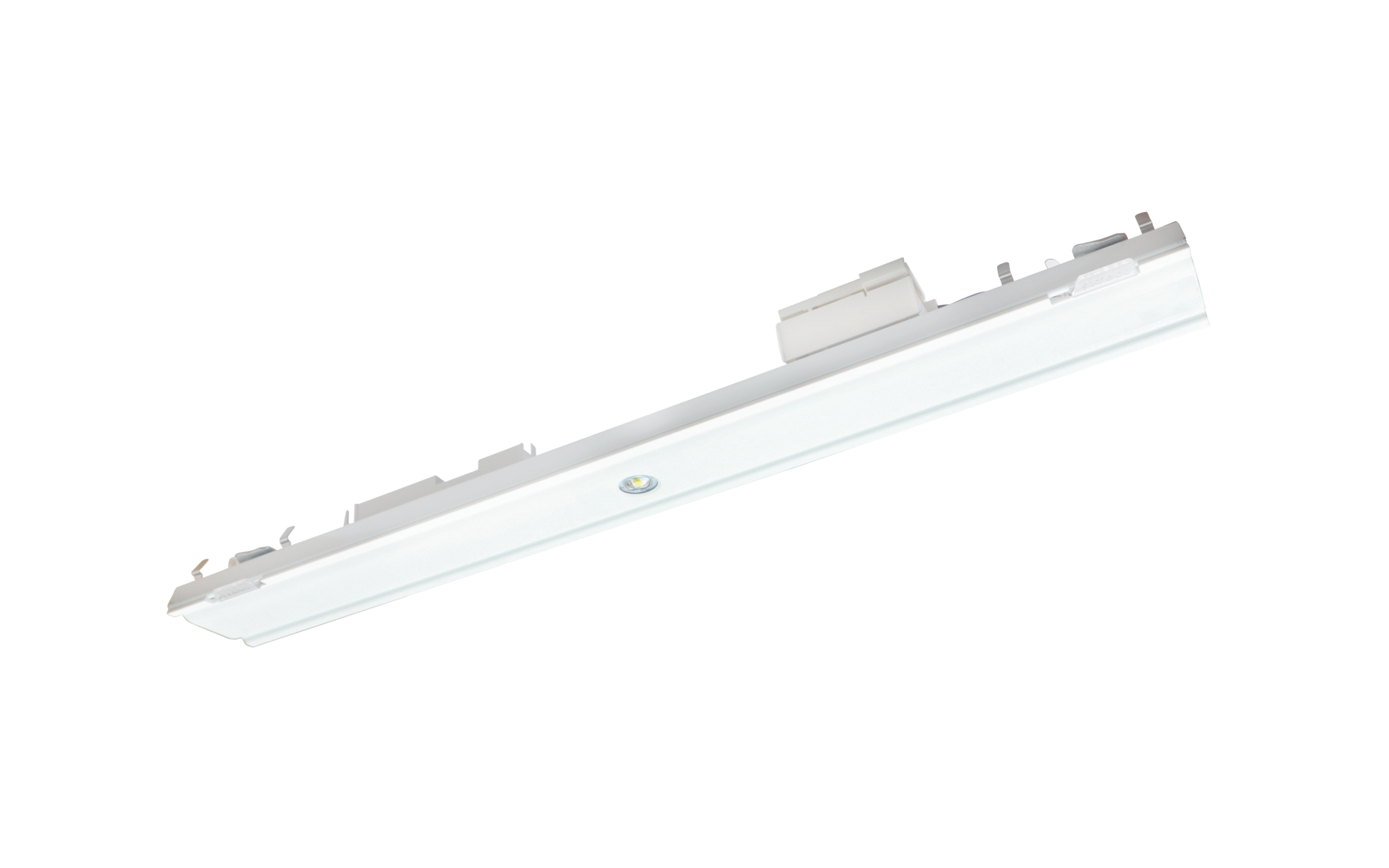

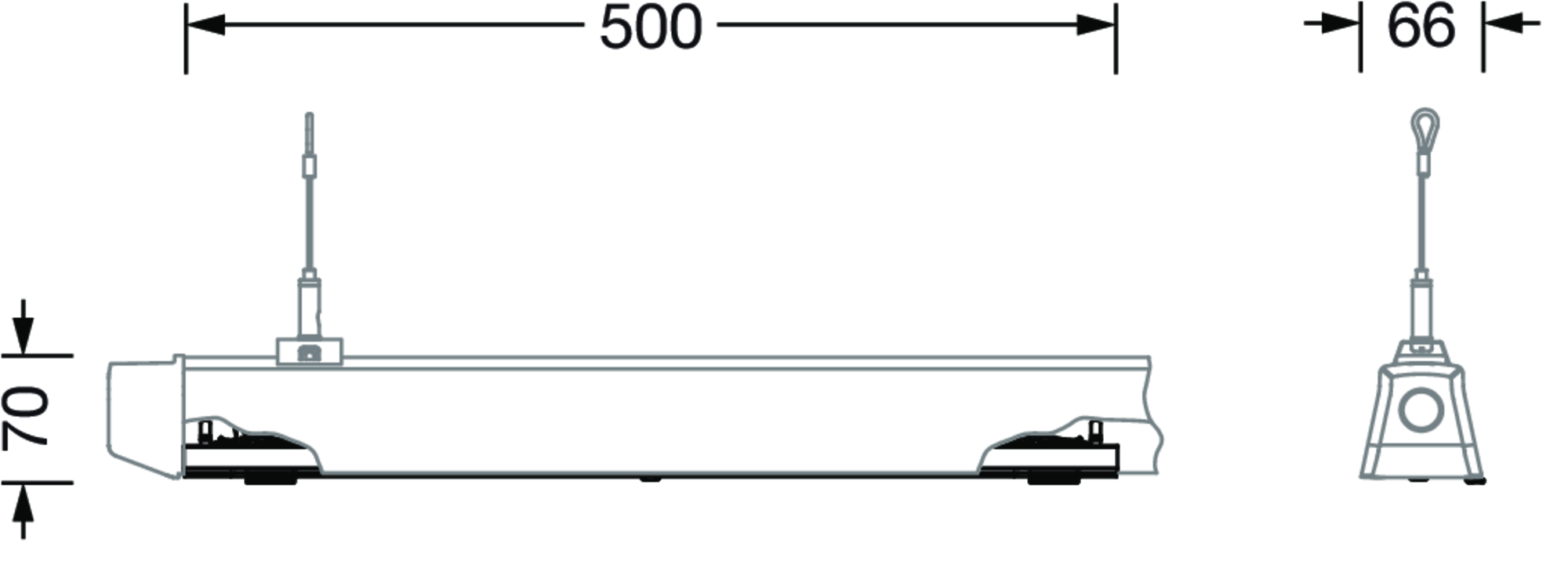

Licross®, luminaire insert, of sheet steel, coil coated, white, length: 500mm, width: 59mm, height: 60mm, mounting height: 7..17m, emergency light element,LED rated luminous flux: 310lm, light colour: 740, control gear: CEAG, with plug, 6-pole, with phase selection, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 3.9W, internal wiring halogen-free, for trunking rail, 9..14-core, for emergency light function, supply monitoring module CEAG, with address switch, choice between two emergency light lines via tool-free moving of contact pin prior to installation in trunking rail, primary light control with lens, of PMMA, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, for area, compatible with all CEAG STAR technology systems (ZB-S, DG-S (DualGuard-S), LP-STAR, AT-S+), protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D if used in an environment without relevant dust loads, impact resistance: IK06, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

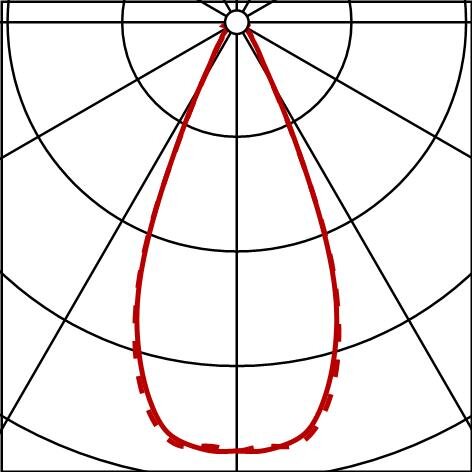

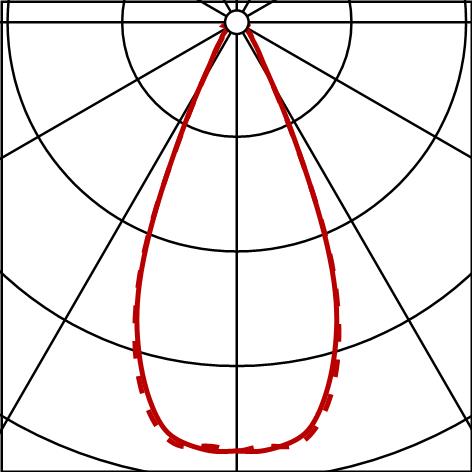

Photometric report / planning data
Lic
LI,nrrw,310lm740,CEAG,wh
Lamps: 1x LED
Ordercode: 56TL117C4X31
