Licross®, multi adapter

Close
Ordercode: 56TP1M0C0ZV00190XX
Remember productRemember product

Article rail insert
Product name Licross®
Protection rating IP64
Weight 0.8kg

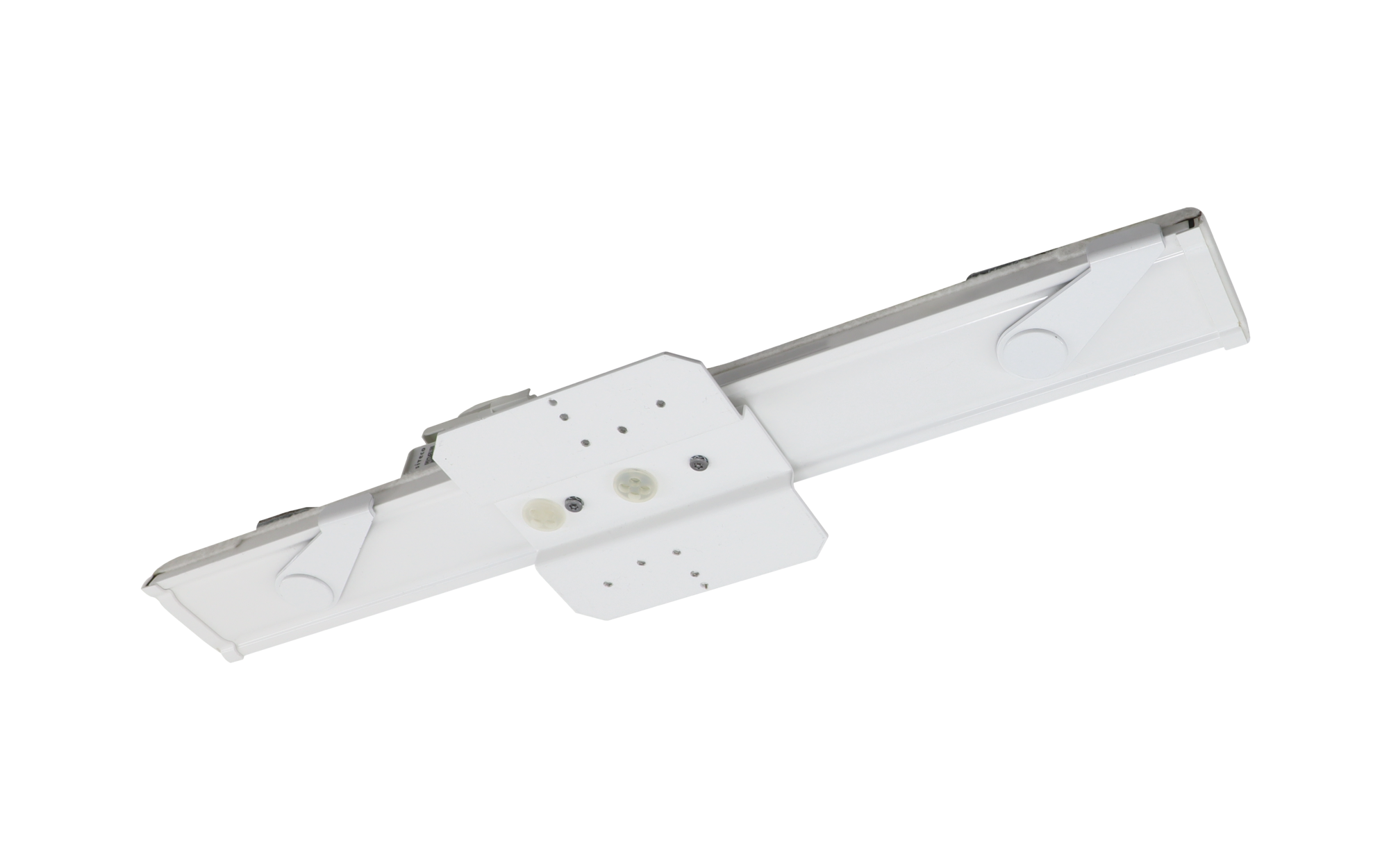

Licross®, rail insert, adapter,with plug, 5-pole, with phase selection, mains connection: 230V, AC, 50/60Hz, terminal,5-pole, max. 2.5mm², multi adapter, of aluminium, coated, white, length: 500mm, width: 124mm, height: 68mm, multifunctional insert, protection rating (complete): IP64, insulation class (complete): insulation class I (protective earthing), certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

System family Licross®
Product type rail insert
Product name Licross®
Order No. 56TP1M0C0ZV00190XX

Supplement

Certificates, Standards

Protection rating IP64
Insulation class insulation class I (protective earthing)
Certification, designation CE

Material, Colour

multi adapter aluminium, coated, white, for IP64 protection rating
Colour specification white

Mounting

Mounting height object related (mounting location without light from other sources)

Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 230V, 50/60Hz, AC

Dimensions, Weight

Length 500mm
Width 124mm
Height 68mm
Weight 0.8kg

System family
Licross®

Product type
rail insert

Product name
Licross®

Order No.
56TP1M0C0ZV00190XX

Protection rating
IP64

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

multi adapter
aluminium, coated, white, for IP64 protection rating

Colour specification
white

Mounting height
object related (mounting location without light from other sources)

Connection
plug, 5-pole, with phase selection

Nominal voltage
230V, 50/60Hz, AC

Length
500mm

Width
124mm

Height
68mm

Weight
0.8kg
