Ordercode: 51TP13CN4DXR

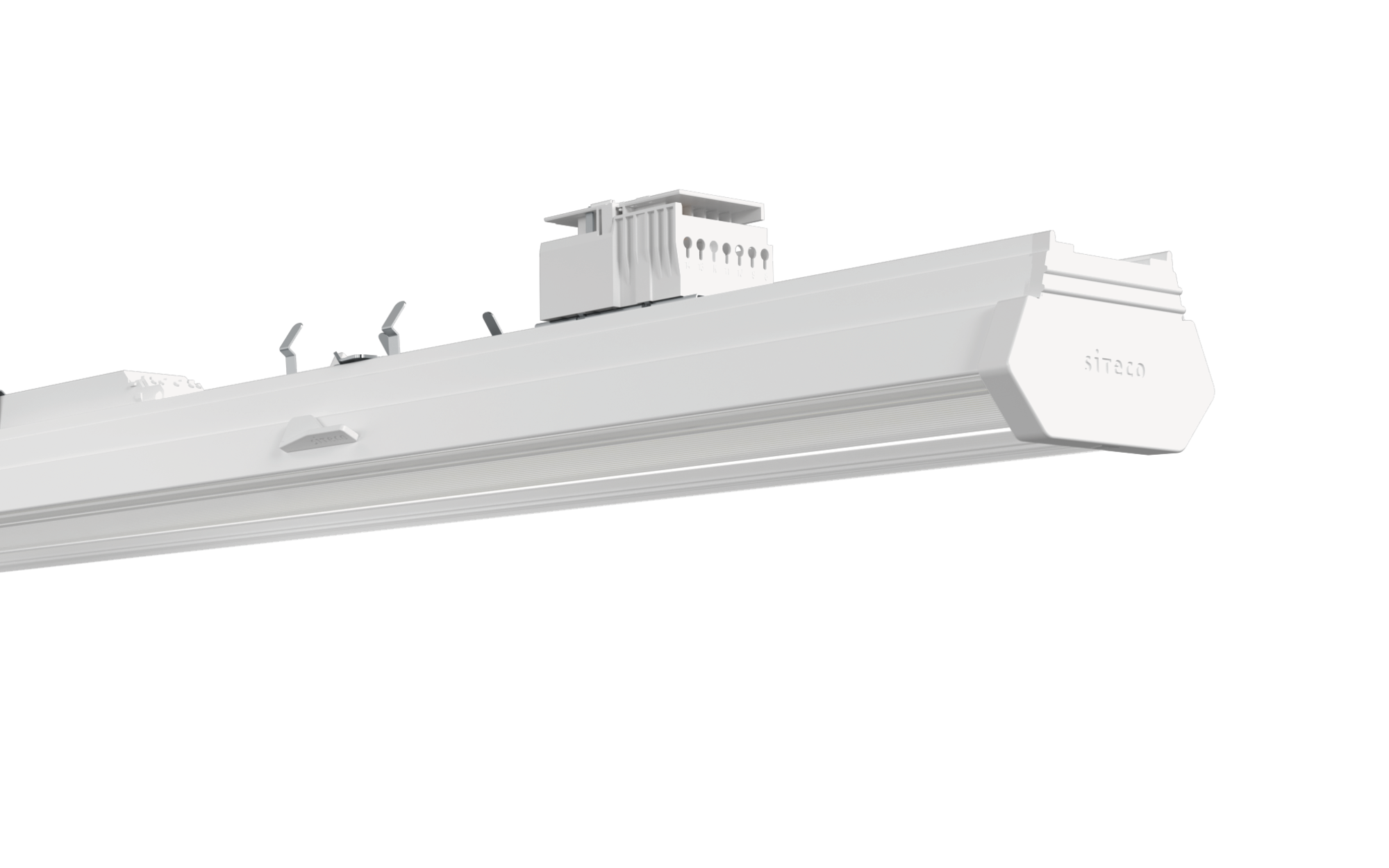

Article luminaire insert
Product name Licross® 11 Protected HO
Lamp LED
Rated luminous flux 13280lm
Luminous efficacy 174lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Pnom begin service life 76
Pnom end service life 86
Service life 70000h (L100/B50) at AT = ta max
Protection rating IP64
Impact resistance IK06
Weight 3.2kg

Licross® 11 Protected HO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 90mm, height: 101mm, LED rated luminous flux: 13.280lm, light colour: 840, control gear: ON/OFF Multilumen, CLOi, control gear: ECG Multilumen, with plug, 3-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 76W, end of service life: 86W, halogen-free wiring, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP64, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D if used in an environment with conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: -35..+40°C, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Product details


Key data

Product type luminaire insert
Product name Licross® 11 Protected HO
Order No. 51TP13CN4DXR


Lighting technology

Cover cover

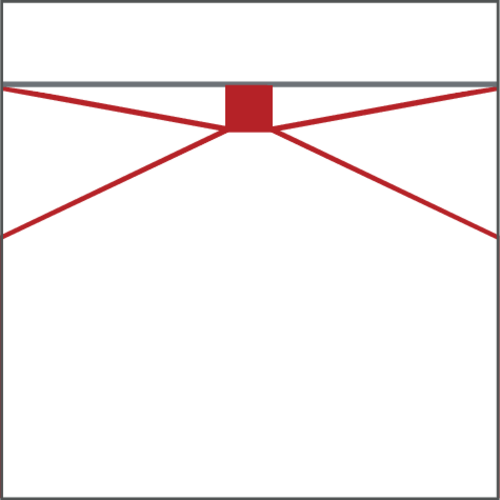

Beam angle extremely narrow distribution
Symmetry symmetric
Light emission direct distribution


Lamps

Lamps with LED
Rated luminous flux 13280lm
Luminous efficacy 174lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power begin service life 76
Rated input power end service life 86
Supplement halogen-free wiring


Operating device

Control gear ECG Multilumen
Control ON/OFF Multilumen, CLOi


Certificates, Standards

Protection rating IP64
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment with conductive dust loads with corresponding accessories
Temperature range (operation) -35..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Certification, designation CE, ENEC, VDE, UKCA


Material, Colour

Licross® LED insert sheet steel, galvanised, coil coated, white
Colour specification white
Cover cover of PMMA


Mounting

Mounting method, mounting location slip-in mounting, in the Licross® trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for indoor use


Electrical connection

Connection plug, 3-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC


Dimensions, Weight

Length 1500mm
Width 90mm
Height 101mm
Weight 3.2kg


Service life

Rated service life 70000h (L100/B50) at AT = ta max

Product type
luminaire insert

Product name
Licross® 11 Protected HO

Order No.
51TP13CN4DXR

Cover
cover

Beam angle
extremely narrow distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
13280lm

Luminous efficacy
174lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power begin service life
76

Rated input power end service life
86

Supplement
halogen-free wiring

Control gear
ECG Multilumen

Control
ON/OFF Multilumen, CLOi

Protection rating
IP64

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Protection symbol
D if used in an environment with conductive dust loads with corresponding accessories

Temperature range (operation)
-35..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05

Certification, designation
CE, ENEC, VDE, UKCA

Licross® LED insert
sheet steel, galvanised, coil coated, white

Colour specification
white

Cover
cover of PMMA

Mounting method, mounting location
slip-in mounting, in the Licross® trunking rail

Arrangement
single/continuous arrangement

Supplement
only suitable for indoor use

Connection
plug, 3-pole, with phase selection

Nominal voltage
220..240V, 50/60Hz, AC

Length
1500mm

Width
90mm

Height
101mm

Weight
3.2kg

Rated service life
70000h (L100/B50) at AT = ta max

Photometric report / planning data

Photometric report / planning data

Lic11Pr
e.nrrw,13280lm840,MLCi,IP64
Ordercode: 51TP13CN4DXR
