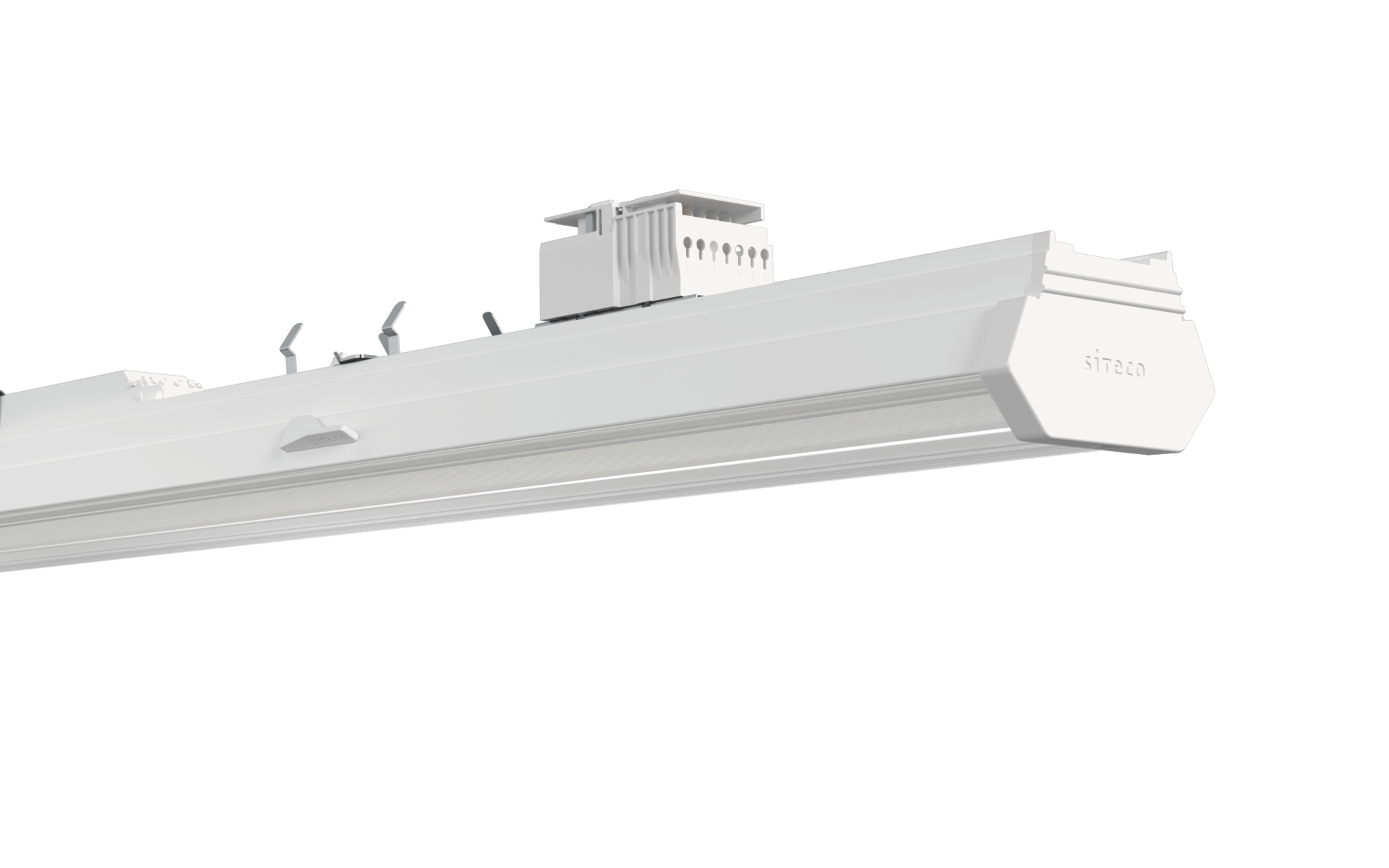

Licross® 11 Protected HO, with lever catch, symmetric narrow distribution, IP50, AC

Ordercode: 51TS11VN4DXR

Article luminaire insert
Product name Licross® 11 Protected HO
Lamp LED
Rated luminous flux 13190lm
Luminous efficacy 169lm/W
Colour temperature 4000K
Colour rendering CRI > 80
P_nom begin service life 78
P_nom end service life 84
Service life 50000h (L100/B50) at AT = 35°C
Protection rating IP50
Impact resistance IK06
Weight 2.8kg

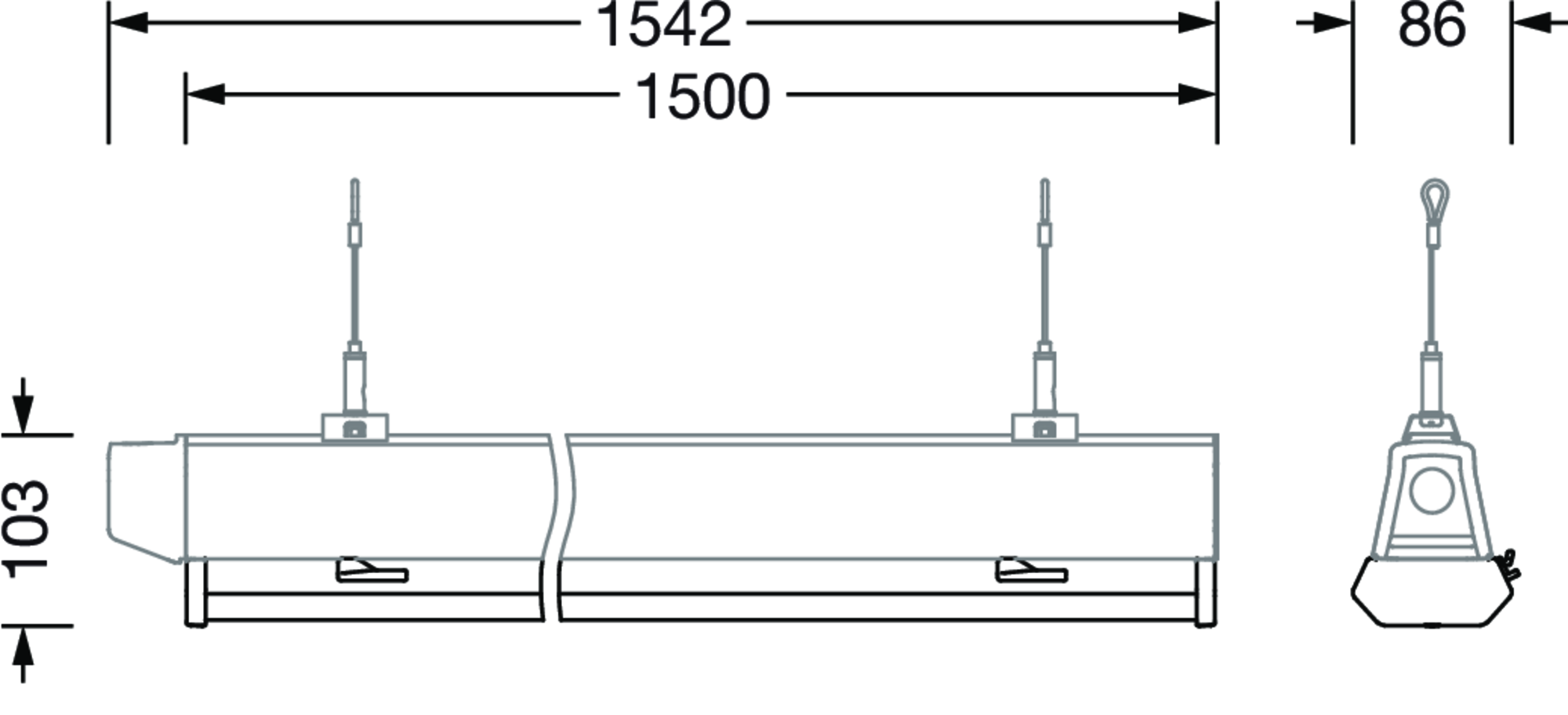

Licross® 11 Protected HO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 90mm, height: 101mm, LED rated luminous flux: 13.190lm, light colour: 840, control gear: DALI 2, CLO, control gear: ECG DALI, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, halogen-free wiring, primary optical cover: cover, of PMMA, light emission: direct with ceiling illumination distribution, primary light characteristic: symmetric, protection rating (complete): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D if used in an environment with non-conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: -25..+35°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
