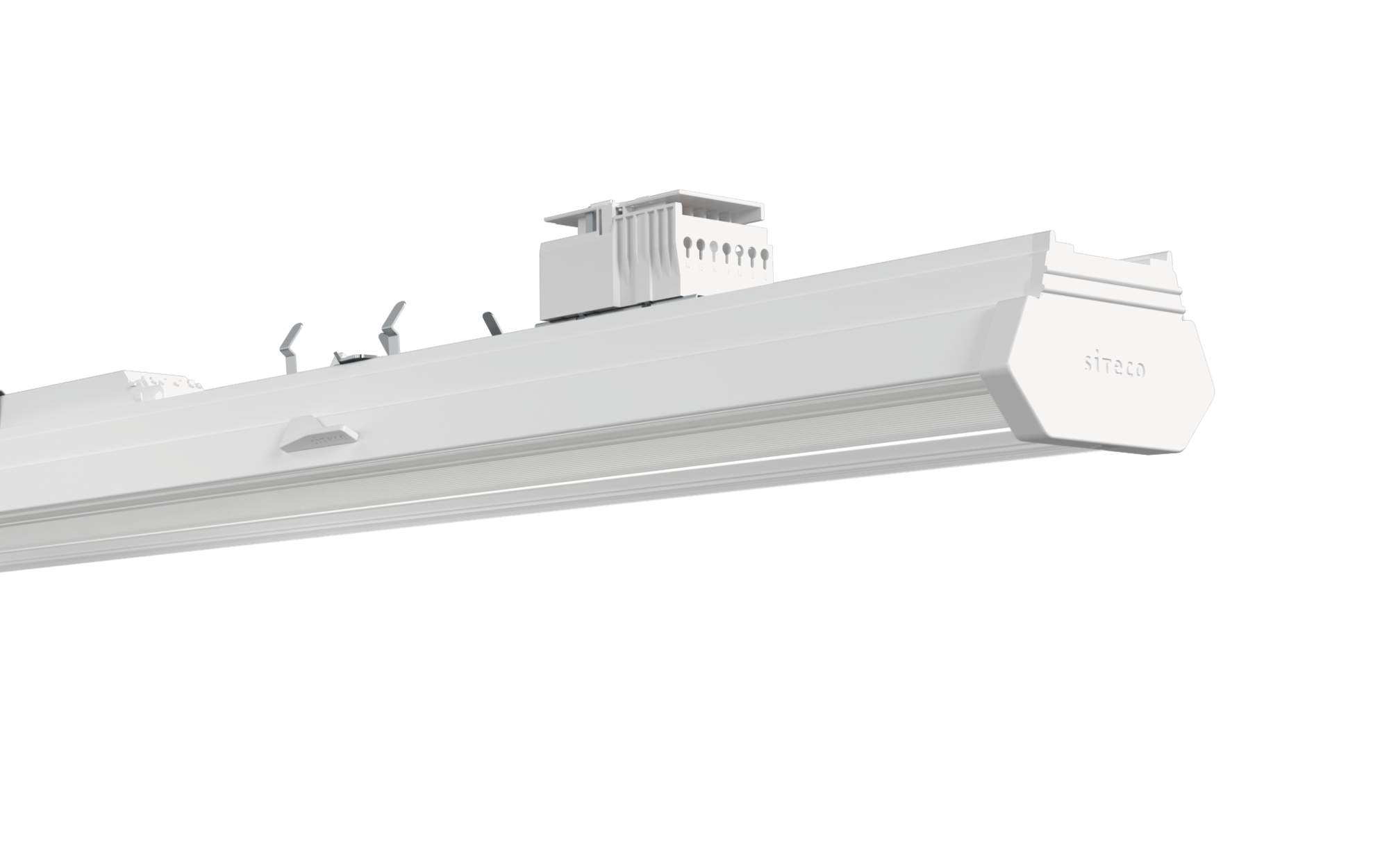

Licross® 11 Protected MO, with lever catch, symmetric wide distribution, IP50, AC, with self-test function according to 60598-2-22, 2-rod battery, charging phase on L' (wire number 4), with self-contained supply, 3h
Close
Article luminaire insert
Product name Licross® 11 Protected MO
Lamp LED
Rated luminous flux 8470lm
Luminous efficacy 141lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 60W
Service life 100000h (L80/B50) at AT = 25°C
Protection rating IP50
Impact resistance IK06
Weight 4.0kg

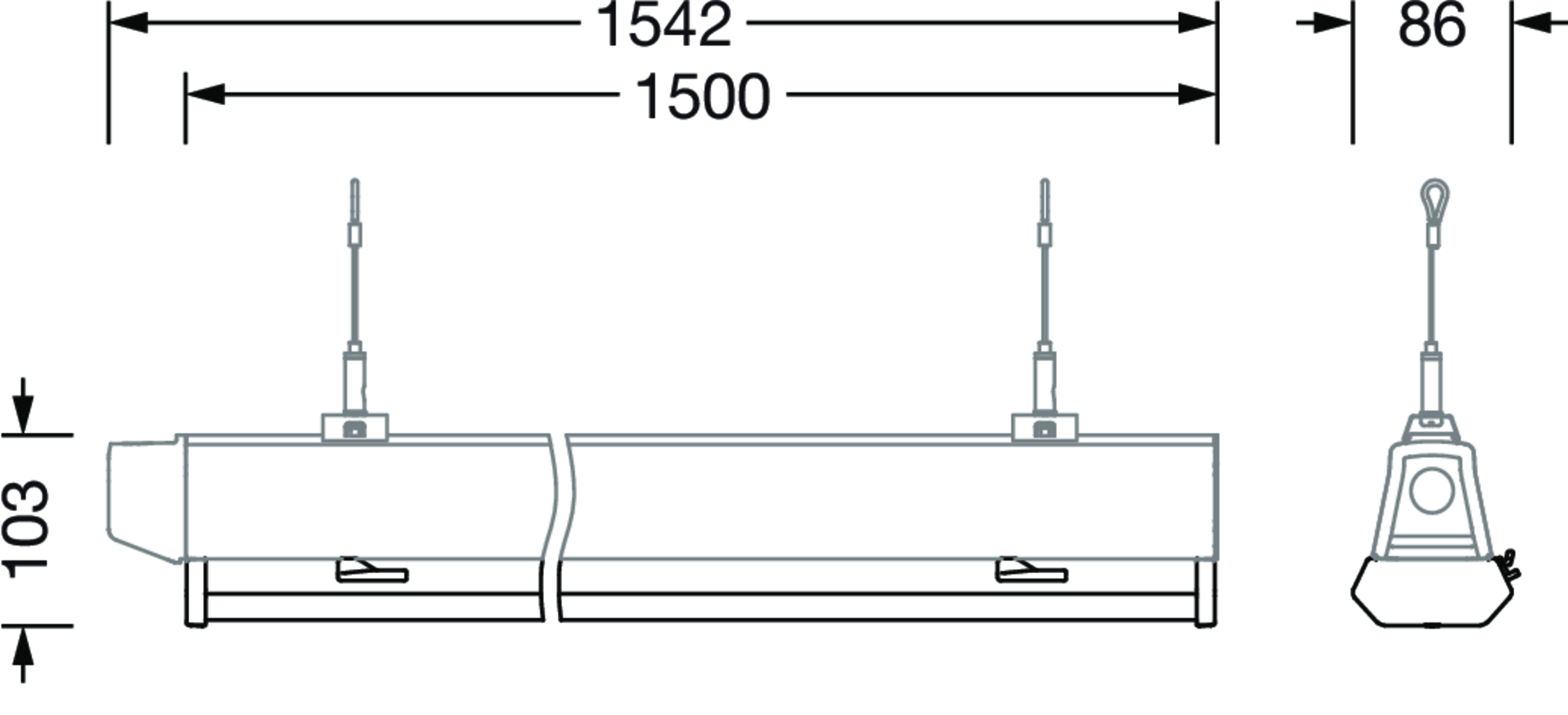

Licross® 11 Protected MO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 90mm, height: 101mm, LED rated luminous flux: 8.470lm, light colour: 840, control gear: DALI 2, control gear: ECG DALI, with plug, 6-pole, with phase selection, for trunking rail, 9 or 11-core, mains connection: 220..240V, AC, 50/60Hz, rated input power: 60W, for trunking rail, 9-/11-core, halogen-free wiring, for emergency light function, converter,control gear: single battery element, battery: LiFeP04, 9Ah, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D if used in an environment with non-conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: +5..+35°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details
Photometric report / planning data
Lic11Pr
wd,8470lm840,DA2,IP50,L1500,wh,3
Ordercode: 51TS12DN48XF3S4
